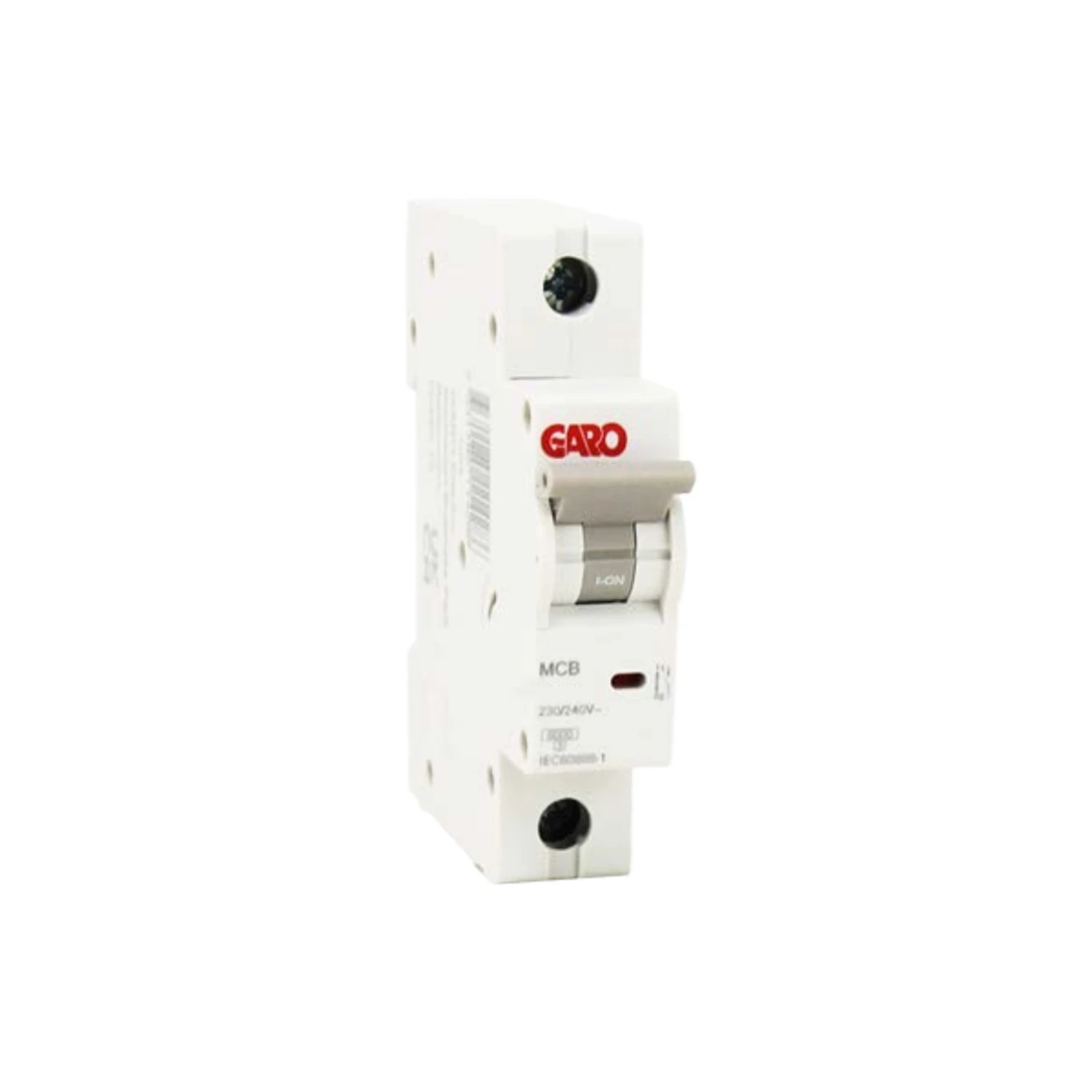

Garo MCB 32A Type C 6kA 1P

Photo is representative

Garo MCB 32A Type C 6kA 1P

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MCBGRC132
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.70

Gross price

£4.44

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole MCB from Garo rated 32A with a Type C tripping characteristic. DIN rail mount to EN 60715, 18mm wide — one module per pole.

Suited to circuits where Type C is specified, with a 6kA Icn breaking capacity covering standard residential and light commercial fault levels.

  • Rated current: 32A, Type C curve
  • Breaking capacity (Icn): 6kA
  • Voltage: 230/400V AC, 50/60Hz
  • Terminal cable range: 1–25mm², torque max 2.5Nm
  • Ambient operating temp: -25 to +55°C
  • Standard: EN 60898 / IEC 60898
Specifications

Rated Current

32A

Tripping Characteristic

Type C

Poles

1P

Rated Voltage

230/400V AC

Frequency

50/60 Hz

Breaking Capacity (Icn)

6kA

IP Rating

IP20

Overvoltage Category

III

Terminal Size

1–25mm², max 2.5Nm

Module Width

18mm

Height

82mm

Depth

75mm

Net Weight

0.33kg

Ambient Temperature

-25 to +55°C

Electrical Endurance

10,000 operations

Mechanical Endurance

20,000 operations

Mounting

DIN rail, EN 60715

Standards

EN 60898, IEC 60898

Documents

datasheet Garo Electrical Products MCBGRC132 Datasheet

Garo Electrical Products
