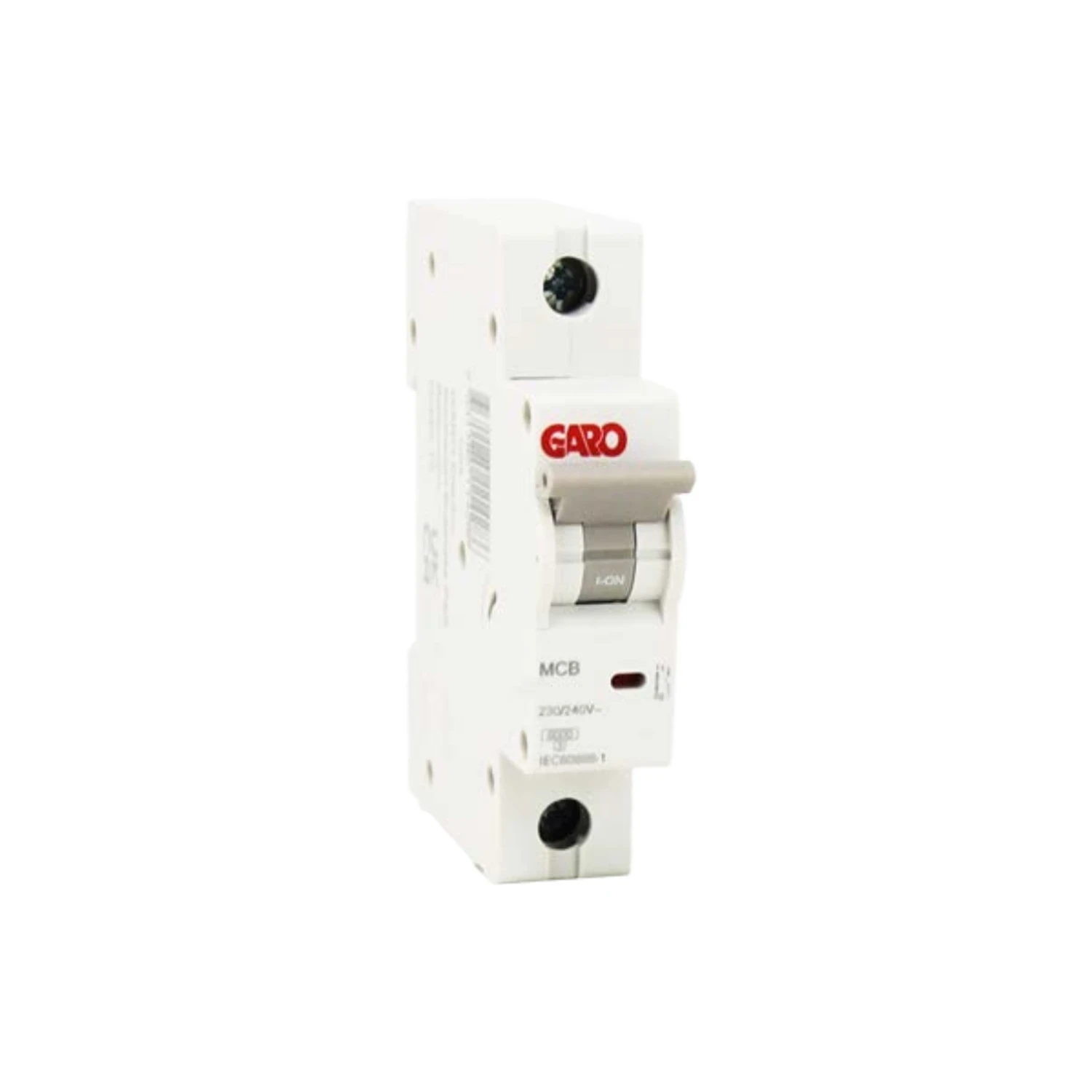

Garo MCB 63A Type C 6kA 1P

Photo is representative

Garo MCB 63A Type C 6kA 1P

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MCBGRC163
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £15.92

Gross price

£19.10

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole MCB from Garo. Rated 63A with a Type C tripping characteristic — suited to loads with moderate inrush. 6kA Icn short-circuit capacity.

Mounts on EN 60715 DIN rail. 18mm wide (1 module). Compliant with EN 60898 and IEC 60898.

  • Rated current: 63A
  • Breaking capacity Icn: 6kA
  • Voltage: 230/400V AC, 50/60Hz
  • Terminal: 1–25mm², max 2.5Nm
  • Operating temp: -25 to +55°C
Specifications

Rated Current

63A

Rated Voltage

230/400V AC

Frequency

50/60 Hz

Tripping Characteristic

Type C

Rated Short-Circuit Capacity (Icn)

6kA

Poles

1P

Mounting

EN 60715 DIN rail

Module Width

18mm

Height

82mm

Depth

75mm

Terminal Size

1–25mm², max 2.5Nm

IP Rating

IP20

Ambient Temperature

-25 to +55°C

Net Weight

0.33kg

Standards

EN 60898, IEC 60898

Documents

datasheet Garo Electrical Products MCBGRC163 Datasheet
