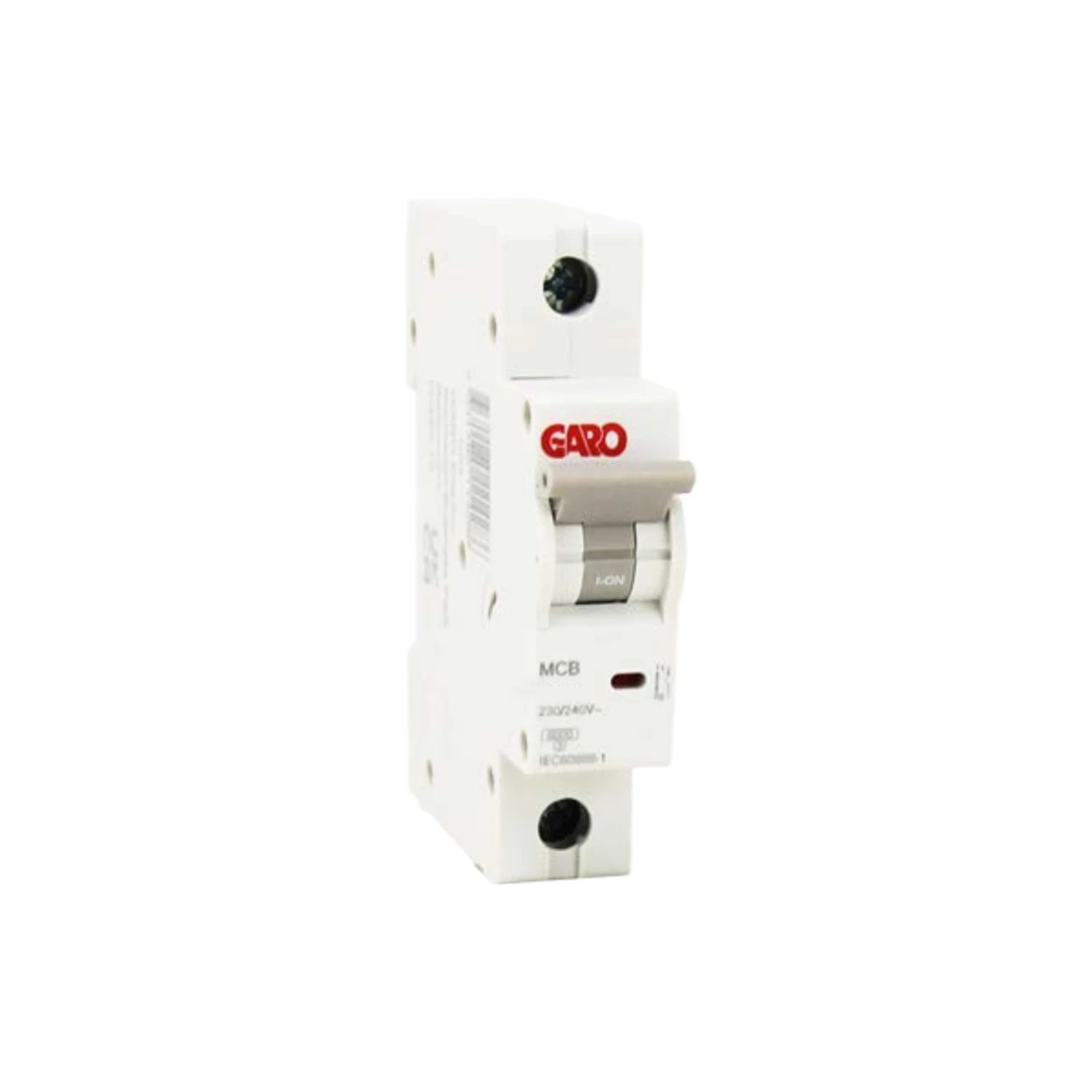

Garo MCB 6A Type C 6kA 1P

Photo is representative

Garo MCB 6A Type C 6kA 1P

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MCBGRC106
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.70

Gross price

£4.44

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SP MCB from Garo rated at 6A with a Type C tripping characteristic and 6kA short-circuit capacity. Suits AC distribution boards where Type C is specified for general commercial or mixed loads.

  • 230/400V AC, 50/60Hz
  • Terminals accept 1–25mm² conductors, max torque 2.5Nm
  • 18mm wide (1 module), DIN rail mount to EN 60715
  • IP20, overvoltage category III
  • Operating temp range -25 to +55°C
Specifications

Rated Current

6A

Rated Voltage

230/400V AC

Frequency

50/60 Hz

Tripping Characteristic

Type C

Rated Short-Circuit Capacity (Icn)

6kA

Poles

1P

Terminal Range

1–25mm²

Terminal Torque

2.5Nm max

Module Width

18mm per pole

Height

82mm

Depth

75mm

Net Weight

0.33kg

Degree of Protection

IP20

Overvoltage Category

III

Ambient Temperature

-25 to +55°C

Storage Temperature

-35 to +55°C

Electrical Endurance

10,000 operating cycles

Mechanical Endurance

20,000 operating cycles

Back-up Fuse

100A gG

DIN Rail Mounting

EN 60715

Standards

EN 60898, IEC 60898
