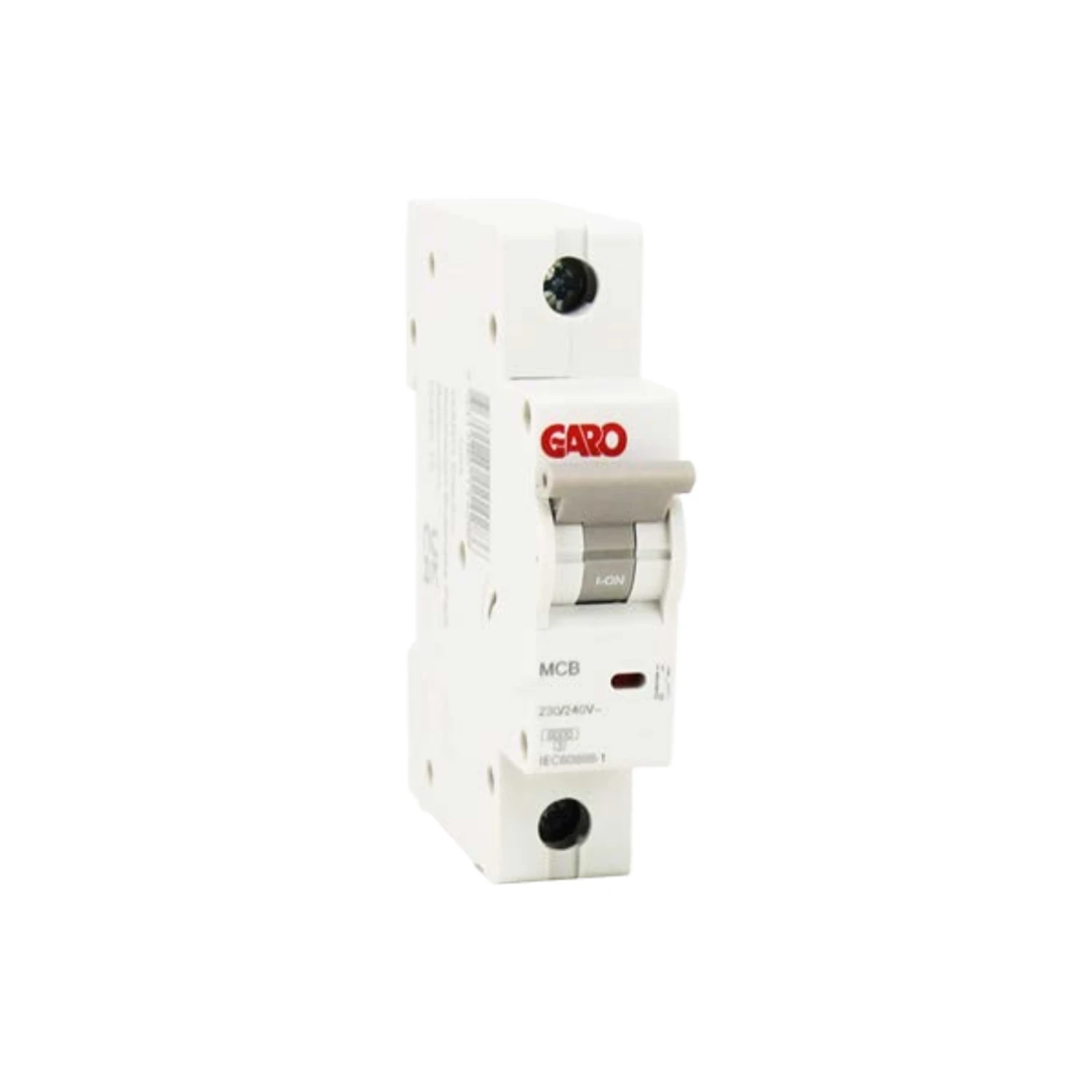

Garo MCB 25A Type C 6kA 1P

Photo is representative

Garo MCB 25A Type C 6kA 1P

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MCBGRC125
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.70

Gross price

£4.44

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SP MCB for overcurrent and short-circuit protection in single-phase AC distribution. Type C tripping characteristic suits general commercial and light industrial loads. Mounts on EN 60715 DIN rail at 18mm per pole.

  • 25A In, Type C curve, 6kA Icn
  • 230/400V AC, 50/60Hz
  • Terminals accept 1–25mm², max torque 2.5Nm
  • IP20, Overvoltage Category III
  • Back-up fuse: 100A gG
Specifications

Rated Current

25A

Rated Voltage

230/400V AC

Frequency

50/60 Hz

Tripping Characteristic

Type C

Rated Short-Circuit Capacity (Icn)

6kA

Poles

1P

Mounting

EN 60715 DIN rail

Module Width

18mm

Height

82mm

Depth

75mm

Terminal Size

1–25mm², max 2.5Nm

IP Rating

IP20

Overvoltage Category

III

Ambient Temperature

-25...+55°C

Back-up Fuse

100A gG

Electrical Endurance

10,000 operations

Mechanical Endurance

20,000 operations

Net Weight

0.33kg

Standards

EN 60898, IEC 60898

Documents

datasheet Garo Electrical Products MCBGRC125 Datasheet
