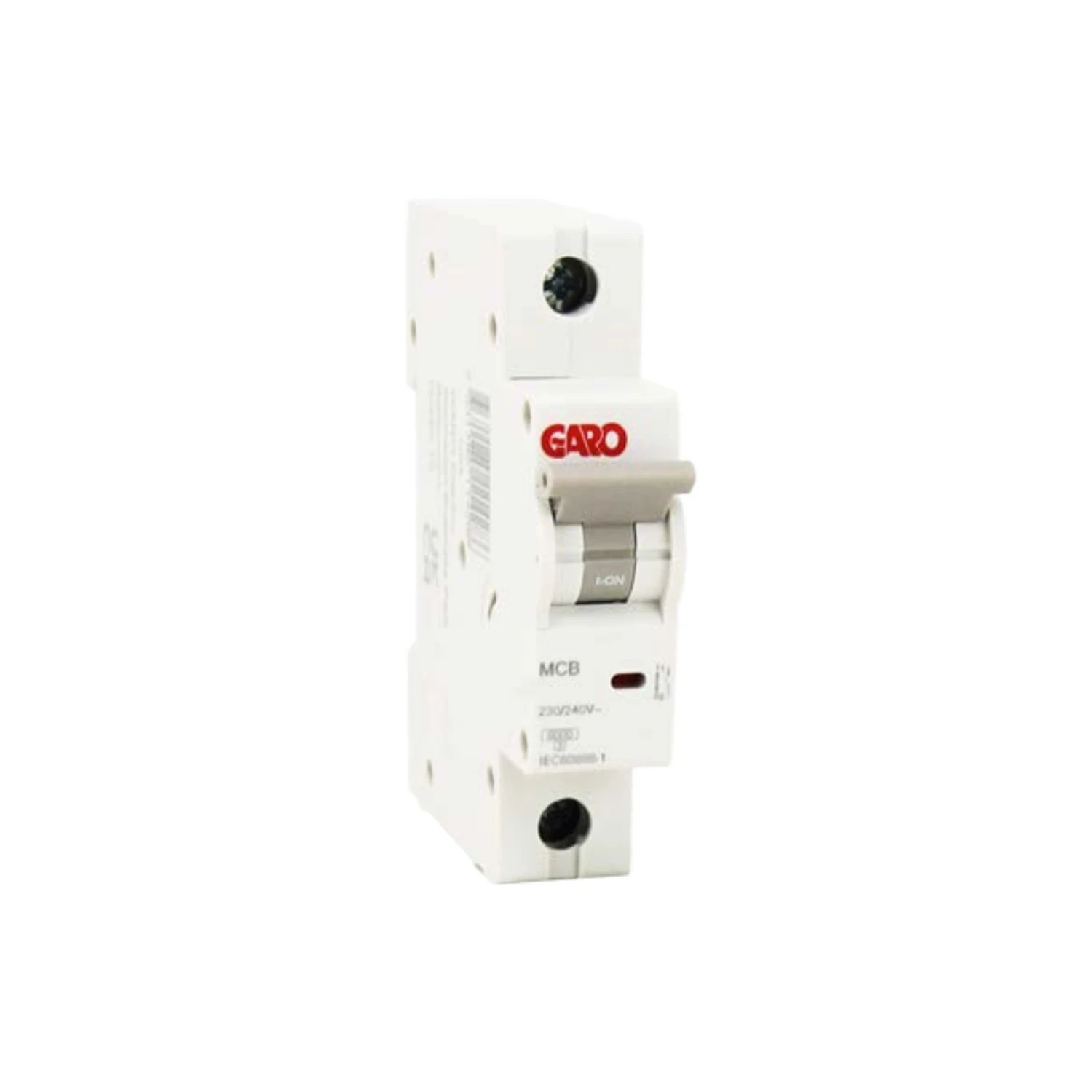

Garo MCB 50A Type C 6kA 1P

Photo is representative

Garo MCB 50A Type C 6kA 1P

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MCBGRC150
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £14.17

Gross price

£17.00

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole MCB from Garo. 50A Type C curve — suited to loads with higher inrush where a Type B would nuisance trip. Rated at 6kA Icn with a 100A gG back-up fuse requirement.

Mounts on EN 60715 DIN rail, 18mm wide (1 module). Terminals accept 1–25mm² with a max torque of 2.5Nm.

  • Rated current: 50A, Type C
  • Breaking capacity (Icn): 6kA
  • Voltage: 230/400V AC, 50/60Hz
  • IP20, Overvoltage Category III
  • Ambient operating temp: -25 to +55°C
Specifications

Rated Current

50A

Tripping Characteristic

Type C

Rated Short-Circuit Capacity (Icn)

6kA

Poles

1P

Rated Voltage

230/400V AC

Frequency

50/60Hz

Back-up Fuse

100A gG

Degree of Protection

IP20

Overvoltage Category

III

Terminal Capacity

1–25mm², max 2.5Nm

Module Width

18mm

Height

82mm

Depth

75mm

Net Weight

0.33kg

Ambient Temperature

-25 to +55°C

Mounting

EN 60715 DIN rail

Standards

EN 60898, IEC 60898
