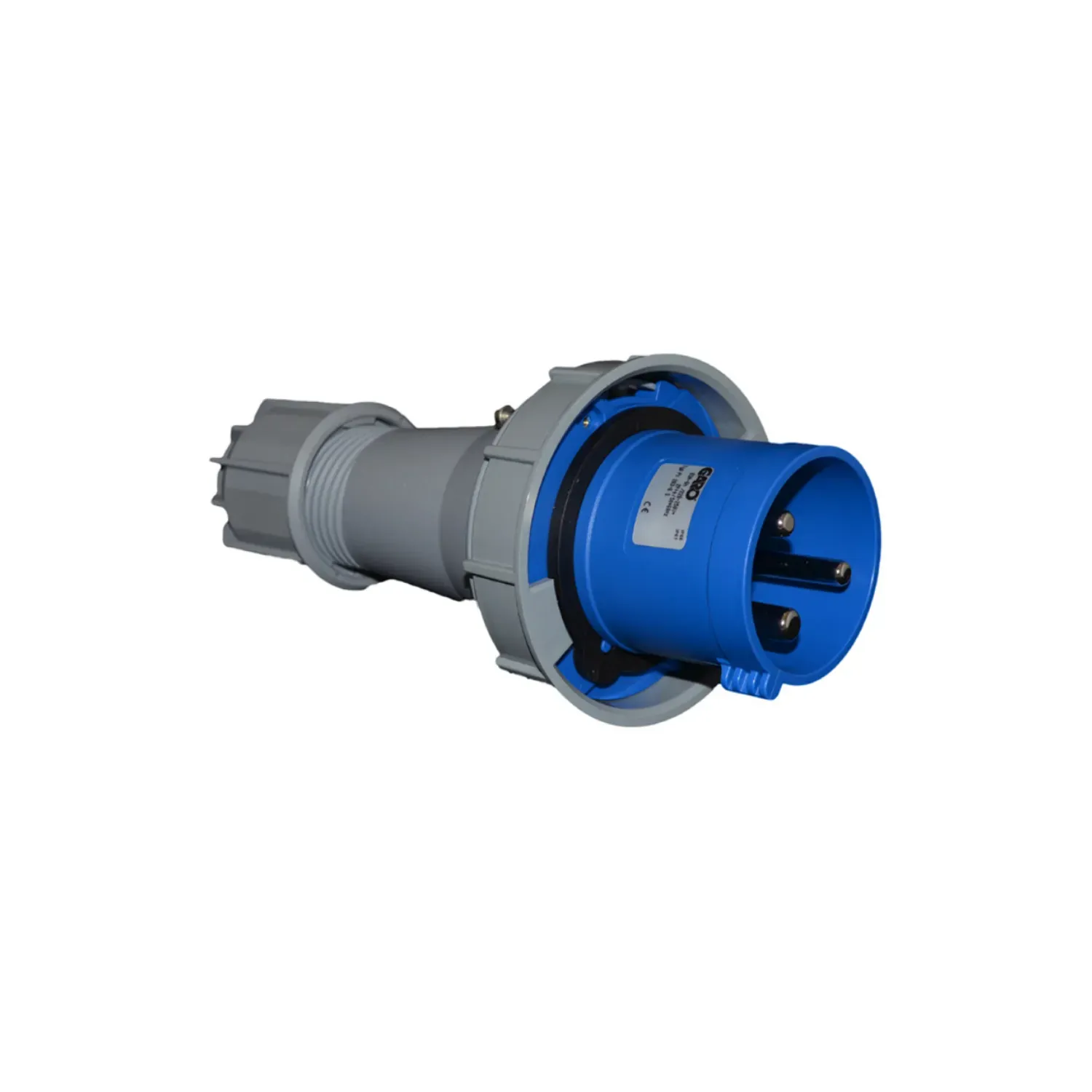

GARO PV2636S 63A 3P IP67 Watertight Industrial Plug 230V

Photo is representative

GARO PV2636S 63A 3P IP67 Watertight Industrial Plug 230V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code PV2636S
GTIN
Stock status: 5 in stock

priced individually

More arriving soon

Net price: £26.57

Gross price

£31.89

GARO PV2636S is a 63A 3-pole watertight industrial plug with full IP67 protection. Rated 200-250V, 50/60Hz. Designed to IEC 60309-2 standard with clock-position colour coding — earth socket fixed at 6 o’clock position eliminates misconnection. Accepts cable 6-16mm².

Key specs: - 63A rated, 3-pole + earth - IP67 watertight - 200-250V, 50/60Hz - IEC 60309-2 certified - Cable entry 6-16mm²

Specifications

Current Rating

63A

Poles

3P + E (2 pole + earth)

Operating Voltage

200-250V

Frequency

50/60Hz

IP Rating

IP67

Connectable Cable Size

6-16mm²

Clock Position

Position 6

Dimensions (a × b × K)

257 × 114 × 14.5-36mm

Weight

0.547kg

Standard

IEC 60309-2, IEC 60309-1, EN 60309-1, EN 60309-2, CEE17, VDE 0623, BS 4343

Compliance

LVD 2014/35/EU, EMC 2004/108/EU, RoHS 2011/65/EU

Optional Accessory

Cover TL63S
