GARO PV3166S Plug Top 16A 4P IP67 415V Industrial

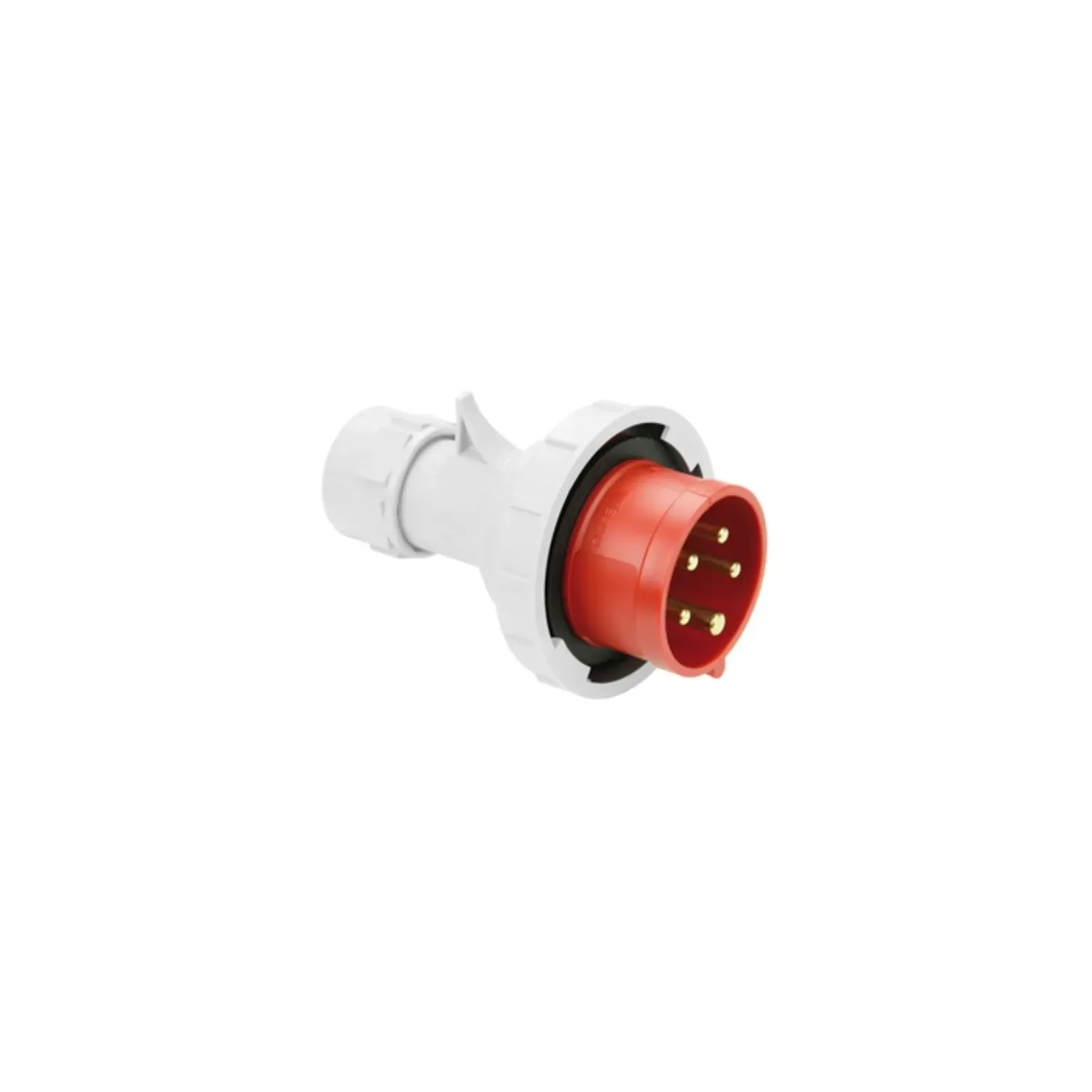

Photo is representative

GARO PV3166S Plug Top 16A 4P IP67 415V Industrial

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code PV3166S
GTIN
Stock status: 3 in stock

priced individually

Net price: £8.46

Gross price

£10.16

GARO PV3166S is a watertight industrial plug, 4-pole + earth configuration rated 16A. Designed for harsh environments with IP67 protection and clock position 6 colour coding per IEC 60309 standard.

  • Rated 16A, 400V, 50/60Hz
  • IP67 watertight
  • Cable size 1-2.5mm²
  • IEC 60309-2 certified
Specifications

Product Code

PV3166S

Current Rating

16A

Poles

4 (3-pole + Earth)

Operating Voltage

400V

Frequency

50/60Hz

IP Rating

IP67

Clock Position / Colour Code

6

Cable Size Range

1-2.5mm²

Dimension A

124mm

Dimension B

79mm

Weight

0.147kg

Standard

IEC 60309-2
