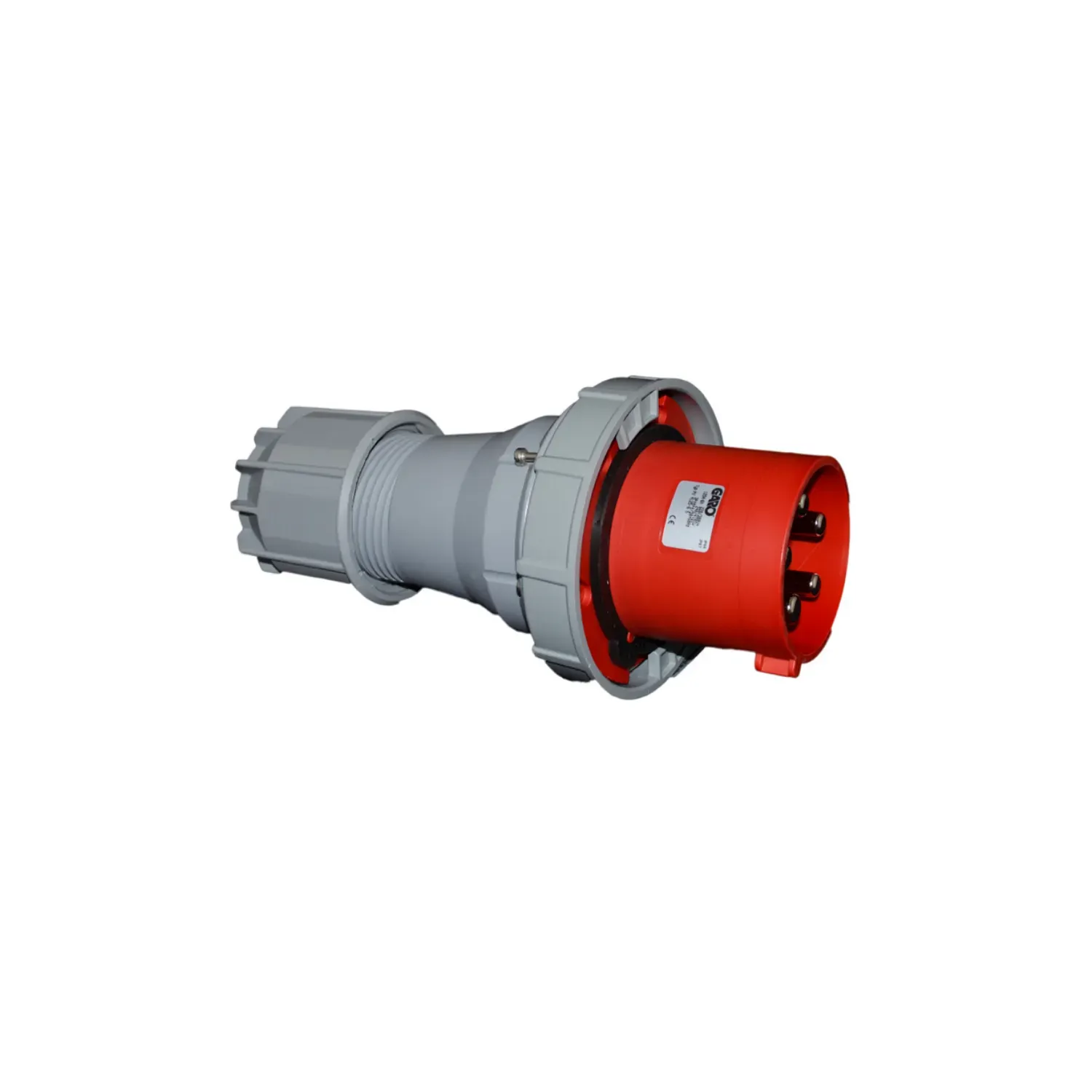

GARO PV4125-6S 125A 5P 415V IP67 Industrial Plug Watertight

Photo is representative

GARO PV4125-6S 125A 5P 415V IP67 Industrial Plug Watertight

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code PV41256S
GTIN 7331185081946
Stock status: Out of stock

priced individually

Net price: £110.04

Gross price

£132.05

GARO PV4125-6S is a 5-pin watertight industrial plug rated 125A. Configured for 3-pole + neutral + earth, clock position 6, certified to IEC 60309-2 standard.

  • Operating voltage: 230-400V, 50/60Hz
  • Degree of protection: IP67
  • Connectable cable size: 16-50mm²
  • Clock position: 6 (colour-coded per IEC 60309)
  • Weight: 1.545kg

Certified to IEC 60309-1, IEC 60309-2, EN 50250, BS 4343, VDE 0623. Complies with LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU.

Specifications

Rated Current

125A

Poles Configuration

5P (3-pole + N + E)

Operating Voltage

230-400V

Frequency

50/60Hz

IP Rating

IP67

Connectable Cable Size

16-50mm²

Clock Position

6

Dimension A

270mm

Dimension B

131mm

Dimension K

22.5-50mm

Weight

1.545kg

Standard Compliance

IEC 60309-1, IEC 60309-2, EN 60309-1, EN 60309-2
