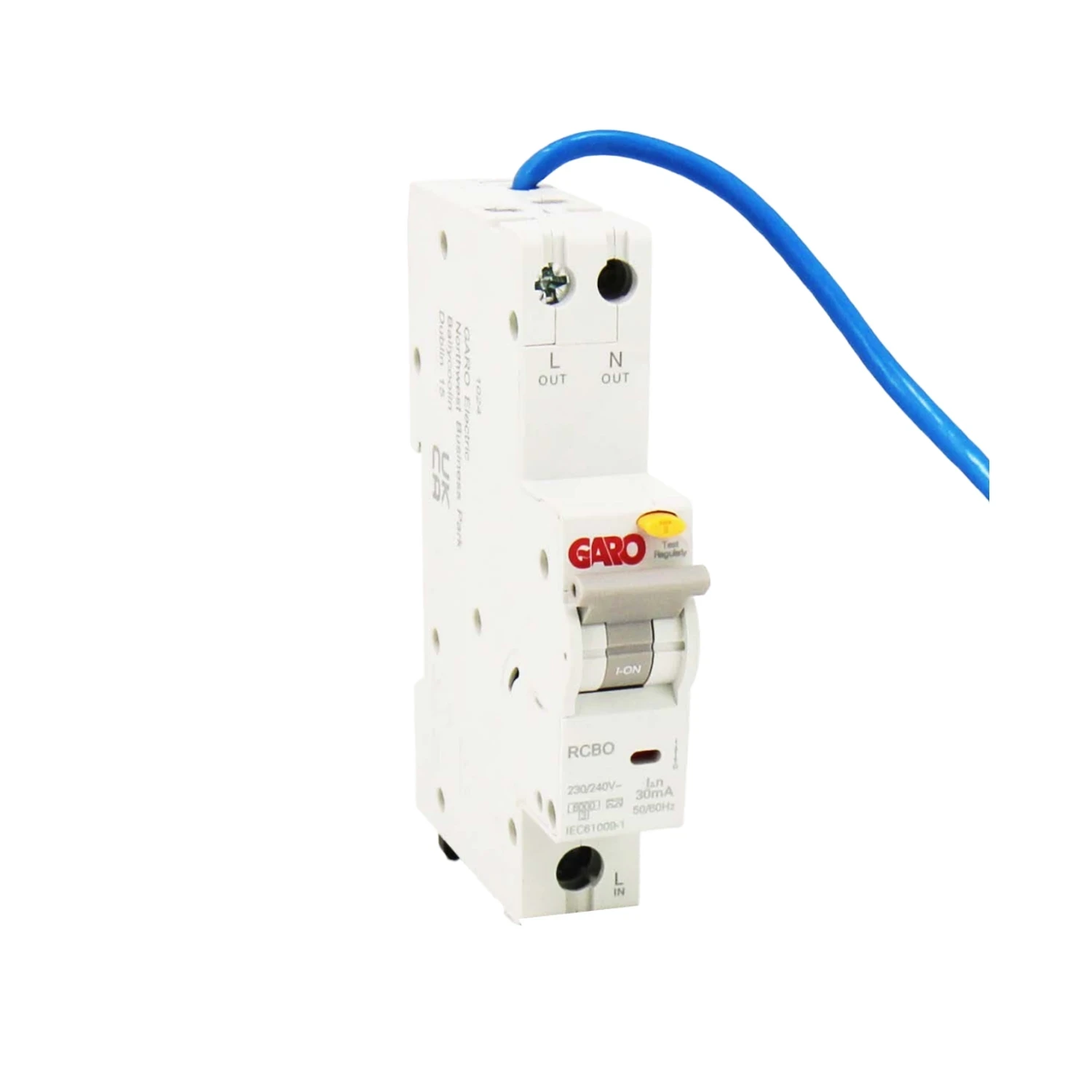

Garo RCBO 16A Type B 30mA 1P+N 6kA 1 Module

Photo is representative

Garo RCBO 16A Type B 30mA 1P+N 6kA 1 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RCBOL1PB16
GTIN —
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £18.48

Gross price

£22.17

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole RCBO providing combined overcurrent and earth leakage protection on 230V AC circuits. Type A residual current detection, B curve tripping characteristic.

1m neutral tail included — fits standard consumer unit and distribution board configurations.

  • 16A rated current, Type B curve
  • 30mA IΔn, Type A
  • 6kA breaking capacity
  • 18mm wide (1 module)
  • Terminals: 1–25mm², max. 3Nm torque
Specifications

Rated Voltage

230V AC

Rated Current

16A

Tripping Characteristic

B

Residual Current Type

Type A

Rated Residual Current

30mA

Breaking Capacity

6kA

Rated Residual Making & Breaking Capacity

1500A

Poles

1P+N

Rated Frequency

50Hz

Back-up Fuse

100A gG

Terminal Capacity

1–25mm², max. 3Nm

Width

18mm

Neutral Tail Length

1 metre

Temperature Range

-20°C to +40°C

Standard

IEC 61009

Bi-Directional

No

Documents

datasheet Garo Electrical Products RCBOL1PB16 Datasheet
