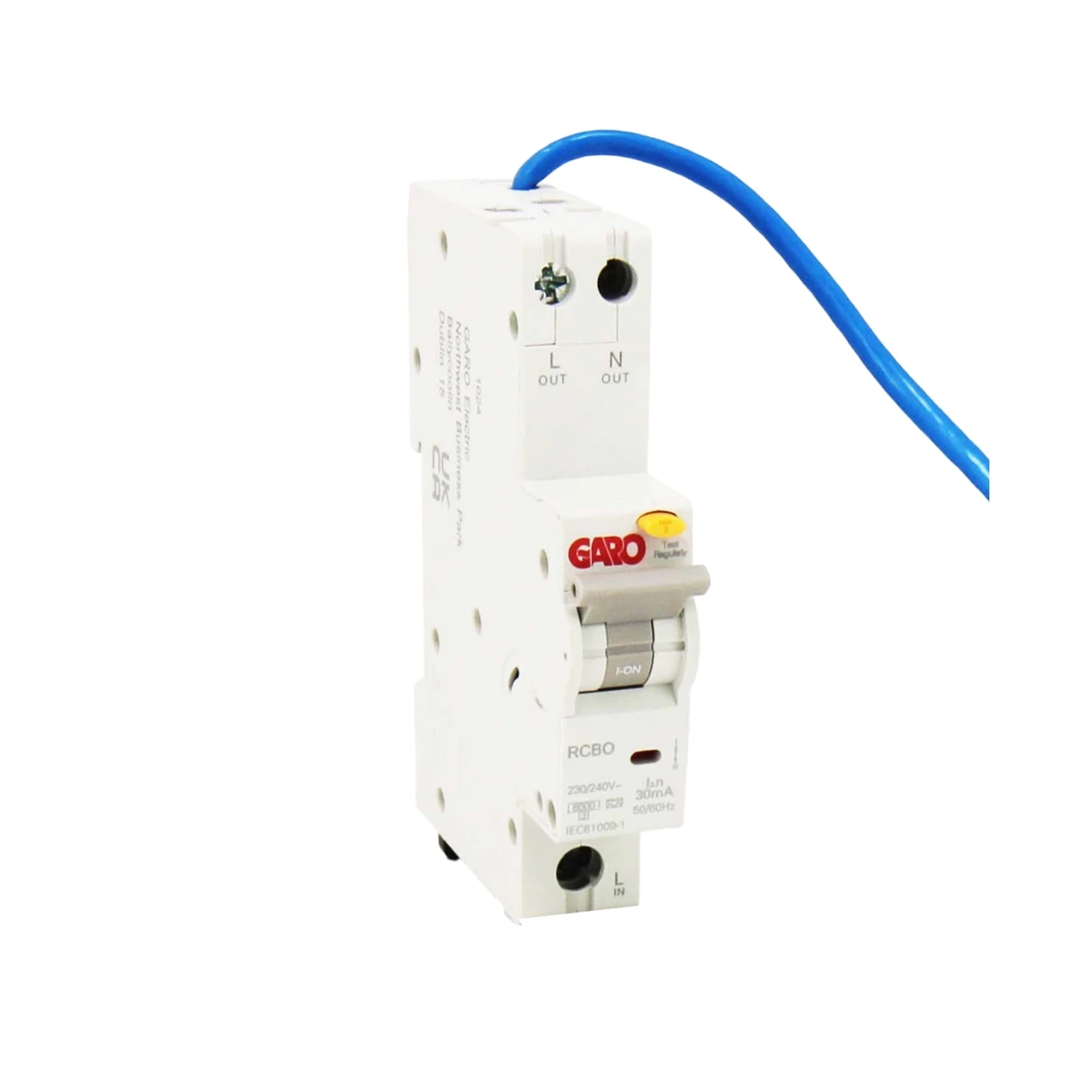

Garo RCBO 20A Type B 30mA 1P+N 6kA Type A 1m Neutral Tail

Photo is representative

Garo RCBO 20A Type B 30mA 1P+N 6kA Type A 1m Neutral Tail

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RCBOL1PB20
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £18.48

Gross price

£22.17

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole RCBO combining earth leakage and overcurrent protection. 1P+N, 18mm wide — one module on DIN rail. Comes with a 1 metre neutral tail already fitted.

Type A residual current device, so it’ll pick up pulsating DC residual currents as well as pure AC.

  • 20A rated, Type B tripping curve
  • 30mA IΔn, 6kA breaking capacity
  • Terminals accept 1–25mm², torque to 3Nm
  • Rated 230V AC, 50Hz
  • Operating range –20°C to +40°C
Specifications

Rated Voltage

230V AC

Rated Current

20A

Rated Frequency

50 Hz

Tripping Characteristic

B

Residual Current Type

Type A

Rated Residual Current IΔn

30 mA

Breaking Capacity Icn

6 kA

Rated Residual Making & Breaking Capacity

1500 A

Number of Poles

1P+N

Width

18 mm

Module Width

10.3 mm

Terminal Capacity

1–25mm², max. 3Nm

Neutral Tail Length

1 Metre

Temperature Range

-20°C to +40°C

Back-up Fuse

100A gG

Standard

IEC 61009, IEC 61009-1

Documents

datasheet Garo Electrical Products RCBOL1PB20 Datasheet
