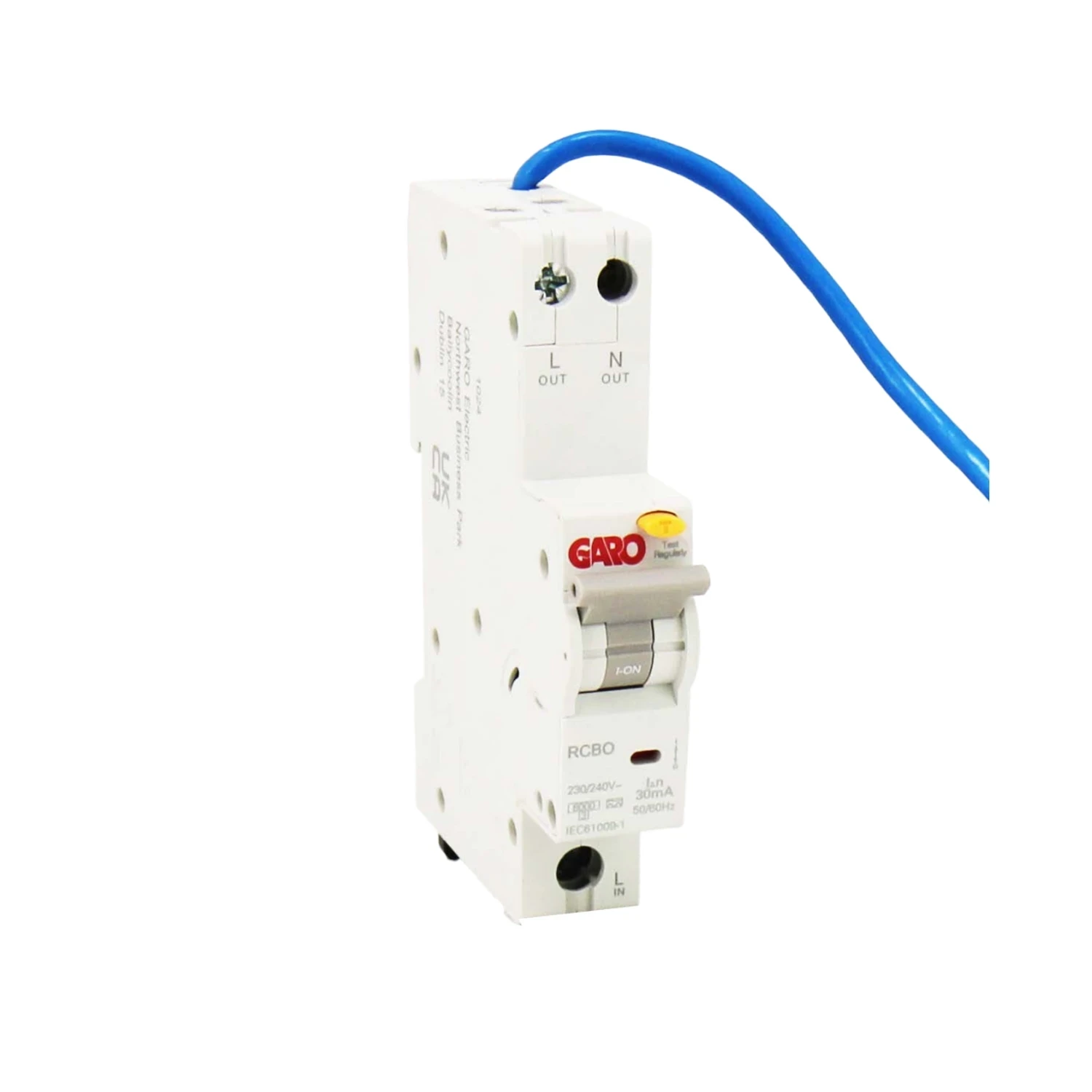

Garo RCBO 25A Type B 30mA 1P+N 6kA 1 Module

Photo is representative

Garo RCBO 25A Type B 30mA 1P+N 6kA 1 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RCBOL1PB25
GTIN —
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £18.48

Gross price

£22.17

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole RCBO combining earth leakage and overcurrent protection in one 18mm module. Rated 25A with a Type B tripping curve and 30mA Type A residual current sensitivity. Includes a 1 metre neutral tail for direct connection in single-phase boards.

  • 230V AC, 50Hz
  • 6kA breaking capacity, 100A gG back-up fuse
  • Terminals: 1–25mm², max. 3Nm
  • Operating temperature: –20°C to +40°C
  • Certified to IEC 61009-1
Specifications

Rated Voltage

230V AC

Rated Current

25A

Tripping Characteristic

B

Residual Current Type

Type A

Rated Residual Current

30mA

Breaking Capacity

6kA

Rated Residual Making & Breaking Capacity

1500A

Back-up Fuse

100A gG

Number of Poles

1

Number of Modules

1

Width

18mm

Neutral Tail Length

1 metre

Terminal Capacity

1–25mm², max. 3Nm

Rated Frequency

50/60Hz

Temperature Range

-20°C to +40°C

Standard

IEC 61009-1

Bi-Directional

No

Documents

datasheet Garo Electrical Products RCBOL1PB25 Datasheet
