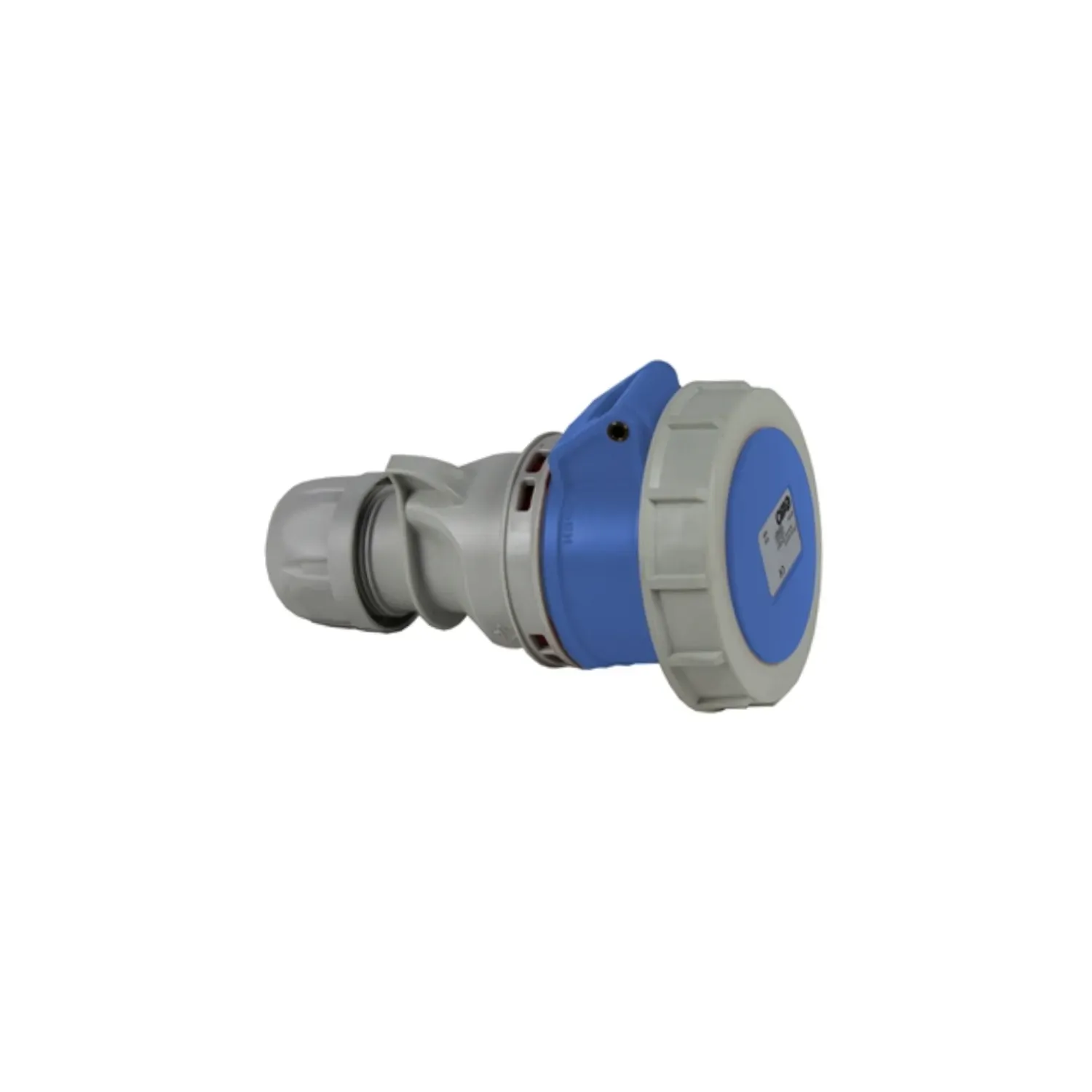

GARO 32A 3P+E Coupler IP67 230V Industrial Socket

Photo is representative

GARO 32A 3P+E Coupler IP67 230V Industrial Socket

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SV2326S
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £11.86

Gross price

£14.24

32A 3-pole + earth coupler rated IP67 for outdoor and wet environments. Colour-coded to clock position 6 per IEC 60309 standard — eliminates mis-mating across 200-250V supply. Suitable for 2.5-6mm² cable. Contact torque 110 Ncm.

  • Current rating: 32A
  • Poles: 3-pole + earth
  • IP rating: IP67 (watertight)
  • Voltage: 200-250V
  • Cable range: 2.5-6mm²
Specifications

Current Rating

32A

Poles

3-pole + earth (2P+E)

Operating Voltage

200-250V

Frequency

50/60Hz

IP Rating

IP67

Clock Position

6

Connectable Cable Size

2.5-6mm²

Contact Torque

110 Ncm

Dimensions (L × W × H)

163 × 96 × 11.5-20mm

Weight

275g

Compliance

IEC 60309-2, IEC 60309-1, EN 60309-1, EN 60309-2, CEE17, BS 4343

EU Directives

LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU

Documents
