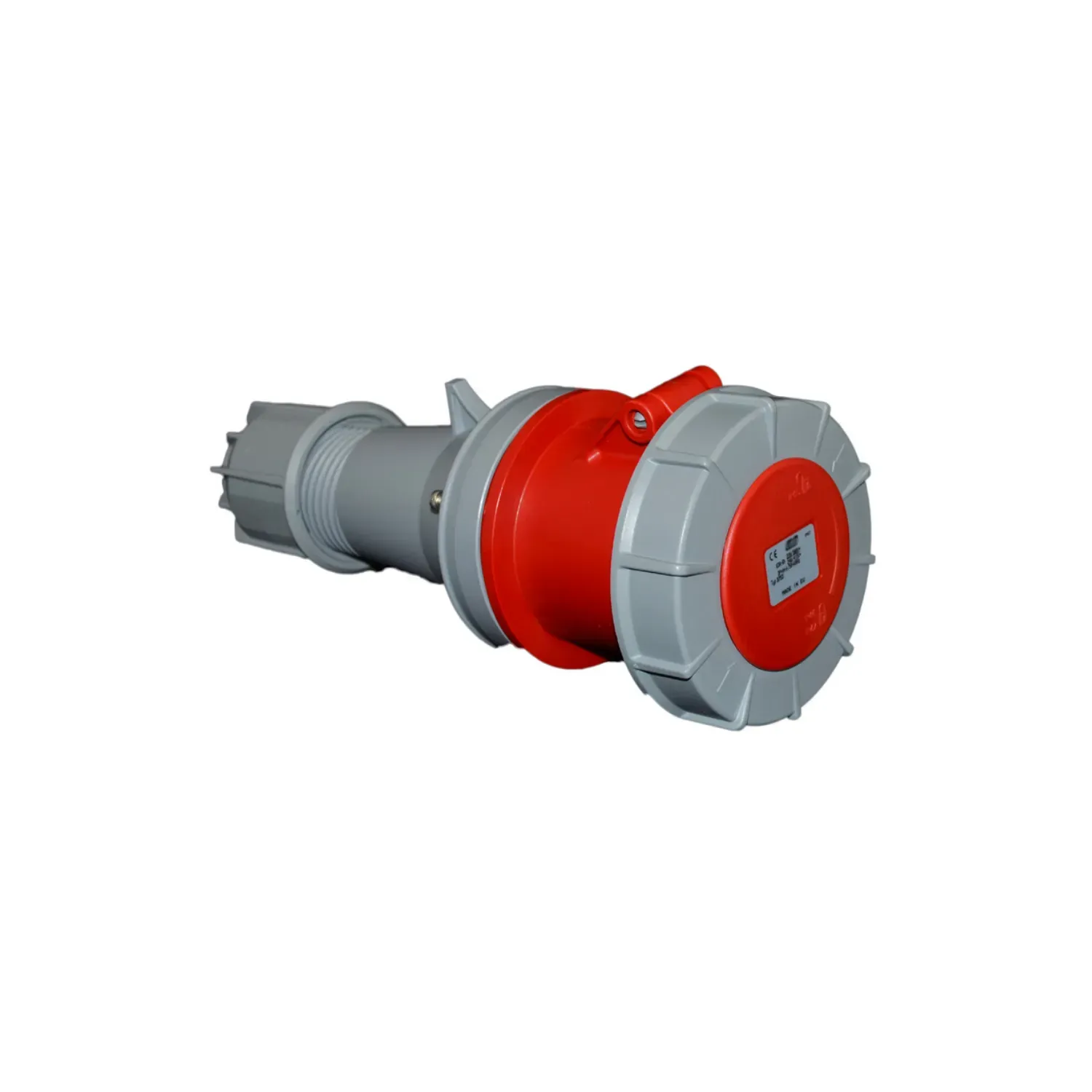

GARO Coupler 63A 5P 400V IP67 Industrial Socket

Photo is representative

GARO Coupler 63A 5P 400V IP67 Industrial Socket

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SV4636S
GTIN
Stock status: 2 in stock

priced individually

Net price: £51.67

Gross price

£62.00

Watertight industrial socket coupler from GARO. 63A 5-pole configuration (3-pole + neutral + earth) at 400V, 50/60Hz. IP67 protection for wet or dusty sites.

  • 63A rated, 5-pole (3P+N+E)
  • 230–400V, 50/60Hz
  • IP67 watertight
  • Cable entry: 6–16 mm²
  • Screw terminals: 200 Ncm torque
Specifications

Current Rating

63A

Poles

5 (3P + N + E)

Voltage

230–400V

Frequency

50/60Hz

IP Rating

IP67

Cable Size

6–16 mm²

Contact Screw Torque

200 Ncm

Dimension a

269 mm

Dimension b

114 mm

Dimension K

14.5–36 mm

Clock Position

6

Weight

772 g

Standard Compliance

IEC 60309-1, IEC 60309-2, EN 60309-1, EN 60309-2, CEE17, SEMKO 117, VDE 0623, BS 4343, EN 50 250
