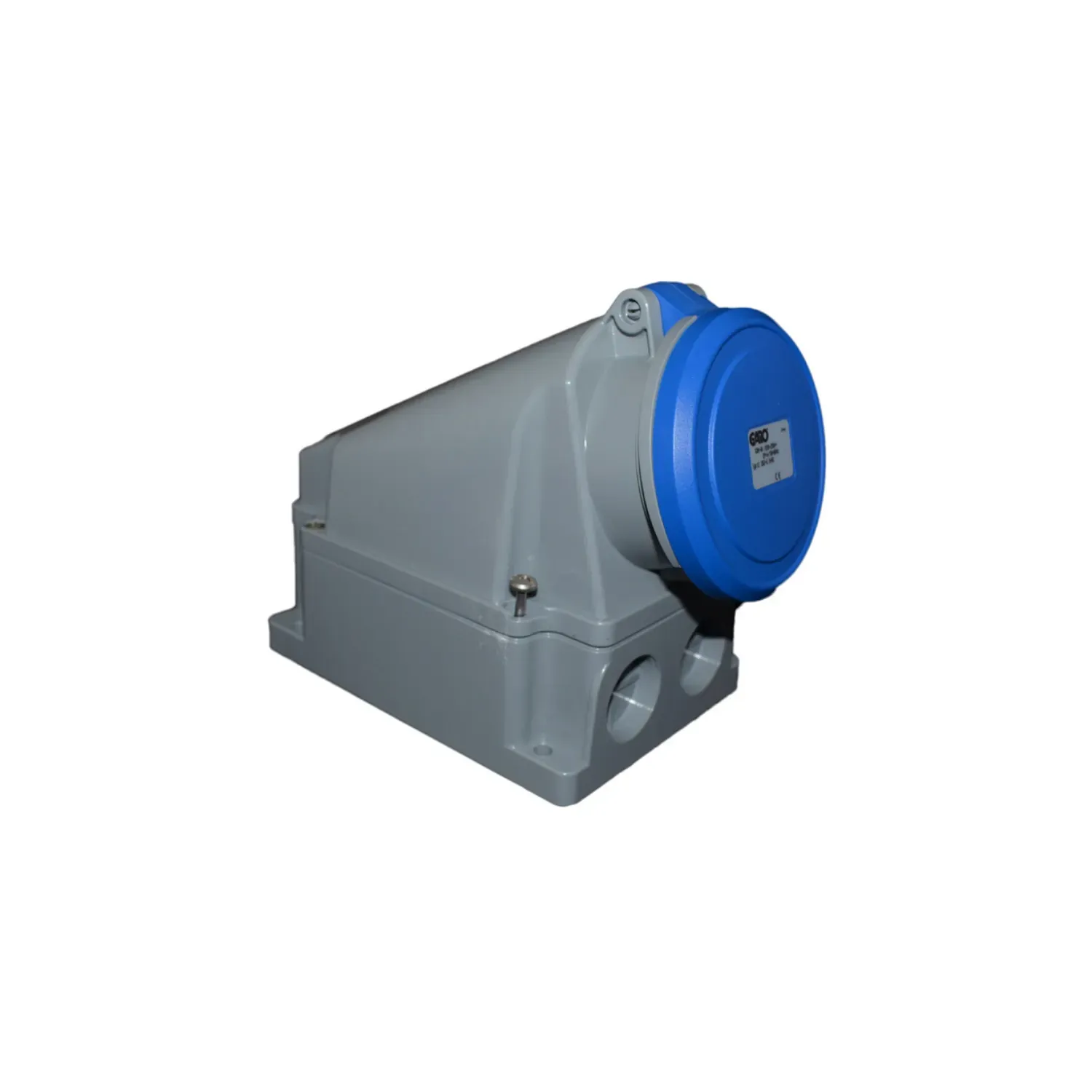

GARO Socket Surface Mount 3P 63A 230V IP44 Industrial

Photo is representative

GARO Socket Surface Mount 3P 63A 230V IP44 Industrial

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code UI2636SRU
GTIN
Stock status: 6 in stock

priced individually

Net price: £44.64

Gross price

£53.57

Surface mount industrial socket, 3-pole + earth, 63A rated. Designed for wall or machine mounting with cable entry from top and back. IP44 protection grade.

  • Rated 63A, 200–250V, 50/60Hz
  • 3-pole + earth (2P+E) configuration
  • Cable entry: 6–16mm² flexible, 6–25mm² solid
  • Clock position 6 colour-coded per IEC 60309
  • Supplied with cable gland entry
Specifications

Current Rating

63A

Poles

3-pole + earth (2P+E)

Operating Voltage

200–250V

Frequency

50/60Hz

IP Rating

IP44

Mounting Type

Surface mount, wall and machine mounting

Cable Entry

Top and back, flexible 6–16mm², solid 6–25mm²

Clock Position

6

Width

213mm

Depth

173mm

Weight

0.82kg

Standards Compliance

IEC 60309-1, IEC 60309-2, EN 60309-1, EN 60309-2, VDE 0623, BS 4343

Certification

LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU
