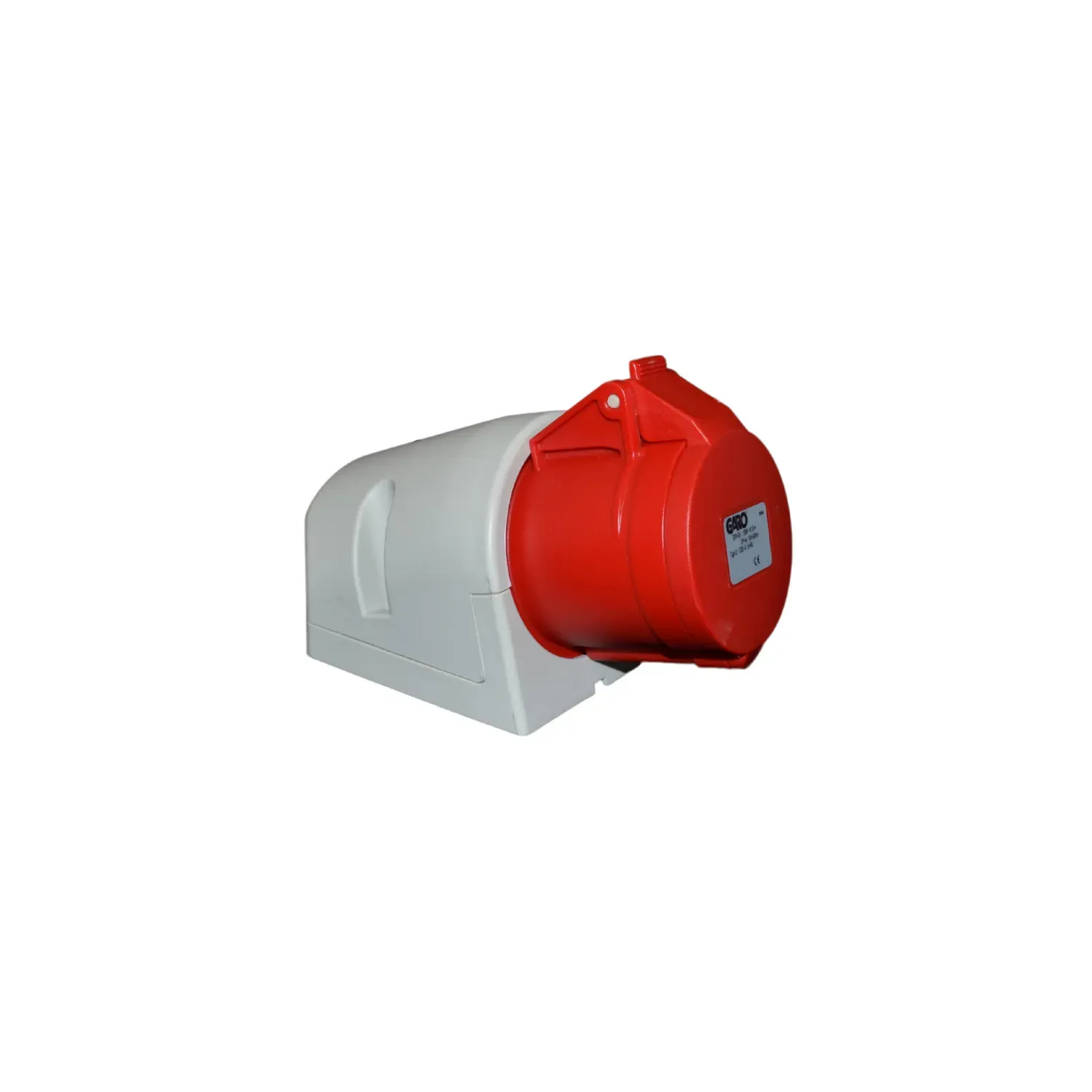

GARO Socket 5P 32A 400V IP44 Industrial Wall Mount

Photo is representative

GARO Socket 5P 32A 400V IP44 Industrial Wall Mount

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code UI4326SRU
GTIN
Stock status: 9 in stock

priced individually

Net price: £12.92

Gross price

£15.50

GARO 5-pole industrial socket, 32A rated at 400V, 50/60Hz. IP44 protection makes it suitable for indoor industrial and outdoor applications where splash protection is needed.

  • Mounting: Wall or machine-mounted
  • Cable entry: Flexible — top or back connection
  • Acceptable cable sizes: 2.5–6 mm² stranded; 2.5–10 mm² solid
  • Supplied with cable gland entry
  • IEC 60309-2 certified; complies with EN 60309-1 and EN 60309-2
Specifications

Rated Current

32A

Voltage

230–400V

Frequency

50/60Hz

Poles

5

IP Rating

IP44

Cable Size (Stranded)

2.5–6 mm²

Cable Size (Solid)

2.5–10 mm²

Mounting Type

Wall and machine mounting

Depth

157 mm

Width

110 mm

Height

25 mm

Weight

0.324 kg

Standards

IEC 60309-1, IEC 60309-2, EN 60309-1, EN 60309-2, CEE17, VDE 0623, BS 4343
