GW62023H - Gewiss 110V 3-Pin 16A Coupler IP67

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

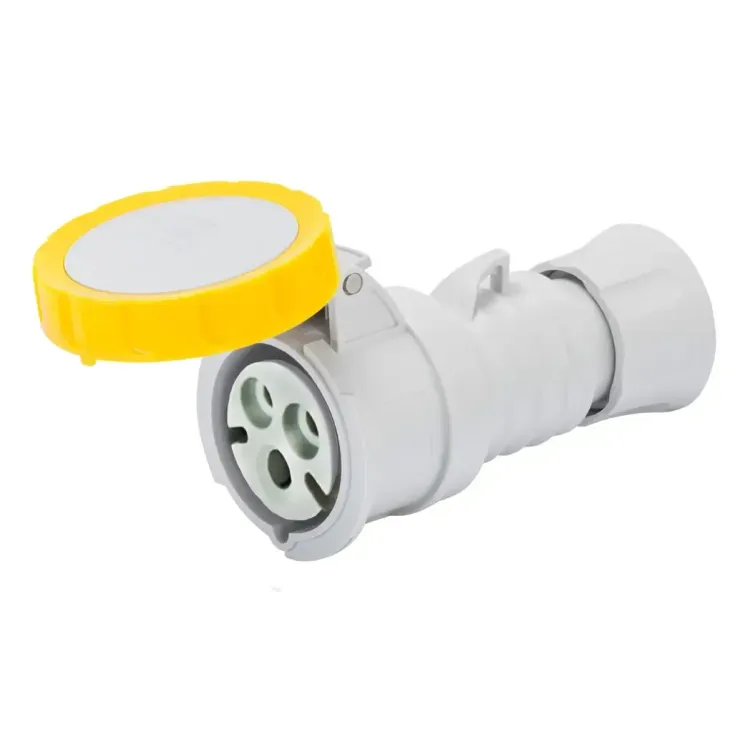

Gewiss 110V 3-Pin 16A Coupler IP67

The Gewiss GW62023H is a 110V 3-pin 16A straight coupler, IP67 rating, with IEC60309 certification.

Stock Code GW62023H
Out of stock

Product Features

  • SKU

    GW62023H

  • Type

    Straight connector

  • Brand

    Gewiss

  • Model

    GW62023H

  • Colour

    Yellow

  • No. of poles

    2P+E

  • Rated current

    16A

  • Rated voltage

    100 - 130V, 50 - 60Hz

  • Ingress Protection

    IP67

  • Permissible overload

    22A

  • Insulation resistance

    > 10 MΩ

  • Mechanical resistance

    IK09

  • Operating temperature

    -25 +55 °C

  • Total number of operations

    > 5000

  • Breaking capacity at 1.1 Un

    20A

Brand

Gewiss
