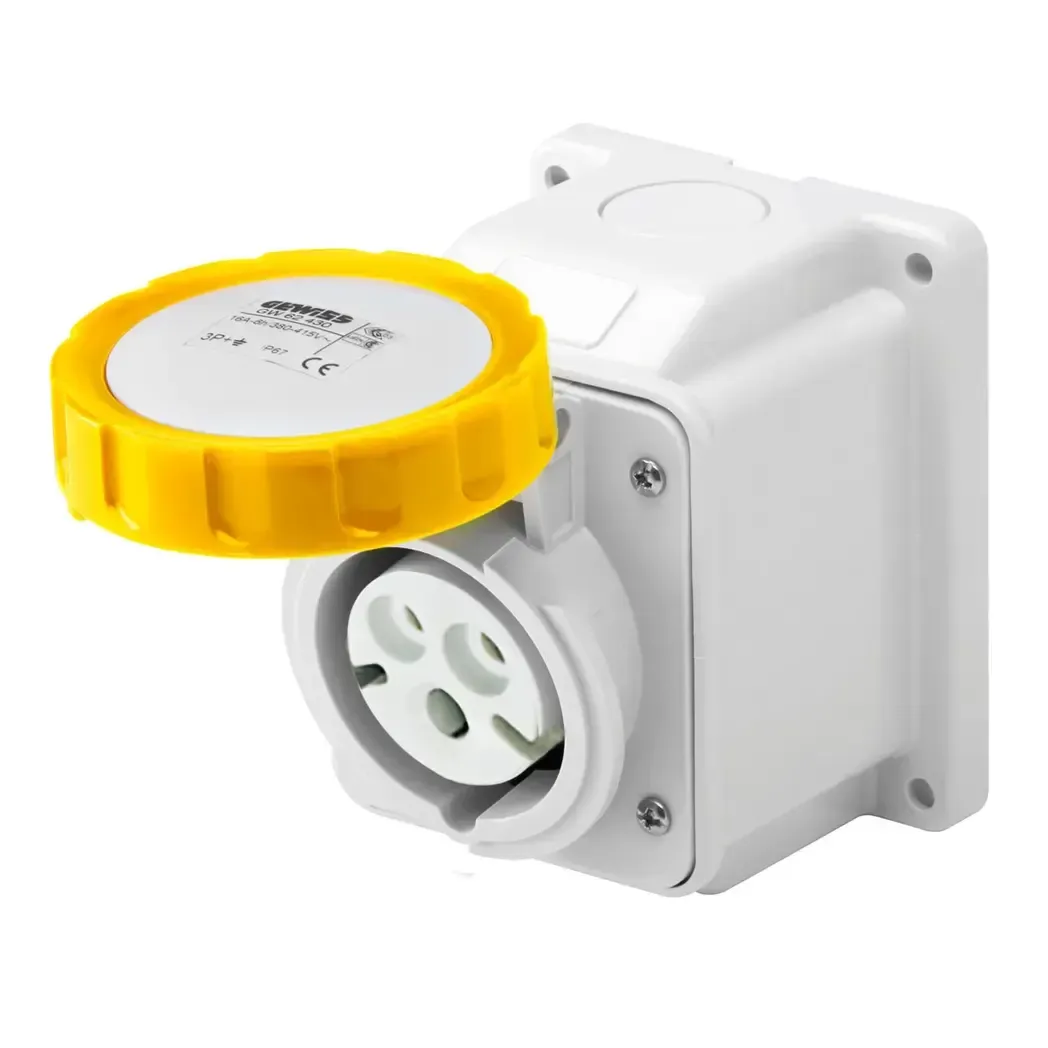

Photo is representative
Gewiss 110V 3-Pin 16A Socket IP67
The Gewiss GW62423 is a 110V 3-pin 16A 10deg angled surface-mounted socket-outlet, IP67 rating, with IEC60309 certification.
Online:
Product Features
SKU | GW62423 |
---|---|
Type | 10° Angled Surface-mounted Socket-outlet |
Brand | Gewiss |
Model | GW62423 |
Colour | Yellow |
No. of poles | 2P+E |
Rated current | 16A |
Rated voltage | 100 - 130V, 50 - 60Hz |
Ingress Protection | IP67 |
Permissible overload | 22A |
Insulation resistance | > 10 MΩ |
Mechanical resistance | IK08 |
Operating temperature | -25 +55 °C |
Total number of operations | > 5000 |
Breaking capacity at 1.1 Un | 20A |
