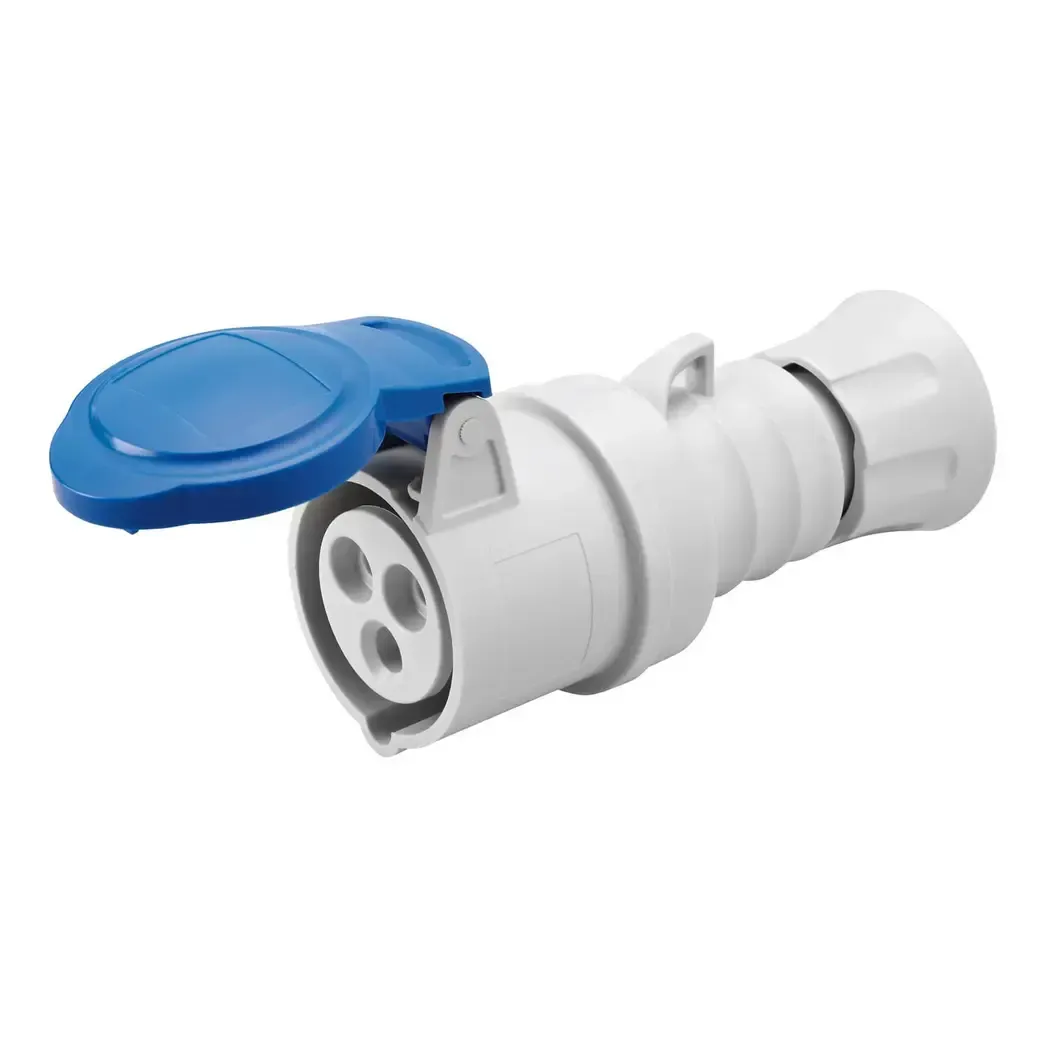

Photo is representative
Gewiss 220V 3-Pin 16A Coupler IP44
The Gewiss GW62015H is a 220V 3-pin 16A straight coupler, IP44 rating, with IEC60309 certification.
Online:
Product Features
SKU | GW62015H |
---|---|
Type | Straight connector |
Brand | Gewiss |
Model | GW62015H |
Colour | Blue |
No. of poles | 2P+E |
Rated current | 16A |
Rated voltage | 200 - 250V, 50 - 60Hz |
Ingress Protection | IP44 |
Permissible overload | 22A |
Insulation resistance | > 10 MΩ |
Mechanical resistance | IK09 |
Operating temperature | -25 +55 °C |
Total number of operations | > 5000 |
Breaking capacity at 1.1 Un | 20A |
