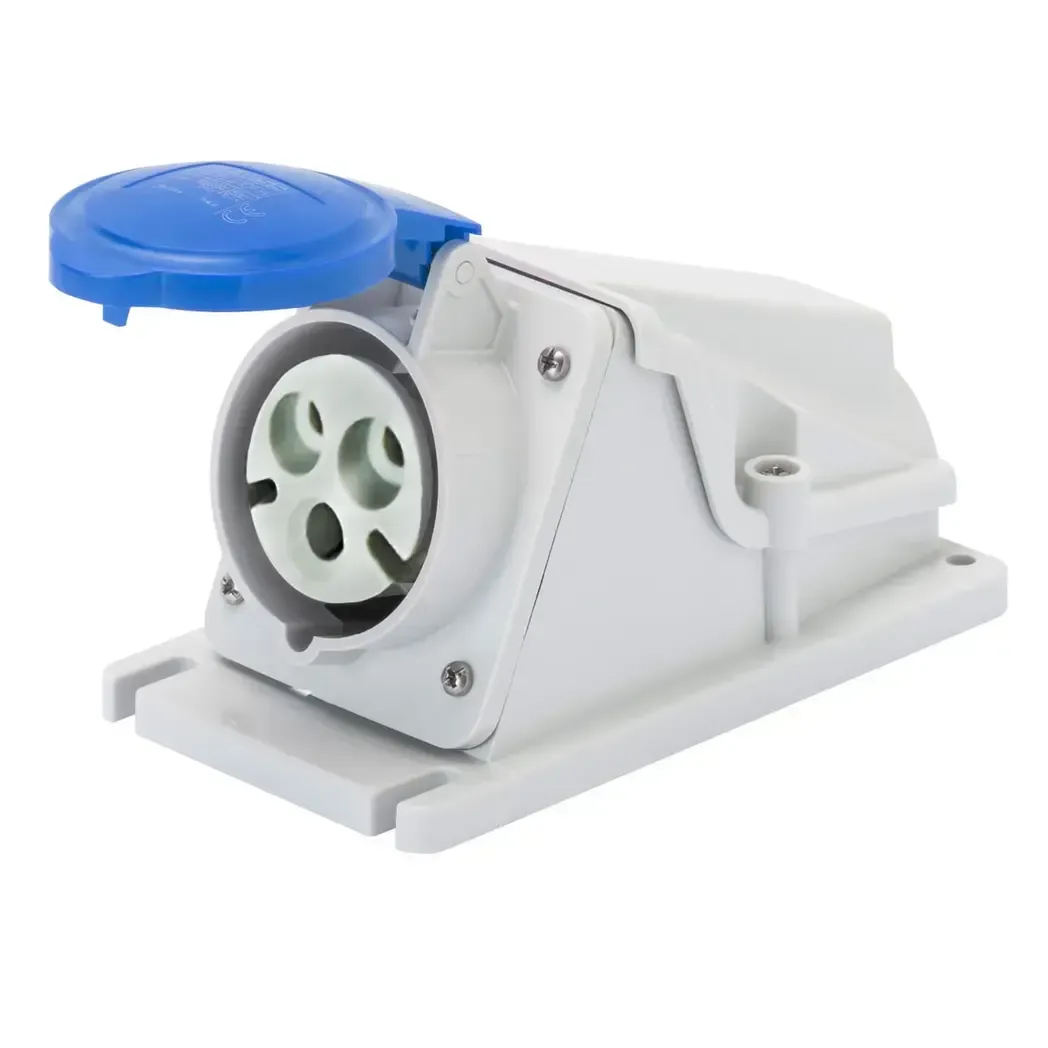

Gewiss 220V 3-Pin 32A Socket IP44
The Gewiss GW62488 is a 220V 3-pin 32A 90deg angled surface-mounted socket-outlet, IP44 rating, with IEC60309 certification.
Online:
Product Features
SKU | GW62488 |
---|---|
Type | 90° Socket outlet |
Brand | Gewiss |
Model | GW62488 |
Colour | Blue |
No. of poles | 2P+E |
Rated current | 32A |
Rated voltage | 200 - 250V, 50 - 60Hz |
Ingress Protection | IP44 |
Permissible overload | 42A |
Insulation resistance | > 10 MΩ |
Mechanical resistance | IK08 |
Operating temperature | -25 +55 °C |
Total number of operations | > 5000 |
Breaking capacity at 1.1 Un | 40A |
