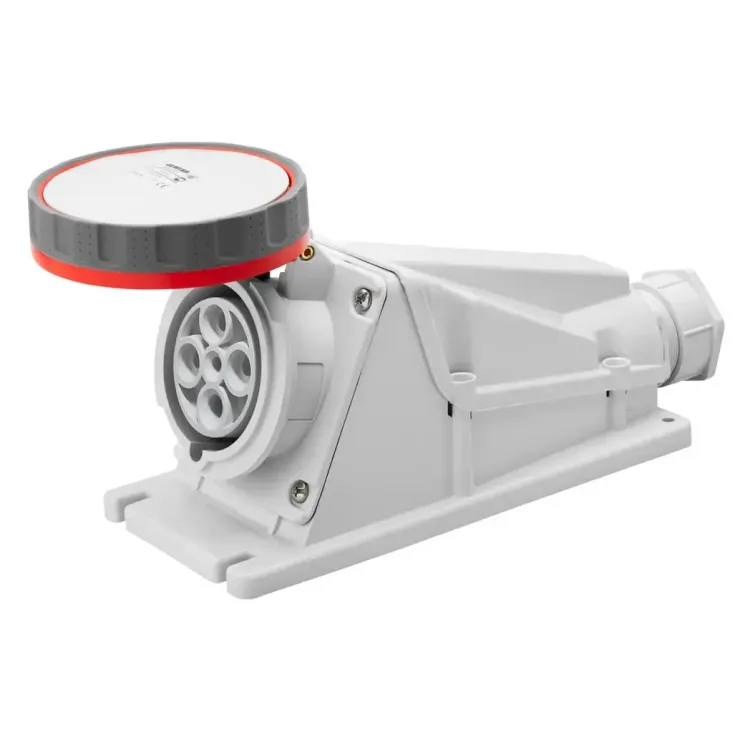

Gewiss 415V 4-Pin 125A Socket IP67
The Gewiss GW62534 is a 380-415V 4-pin 125A 90deg angled surface-mounted socket-outlet, IP67 rating, with IEC60309 certification.
Stock Code:
GW62534
Online:
In stock
Price 142.75 £
incl. VAT, 20%
priced individually
Product Features
| SKU | GW62534 |
|---|---|
| Type | 90° angled surface-mounting socket-outlet |
| Brand | Gewiss |
| Model | GW62534 |
| Colour | Red |
| No. of poles | 3P+E |
| Rated current | 125A |
| Rated voltage | 380 - 415V, 50 - 60Hz |
| Ingress Protection | IP67 |
| Insulation resistance | > 10 MΩ |
| Mechanical resistance | IK08 |
| Operating temperature | -25 +55 °C |
| Total number of operations | > 500 |
| Breaking capacity at 1.1 Un | 156A |
