GW60019H - Gewiss 415V 4-Pin 32A Plug Top IP44

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

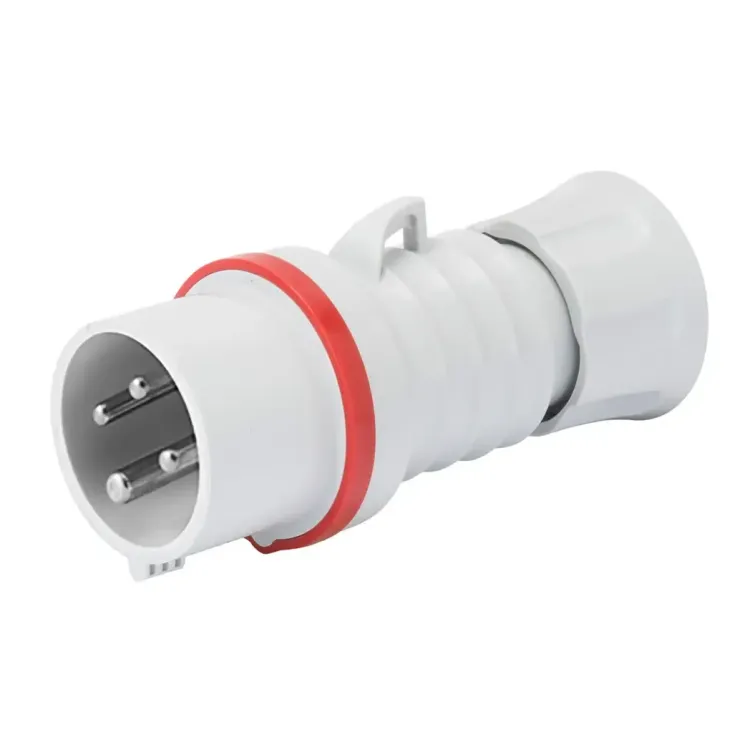

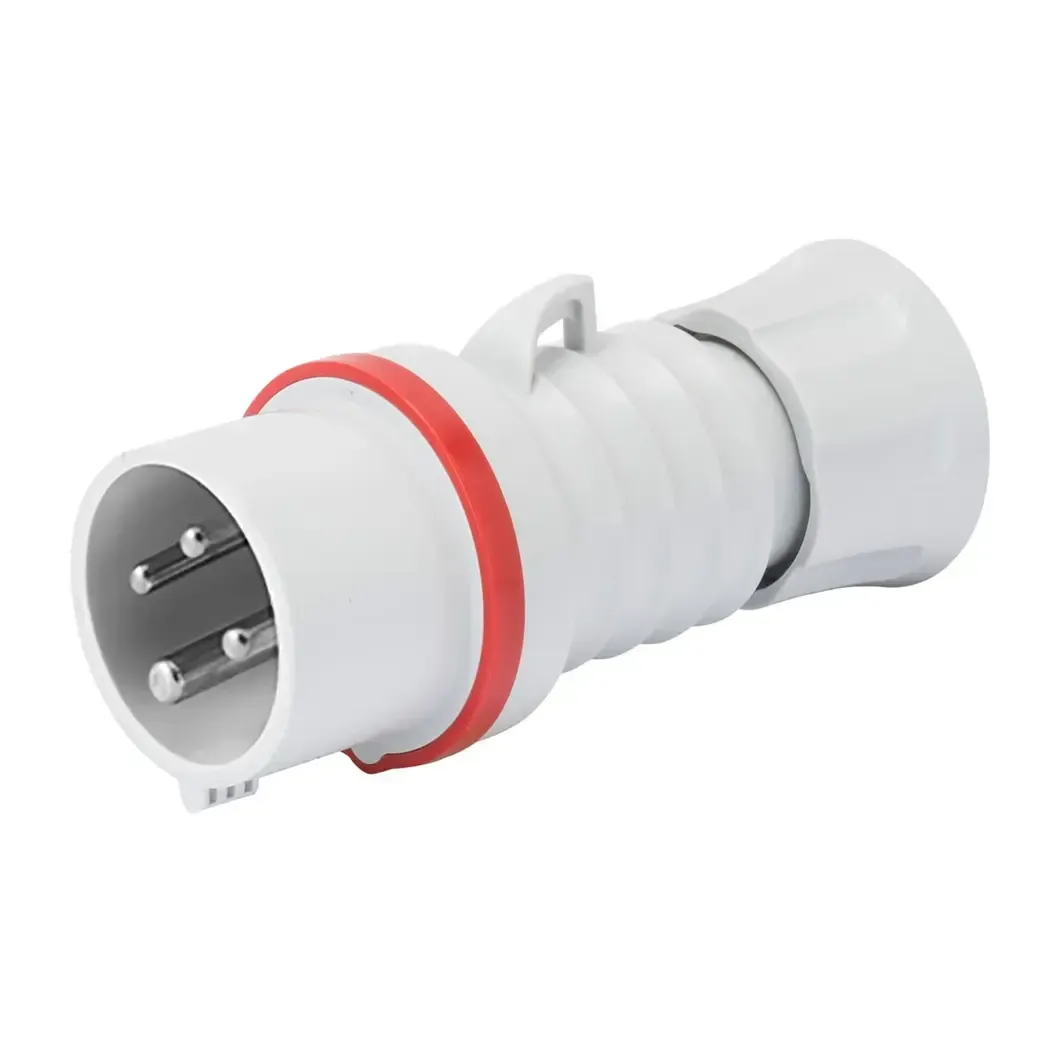

Gewiss 415V 4-Pin 32A Plug Top IP44

The Gewiss GW60019H is a 380-415V 4-pin 32A plug top, IP44 rating, with IEC60309 certification.

Stock Code GW60019H
Few in stock
Price 7.94 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    GW60019H

  • Type

    Straight plug

  • Brand

    Gewiss

  • Model

    GW60019H

  • Colour

    Red

  • No. of poles

    3P+E

  • Rated current

    32A

  • Rated voltage

    380 - 415V, 50 - 60Hz

  • Ingress Protection

    IP44

  • Permissible overload

    42A

  • Insulation resistance

    > 10 MΩ

  • Mechanical resistance

    IK09

  • Operating temperature

    -25 +55 °C

  • Total number of operations

    > 2000

  • Breaking capacity at 1.1 Un

    40A

Brand

Gewiss
