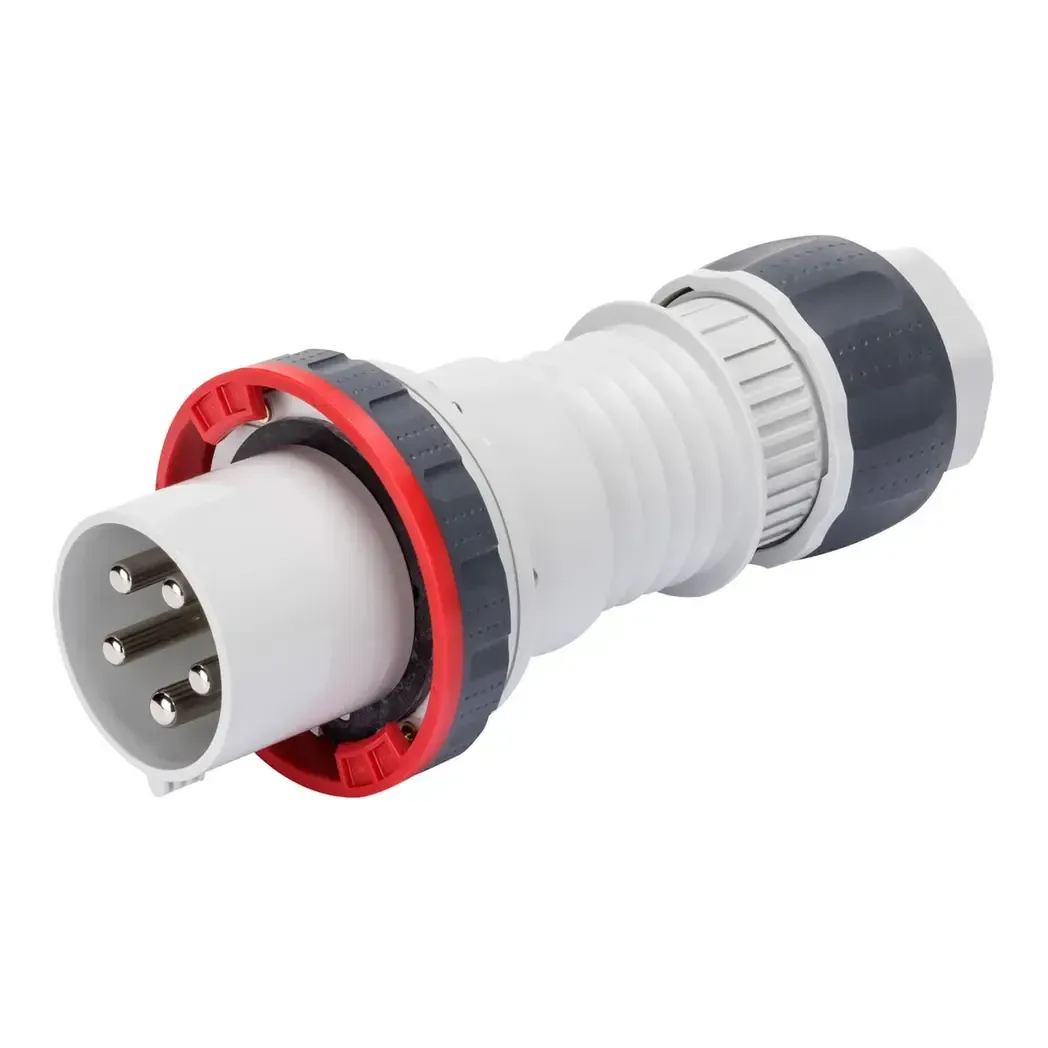

Photo is representative
Gewiss 415V 5-Pin 125A Plug Top IP67
The Gewiss GW60061 is a 380-415V 5-pin 125A straight plug, IP67 rating, with IEC60309 certification.
Stock Code:
GW60061H
Online:
3 available
Price 111.46 £
incl. VAT, 20%
priced individually
Product Features
SKU | GW60061 |
---|---|
Type | Straight connector |
Brand | Gewiss |
Model | GW60061 |
Colour | Red |
No. of poles | 3P+N+E |
Rated current | 125A |
Rated voltage | 380 - 415V, 50 - 60Hz |
Ingress Protection | IP67 |
Insulation resistance | > 10 MΩ |
Mechanical resistance | IK09 |
Operating temperature | -25 +55 °C |
Total number of operations | > 500 |
Breaking capacity at 1.1 Un | 156A |
