Photo is representative

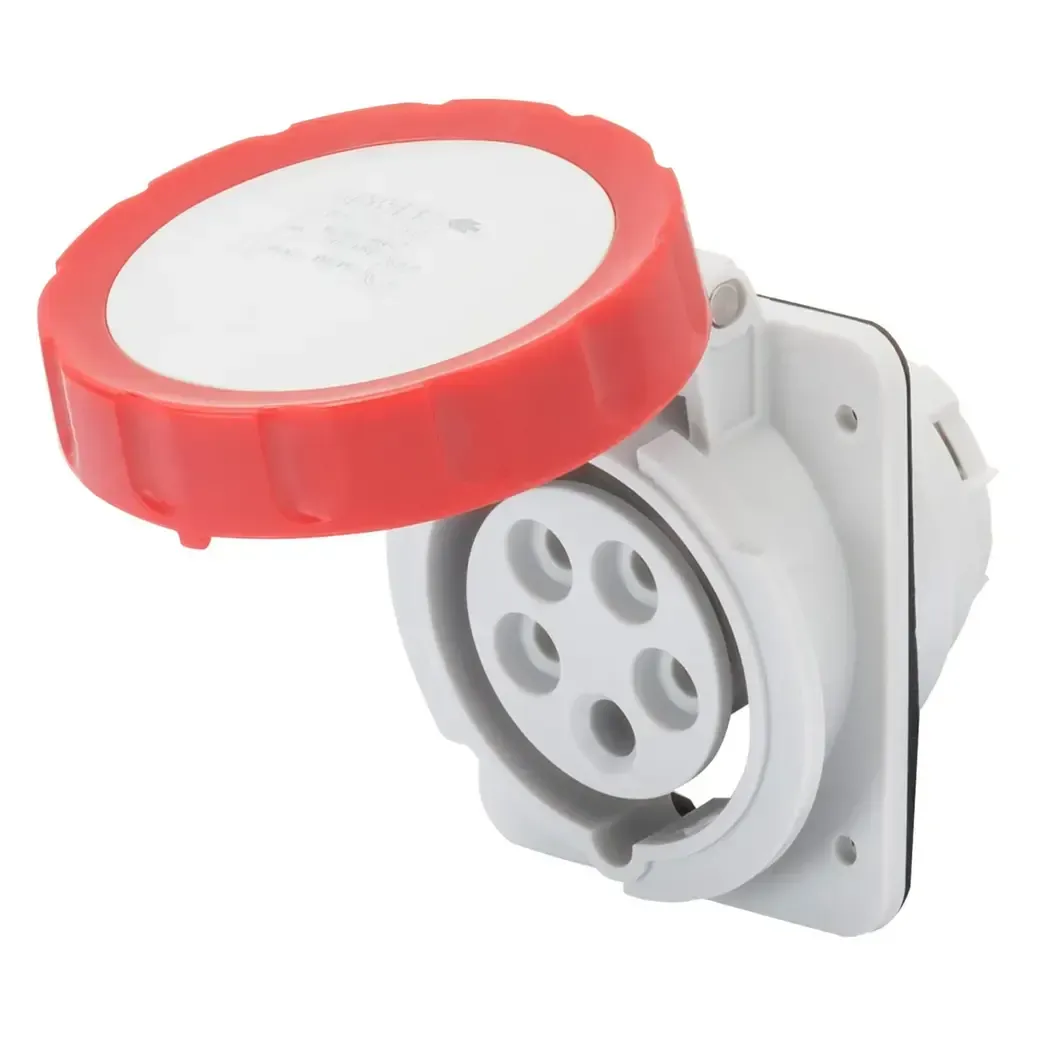

Gewiss 415V 5-Pin 32A Socket Panel Mount IP67
The Gewiss GW62243H is a 380-415V 5-pin 32A 10deg angled flush-mounted socket-outlet, IP67 rating, with IEC60309 certification.
Online:
Product Features
SKU | GW62243H |
---|---|
Type | 10° angled flush-mounting socket-outlet |
Brand | Gewiss |
Model | GW62243H |
Colour | Red |
No. of poles | 3P+N+E |
Rated current | 32A |
Rated voltage | 380 - 415V, 50 - 60Hz |
Ingress Protection | IP67 |
Permissible overload | 42A |
Insulation resistance | > 10 MΩ |
Mechanical resistance | IK09 |
Operating temperature | -25 +55 °C |
Total number of operations | > 2000 |
Breaking capacity at 1.1 Un | 40A |
