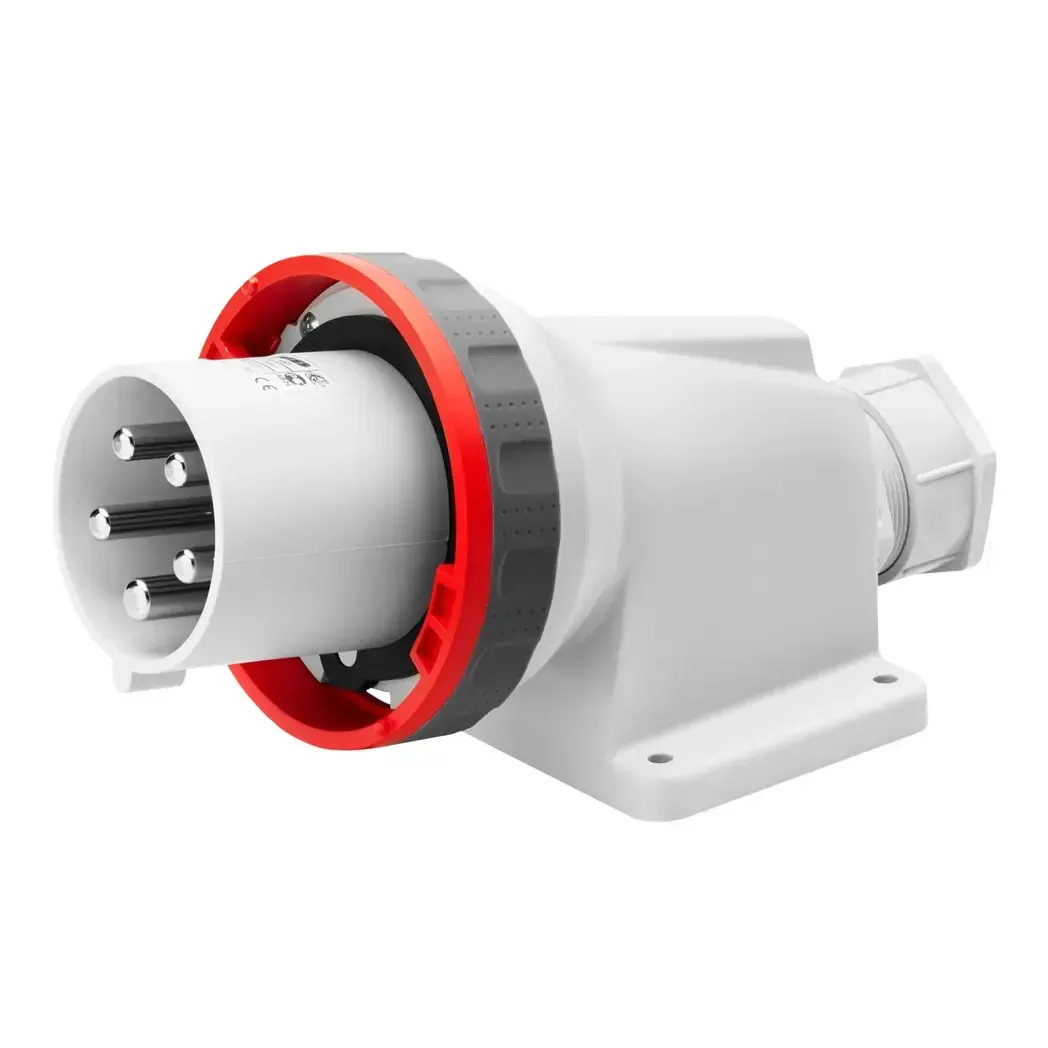

Gewiss 415V 5-Pin 63A Appliance Inlet IP67
The Gewiss GW61453 is a 380-415V 5-pin 63A appliance inlet, IP67 rating, with IEC60309 certification.
Product Features
-
SKU
GW61453
-
Type
Appliance Inlet
-
Brand
Gewiss
-
Model
GW61453
-
Colour
Red
-
No. of poles
3P+N+E
-
Rated current
63A
-
Rated voltage
380 - 415V, 50 - 60Hz
-
Ingress Protection
IP67
-
Insulation resistance
> 10 MΩ
-
Mechanical resistance
IK08
-
Operating temperature
-25 +55 °C
-
Total number of operations
> 2000
-
Breaking capacity at 1.1 Un
79A
