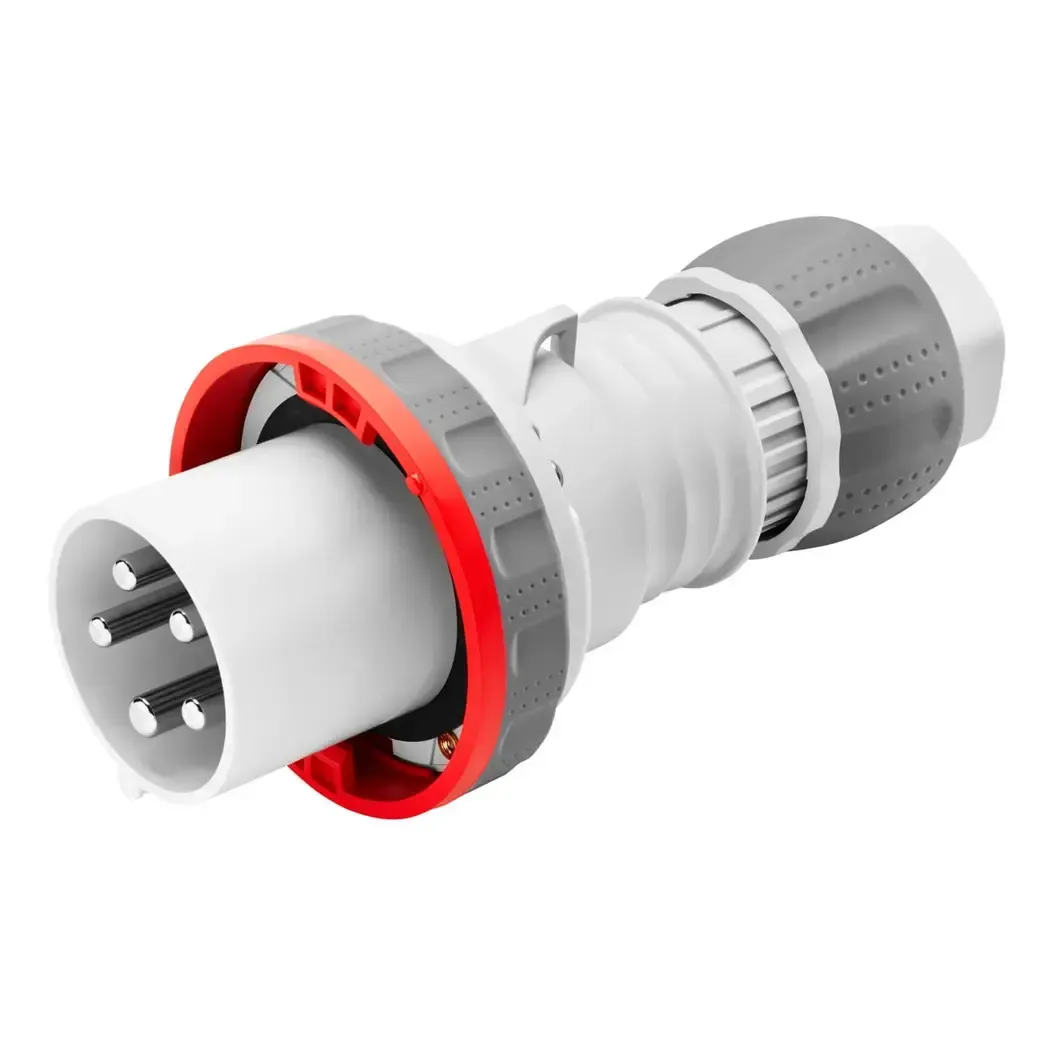

Gewiss 415V 5-Pin 63A Plug Top IP67
The Gewiss GW61053H is a 380-415V 5-pin 63A straight plug, IP67 rating, with IEC60309 certification.
Stock Code:
GW61053H
Online:
4 available
Price 44.66 £
incl. VAT, 20%
priced individually
Product Features
SKU | GW61053H |
---|---|
Type | Straight connector |
Brand | Gewiss |
Model | GW61053H |
Colour | Red |
No. of poles | 3P+N+E |
Rated current | 63A |
Rated voltage | 380 - 415V, 50 - 60Hz |
Ingress Protection | IP67 |
Insulation resistance | > 10 MΩ |
Mechanical resistance | IK09 |
Operating temperature | -25 +55 °C |
Total number of operations | > 2000 |
Breaking capacity at 1.1 Un | 79A |
