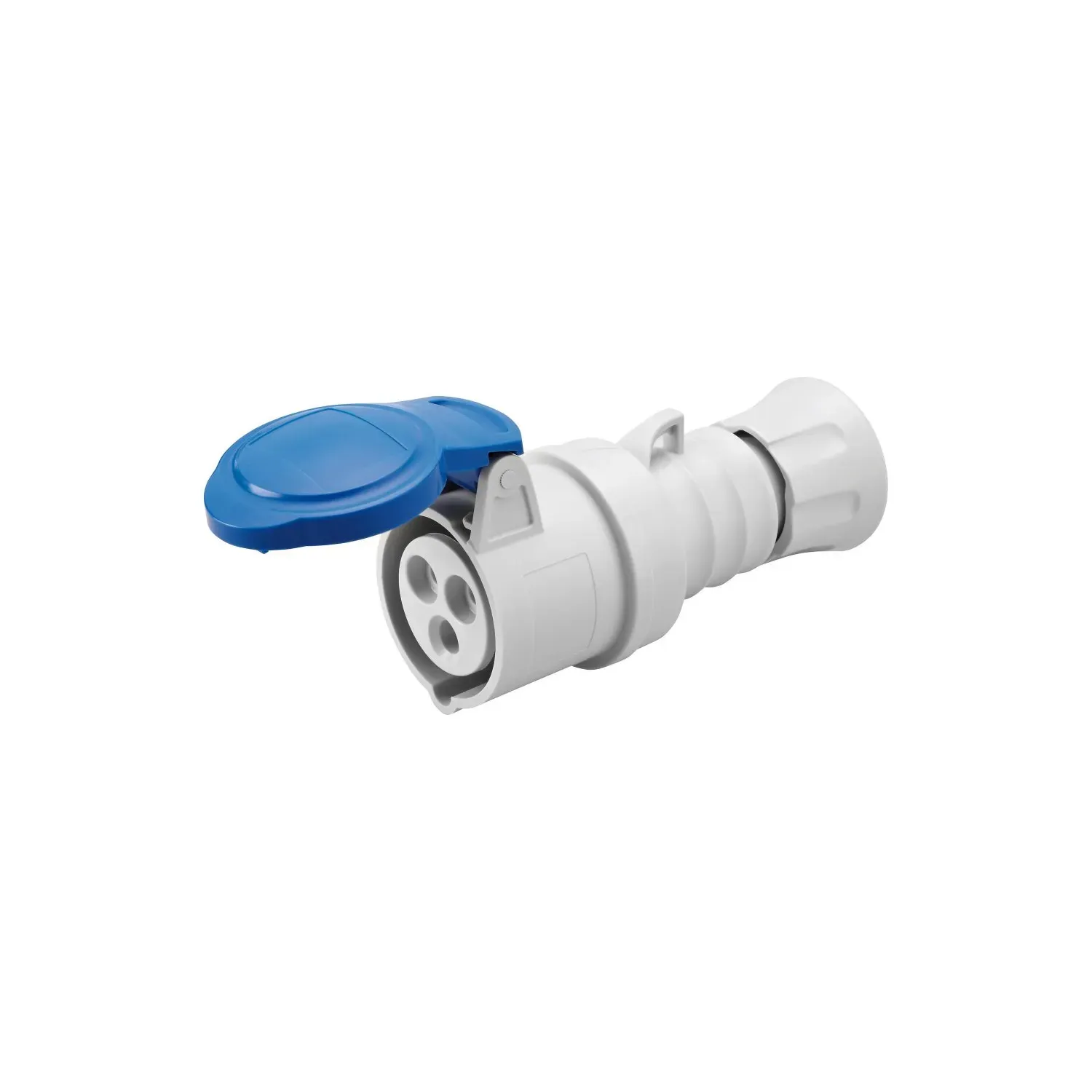

Gewiss 16A 2P+E Coupler 230V IP44 Blue Straight

Photo is representative

Gewiss 16A 2P+E Coupler 230V IP44 Blue Straight

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GW62004H
GTIN
Stock status: In stock

priced individually

Net price: £3.95

Gross price

£4.75

Gewiss IEC 309 HP straight coupler for 16A mobile and temporary site applications. Fully compliant with IEC 60309-1 and EN 60309-2 standards.

  • Rated 16A at 200–250V, 5060 Hz
  • IP44/IP54 protection, IK09 mechanical resistance
  • 2P+E configuration, blue colour
  • Nickel-plated sleeves and pins; stainless steel external parts
  • Terminal capacity: 1–2.5mm² flexible / 1.5–4mm² rigid cables
  • Operating range: -25 to +55°C
Specifications

Product Code

GW62004H

Rated Current

16 A

Rated Voltage

200–250 V

Configuration

2P+E

IP Rating

IP44/IP54

Mechanical Resistance

IK09

Frequency

50/60 Hz

Operating Temperature

-25 to +55°C

Cable Terminal Capacity

1–2.5mm² flexible, 1.5–4mm² rigid

Cable Clamp Range

7.5–13.8 mm

Breaking Capacity

20 A at 1.1 Un

Material

Halogen-free, EN 60754-2

Insulation Resistance

> 10 MΩ

Documents
Gewiss
