Gewiss 32A 5P Interlocked Switched Socket Vertical IP66 400V Red

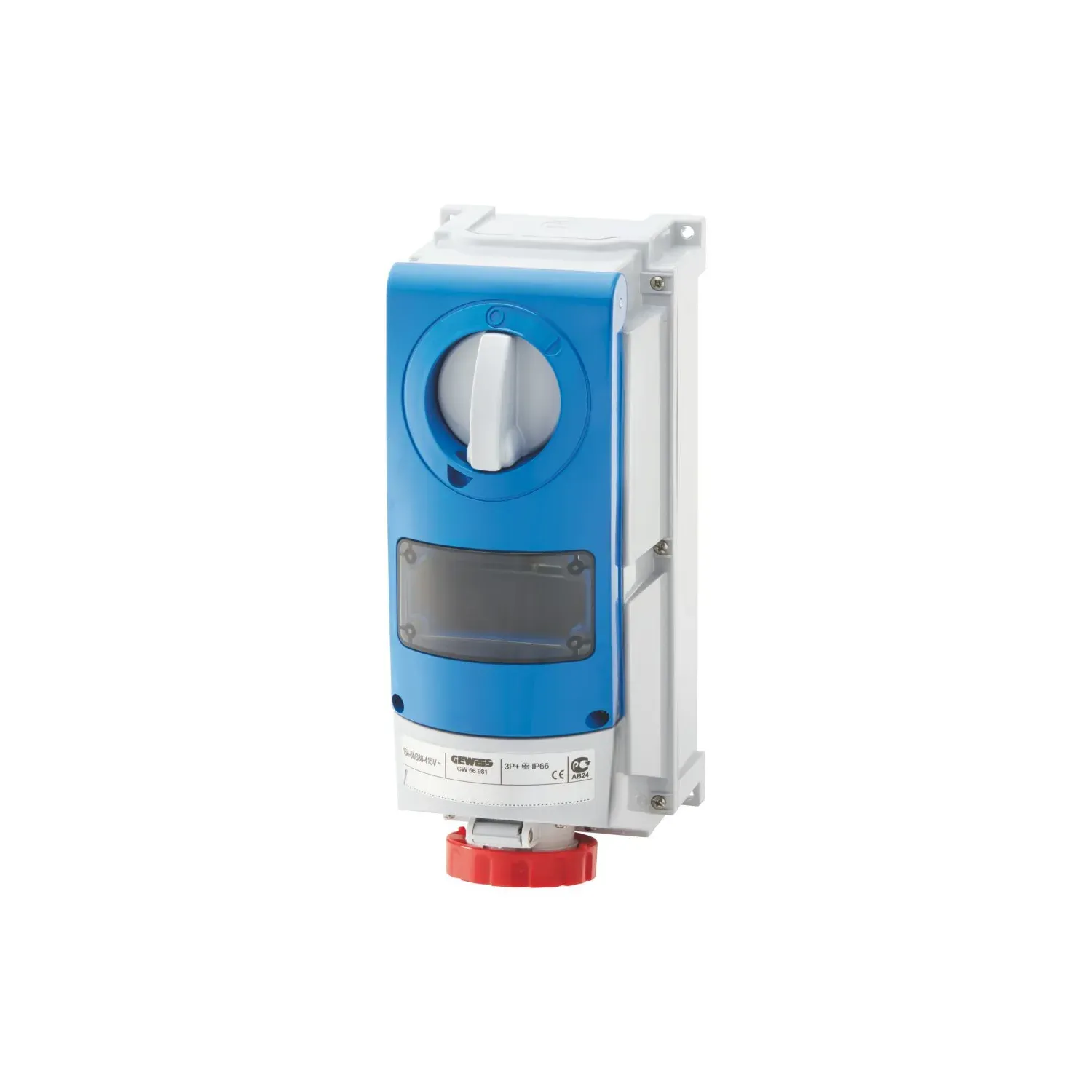

Photo is representative

Gewiss 32A 5P Interlocked Switched Socket Vertical IP66 400V Red

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GW66993
GTIN
Stock status: 8 in stock

priced individually

Net price: £188.62

Gross price

£226.35

Gewiss GW66993 interlocked switched socket-outlet to IEC 60309. Heavy-duty industrial type with rotary switch mechanical interlock. Built for tough environments — IP66 rated, IK10 impact resistant, rated to -25 to +40°C.

  • 32A, 3P+N+E, 380–415V
  • IP66 protection, IK10 mechanical resistance
  • Vertical orientation with back-mounting box
  • Suitable for modular applications
  • Red colour
Specifications

Rated Current

32 A

Poles

3P+N+E

Rated Voltage

380–415 V

Frequency

50/60 Hz

IP Rating

IP66

Mechanical Resistance

> IK10

Operating Temperature

-25 to +40°C

Impact Resistance at -20°C

20 J

Glow Wire Test

850°C

Mounting

Vertical with back-mounting box

Colour

Red

Type of Use

Heavy duty

Documents
Gewiss
