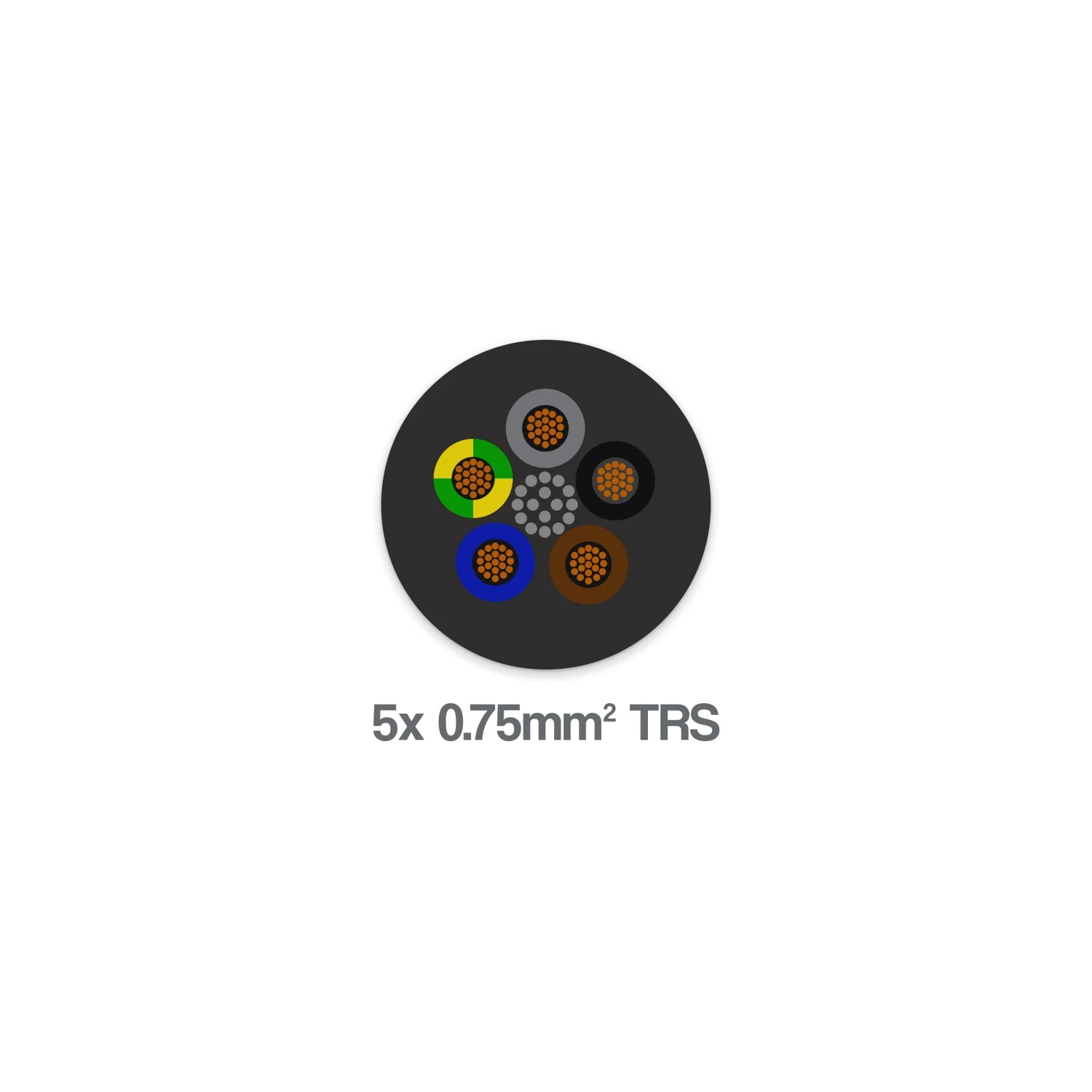

H05RR-F 5G 0.75mm2 Flexible Rubber Cable 300 500V Black

Photo is representative

H05RR-F 5G 0.75mm2 Flexible Rubber Cable 300 500V Black

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 575TRS
GTIN —
Stock status: In stock

priced per meter

Net price: £1.78

Gross price

£2.13

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

H05RR-F 5-core 0.75mm² rubber connection cable. Suited to low mechanical stress applications — household appliances, kitchen equipment, portable tools, and temporary outdoor use in dry, damp, or wet conditions.

Not a heavy-duty site cable. Designed for appliance flex, not fixed wiring or trailing leads under sustained mechanical load.

  • Voltage: 300/500V AC (U₀/U)
  • Cores: 5G 0.75mm² — includes GN-YE protective conductor
  • Temp range: –25°C to +60°C (flexible)
  • Outer sheath: black rubber (EM3 compound)
  • Flame-retardant: IEC 60332-1-2
  • HAR and EAC certified
Specifications

Cable Type

H05RR-F

Cores x Cross-Section

5 G 0.75 mm²

Nominal Voltage

300/500 V AC

Max Operating Voltage (AC L-E)

318 V

Max Operating Voltage (AC L-L)

550 V

Max Operating Voltage (DC L-E)

413 V

Max Operating Voltage (DC L-L)

825 V

Test Voltage (core/core)

2000 V

Conductor

Bare copper, finely stranded, Class 5 (IEC 60228)

Core Insulation

Rubber compound EI4 (DIN EN 50363-1)

Outer Sheath

Rubber compound EM3, black (DIN EN 50363-2-1)

Protective Conductor

Green-yellow (GN-YE), included

Operating Temperature (flexible)

-25°C to +60°C

Operating Temperature (fixed)

-30°C to +60°C

Outer Diameter

7.6 – 9.9 mm

Minimum Bending Radius

7.5 × outer diameter

Flame Retardant

IEC 60332-1-2

Certifications

HAR, EAC

Cable Weight

99.0 kg/km

Copper Weight

36.0 kg/km
