H07RN-F 5 Core 4mm² Flexible Rubber Cable Black 0.6 1kV

Photo is representative

H07RN-F 5 Core 4mm² Flexible Rubber Cable Black 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 54TRS7
GTIN —
Stock status: In stock

priced per meter

Net price: £6.74

Gross price

£8.09

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

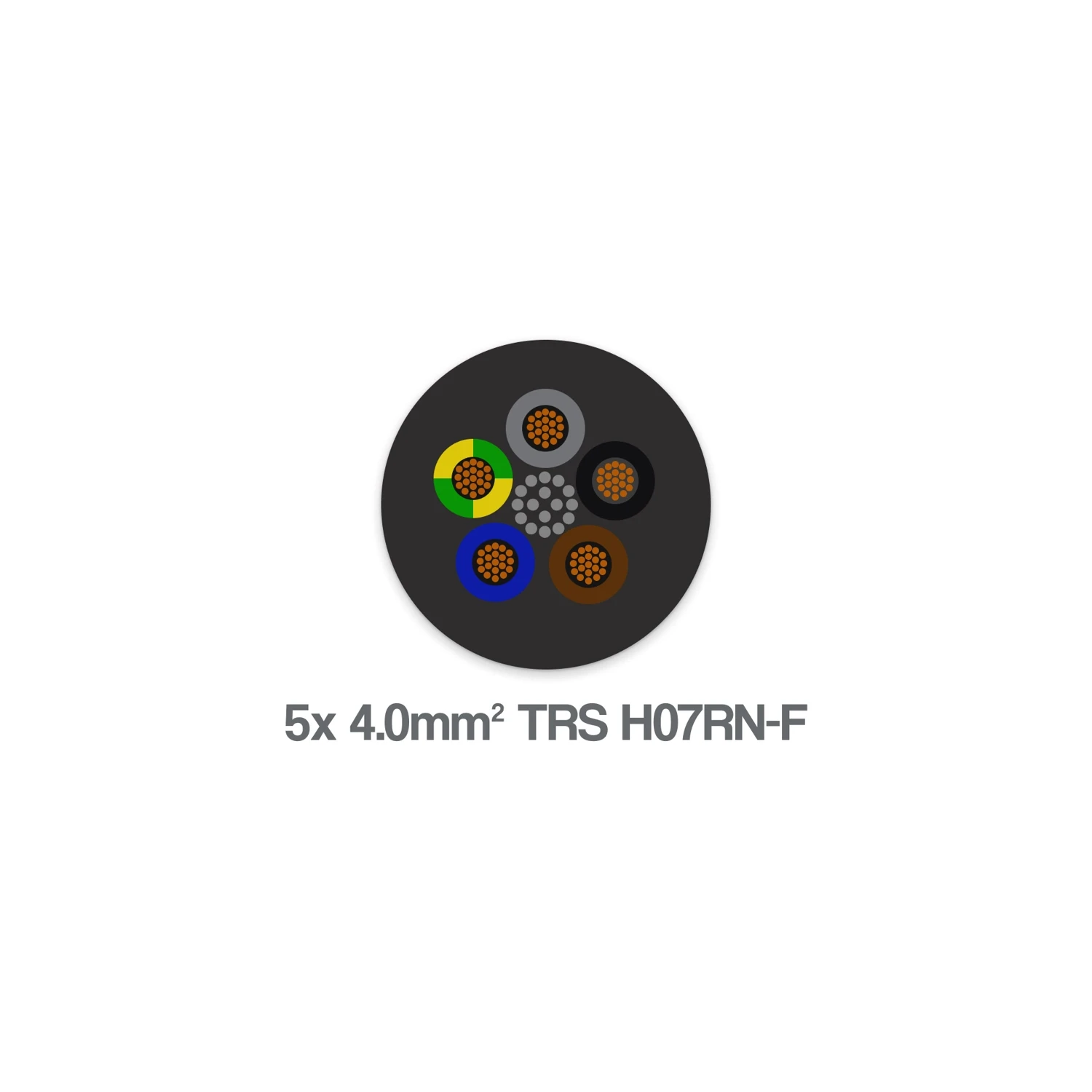

Class 5 stranded copper H07RN-F flex, 5 core 4mm². EPR insulation, polychloroprene rubber sheath. Built for tough environments — work sites, mobile plant, ports, water treatment.

Core colours: Brown, Black, Grey, Blue, Green/Yellow.

  • Voltage: 0.6/1kV (fixed), 450/750V (flexing)
  • Temp range: -30°C to +90°C (fixed), -15°C to +90°C (flexing)
  • OD: 15.6–19.9mm
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

4 mm²

Number of Cores

5

Conductor Type

Class 5 flexible stranded copper

Stranding

56/0.30

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Min Bending Radius (Fixed)

4 x overall diameter

Min Bending Radius (Flexing)

6 x overall diameter

Overall Diameter

15.6–19.9 mm

Weight

485 kg/km

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228

Core Colours

Brown, Black, Grey, Blue, Green/Yellow
