H07RN-F TRS 4 Core 10mm2 Flexible Rubber Cable Black 0.6 1kV

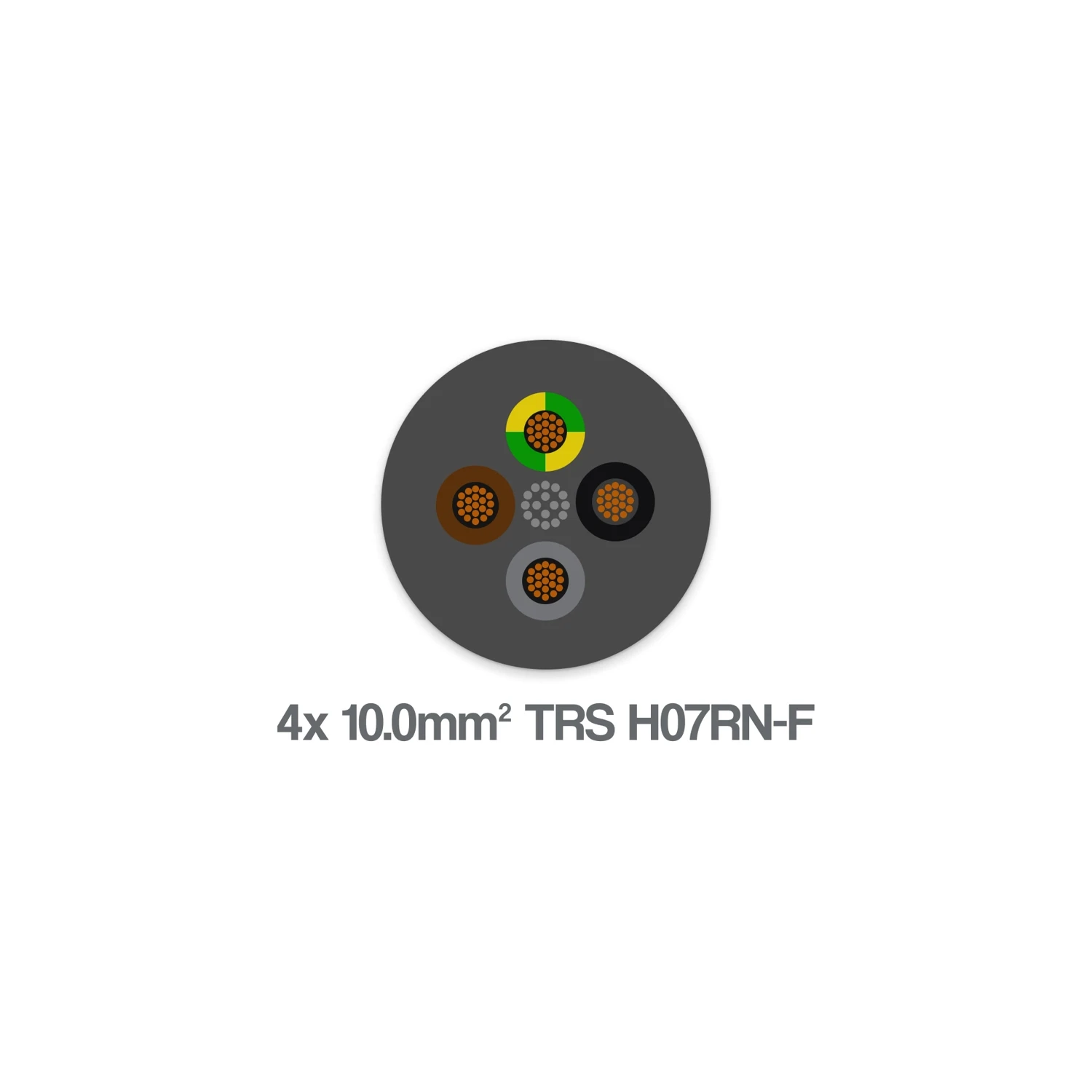

Photo is representative

H07RN-F TRS 4 Core 10mm2 Flexible Rubber Cable Black 0.6 1kV

Product Information

Stock Code 410TRS7
GTIN —
Stock status: In stock

priced per meter

Net price: £13.55

Gross price

£16.26

This item is not available to order online. Contact us to arrange supply.

4 core 10mm² H07RN-F flexible cable. EPR insulated, polychloroprene (CR) outer sheath, black. Built for site equipment, mobile power supplies, industrial machinery, and harsh environments including ports, water treatment, and hot/cold areas.

Class 5 stranded copper throughout. Handles repeated flexing without issue.

  • Voltage: 0.6/1kV (fixed), 450/750V (flexing)
  • Temp range: -30°C to +90°C fixed / -15°C to +90°C flexing
  • OD: 20.9–26.5mm
  • Bend radius: 4x OD fixed, 6x OD flexing
  • Flame retardant: IEC/EN 60332-1-2
Specifications

Conductor Size

10 mm²

Number of Cores

4

Voltage Rating (Fixed)

0.6/1 kV

Voltage Rating (Flexing)

450/750 V

Conductor Type

Class 5 flexible stranded copper

Stranding

80/0.40

Insulation

Ethylene Propylene Rubber (EPR)

Outer Sheath

Polychloroprene Rubber (CR)

Sheath Colour

Black

Overall Diameter

20.9–26.5 mm

Weight

1060 kg/km

Bend Radius (Fixed)

4 x overall diameter

Bend Radius (Flexing)

6 x overall diameter

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
