H07RN-F TRS 5 Core 25mm2 Flexible Rubber Cable 0.6 1kV Black

Photo is representative

H07RN-F TRS 5 Core 25mm2 Flexible Rubber Cable 0.6 1kV Black

Product Information

Stock Code TRS525
GTIN —
Stock status: In stock

priced per metre

Net price: £41.11

Gross price

£49.33

This item is not available to order online. Contact us to arrange supply.

Heavy flexible rubber cable for portable power supplies, site equipment, and industrial machinery. EPR insulated with a polychloroprene rubber outer sheath — built to handle mechanical stress in demanding environments including ports, water treatment plants, and hot/cold areas.

Sold per metre. Check your drum length requirements before ordering.

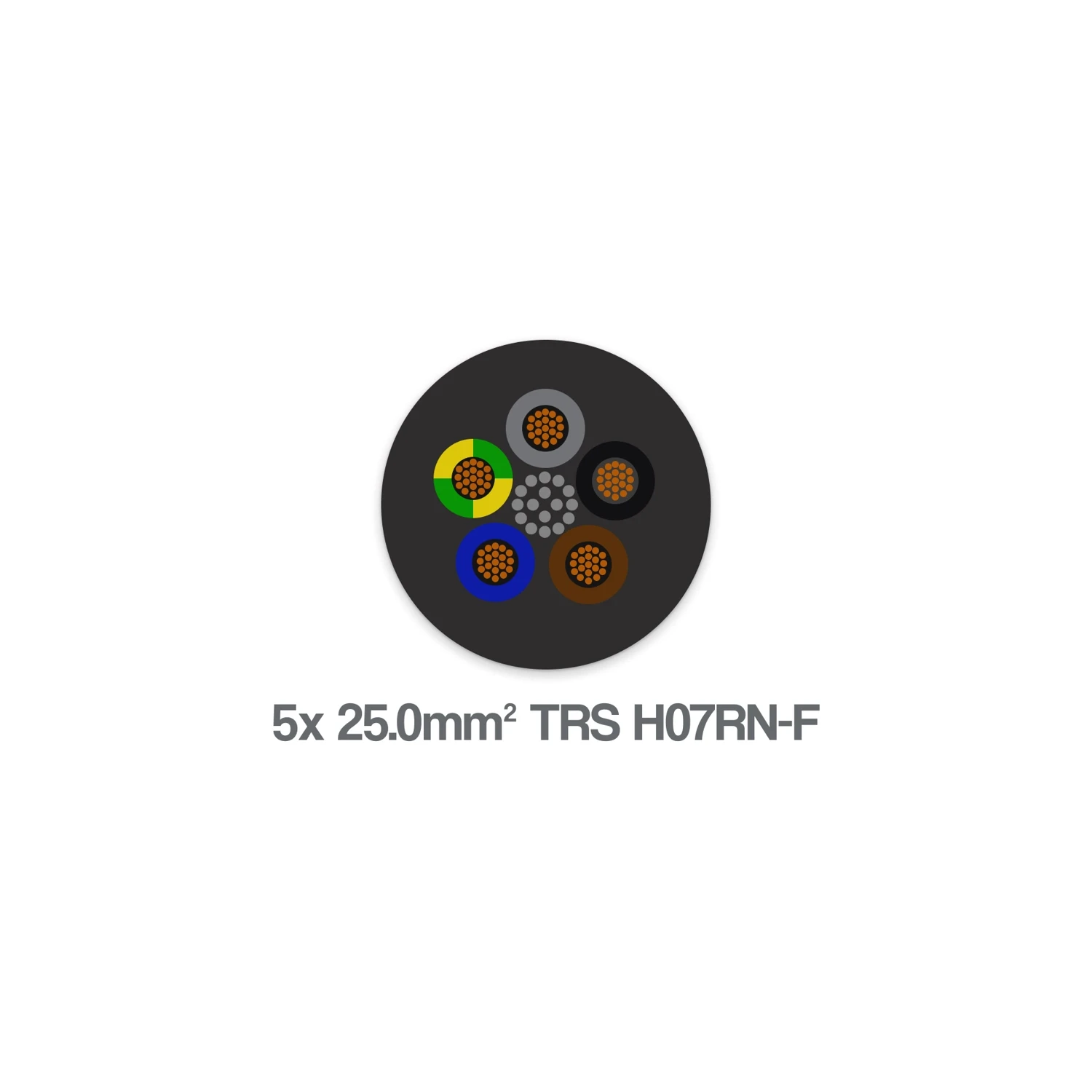

  • 5 core: Brown, Black, Grey, Blue, Green/Yellow
  • Class 5 stranded copper — 196⁄0.40mm
  • OD: 32–40.4mm
  • Temp range: -30°C to +90°C fixed, -15°C to +90°C flexing
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Conductor Size

25mm²

Number of Cores

5

Conductor Type

Class 5 flexible stranded copper

Stranding

196/0.40mm

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Core Colours

Brown, Black, Grey, Blue, Green/Yellow

Overall Diameter

32–40.4mm

Weight

2470 kg/km

Temp Range (Fixed)

-30°C to +90°C

Temp Range (Flexing)

-15°C to +90°C

Min Bending Radius (Fixed)

4 x overall diameter

Min Bending Radius (Flexing)

6 x overall diameter

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
