ADA306G - Hager 1p 6ka Rcbo B Curve -6a 30ma Type A

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

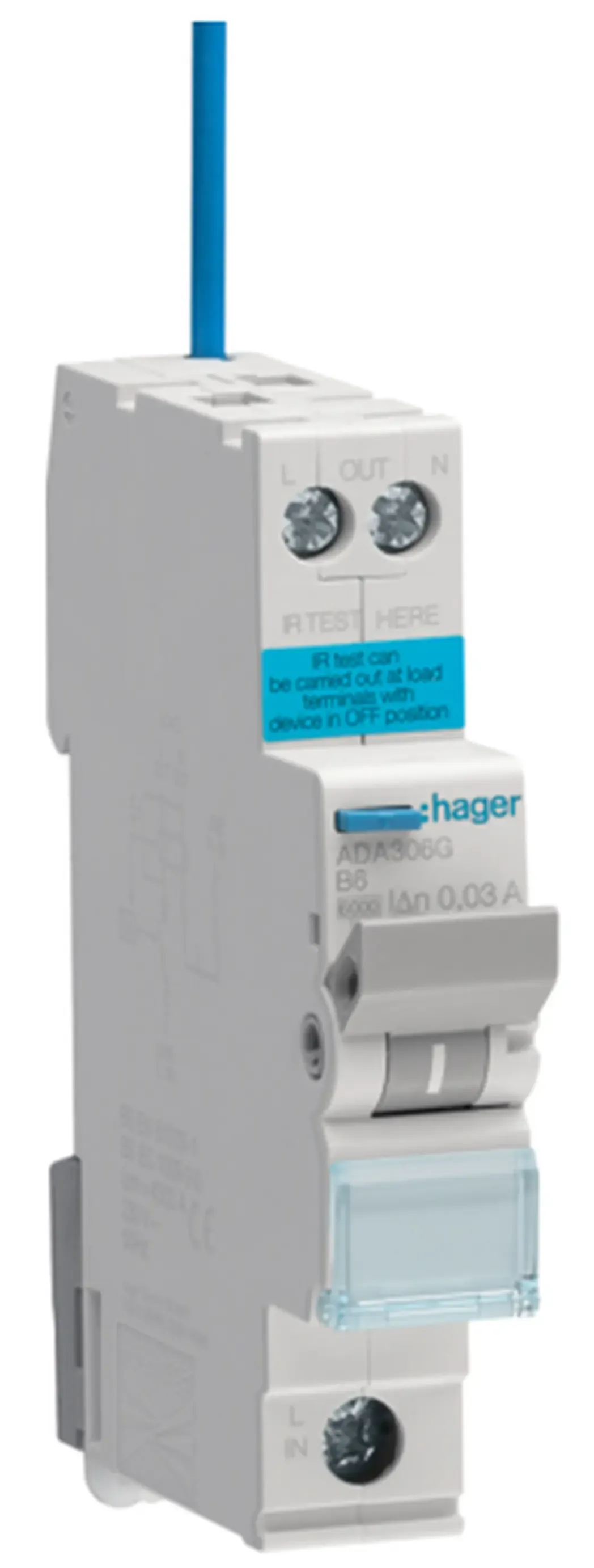

Hager 1p 6ka Rcbo B Curve -6a 30ma Type A

The Hager 1P 6KA RCBO B Curve is a reliable electronic device designed for protecting circuits from overcurrents and earth leakage faults. This 1 pole RCBO features a breaking capacity of 6kA, a rated current of 6A, and operates at a frequency of 50Hz. It is suitable for both AC and pulsating DC systems.

Stock Code ADA306G
Out of stock

Product Features

  • Sku

    ADA306G

  • Curve

    B

  • Frequency

    50 Hz

  • Standard Text

    EN 61009-1 IEC 61009-2-2

  • Rating Current

    6 A

  • Number of Poles

    1 P

  • Number of Modules

    1

  • Residual Current Type

    A

  • Depth of Installed Product

    70 mm

  • Height of Installed Product

    92 mm

  • Rated Operational Voltage Ue

    230 V

  • Rated Short Circuit Breaking Capacity Icn Under 230V AC

    6 kA

Brand

Hager
