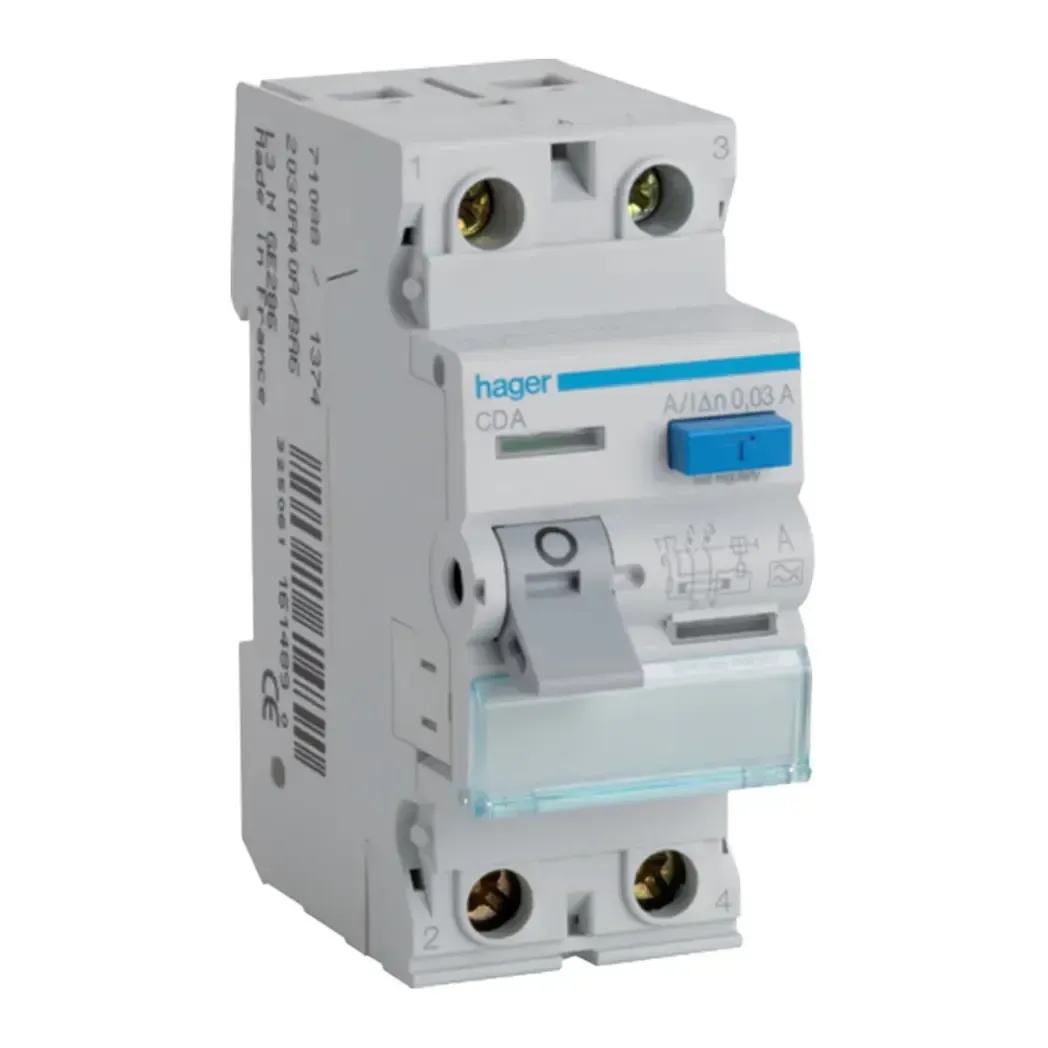

CDA240U - Hager 2 Pole 40 Amp 30mA A Class RCD/RCCB Cda240u

Photo is representative

Hager 2 Pole 40 Amp 30mA A Class RCD/RCCB Cda240u

The Hager 2 Pole 40 Amp 30mA A Class RCD/RCCB CDA240U is a reliable electrical component with a rated current of 40 A. It features 2 poles and dimensions of 70 mm depth, 83 mm height, and 35 mm width. This RCD/RCCB provides protection against electrical faults and ensures safe operation.

Product Information

Stock Code CDA240U
MPN CDA240U
GTIN 3250611614906
Stock status: In stock
Price: £44.99
incl. VAT, 20% priced individually

Product Features
SKU CDA240U
Standard BS 61008-1 EN 61008-1
Frequency 50 Hz
Rated Current 40 A
Number of Poles 2
Neutral Position Right
Number of Modules 2
Operating Temperature -25 to 40°C
Residual Current Type A
Total Power Loss Under IN 6.24 W
Depth of Installed Product 70 mm
Residual Current Trip Mode Undelayed
Residual Operating Current 30 mA
Width of Installed Product 35 mm
Height of Installed Product 83 mm
Short-Time Delayed Tripping No
Breaking and Opening Capacity 1.5 kA
Rated Conditional Short-Circuit Current Inc According to EN 61008-1 6 kA

Brand

Hager
