SBE800 - Hager Consumer Unit 2 Row 24 Mod C/W Door & Backplate IP30 SBE800

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

Hager Consumer Unit 2 Row 24 Mod C/W Door & Backplate IP30 SBE800

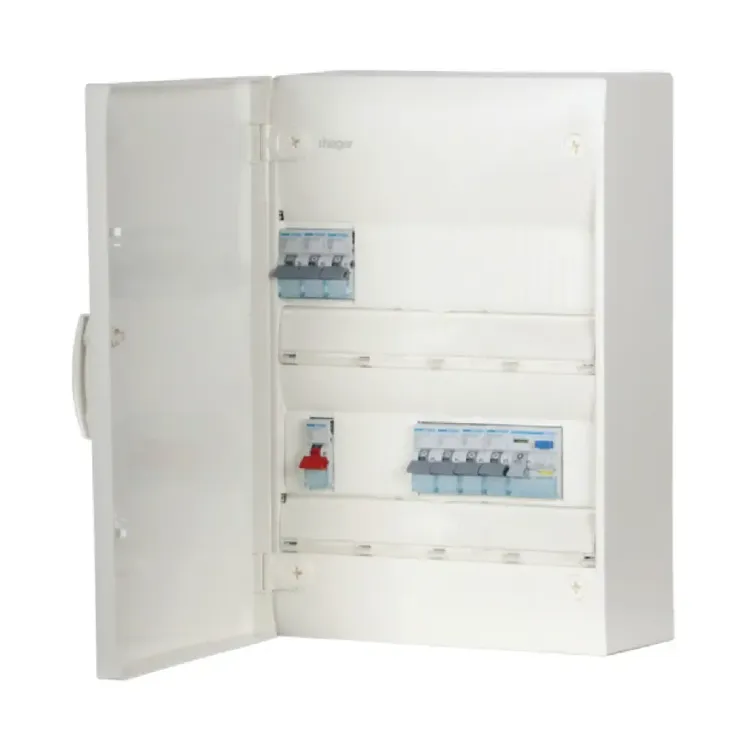

The Hager Consumer Unit IP30 SBE800 is a versatile and durable 2 row, 24 module enclosure designed for residential and commercial electrical installations. It is made of insulated material with a white finish and features a fixed DIN rail for devices with a maximum shoulder measurement of 45mm. The unit comes with premarked cable entries on the top, bottom, and sides, along with options for additional connection assemblies, cable trunking, back plates, plain and transparent doors, and door locks. Dimensions are h. 375 x w. 250 x d. 103 mm.

Stock Code SBE800
Out of stock

Product Features

  • RCD

    1 x 40A (CDA240U) - Not Supplied

  • SKU

    SBE800

  • MCBs

    1 x 32A (MBN132A), 2 x 10A (MBN110A), 4 x 20A (MBN120A)

  • Color

    White

  • Doors

    Plain, Transparent

  • DIN Rail

    Fixed DIN Rail

  • Isolator

    1 x 80A (SBR180) - Not Supplied

  • IP Rating

    IP30

  • Dimensions

    h. 375 x w. 250 x d. 103 mm

  • Door Locks

    Included

  • Cable Entries

    Top, Bottom, Side

  • Module Capacity

    24 Modules

  • Assembly Options

    Connection Assemblies, Cable Trunking, Back Plates

  • Insulation Material

    Insulated Material

Brand

Hager
