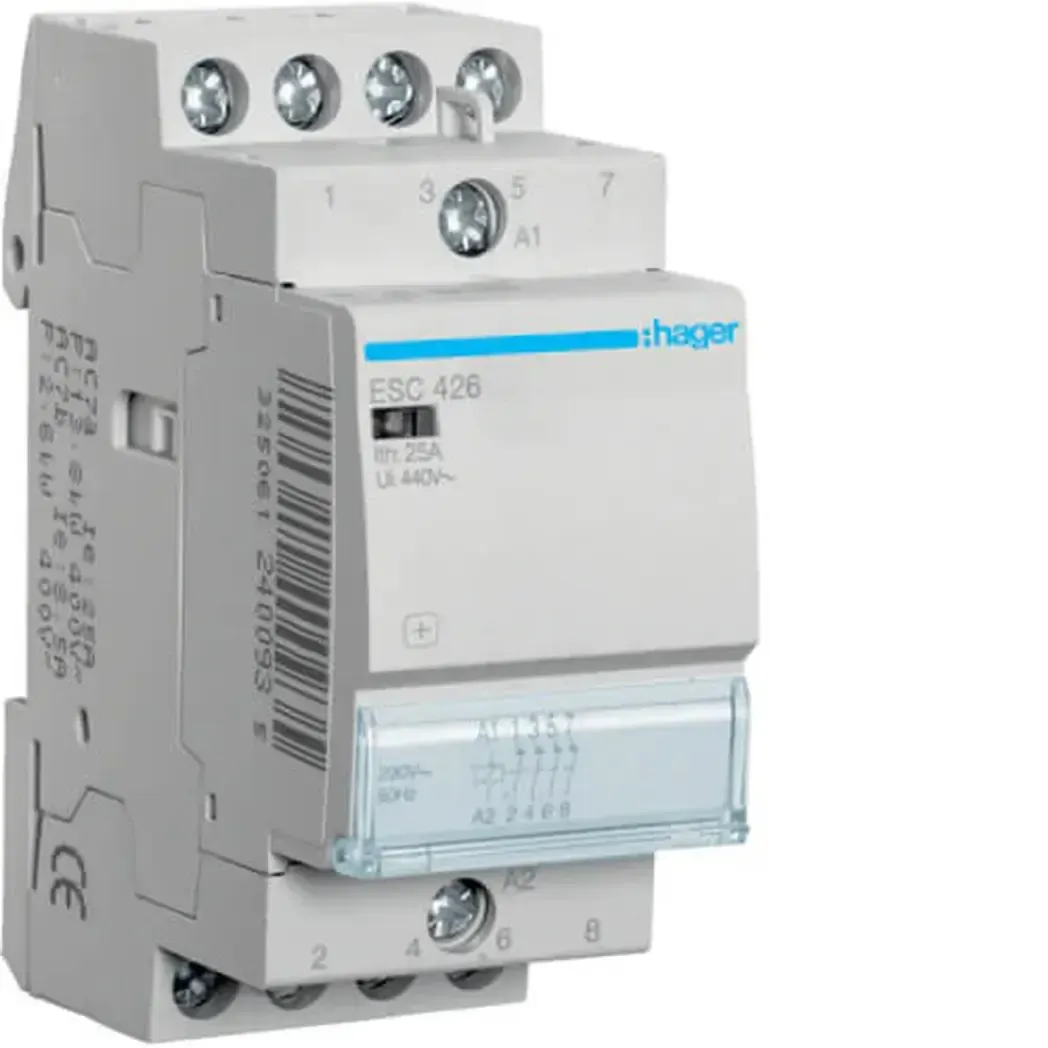

ESC426 - Hager Contactor 25A 4NC 230V ESC426

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

Hager Contactor 25A 4NC 230V ESC426

The Hager Contactor ESC426 is a robust 25A 4-pole contactor with 4 normally closed contacts, designed for 230V applications. It offers reliable performance with a rated operational voltage of 400V and a frequency of 50Hz, ensuring compatibility with standard electrical systems. The contactor is built to withstand a rated insulation voltage of 440V and a rated impulse withstand voltage of 4kV, providing a high level of safety and durability. With dimensions of 60mm in depth, 83mm in height, and 35.75mm in width, it is designed for efficient installation in various electrical setups. The contactor features a total power loss under IN of 6W and a power dissipation per coil of 1.5W, contributing to energy efficiency. It is capable of controlling fluorescent and incandescent bulbs with a maximum power of 810VA and 1900W respectively, making it versatile for different lighting applications. The contactor is equipped with screw-type connections for flexible conductors up to 6mm and rigid cables up to 10mm, ensuring secure and reliable connections. It complies with European WEEE directive and offers a protection index of IP2X and an insulation class of II. The operating temperature range of -10 to 50°C ensures its functionality in various environmental conditions.

Stock Code ESC426
Few in stock
Price 42.51 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    ESC426

  • Type

    Contactor

  • Brand

    Hager

  • Depth

    60mm

  • Poles

    4

  • Width

    35.75mm

  • Height

    83mm

  • Voltage

    230V

  • Amperage

    25A

  • Contacts

    4NC

  • Frequency

    50Hz

  • PowerLoss

    6W

  • InsulationClass

    II

  • ProtectionIndex

    IP2X

  • TighteningTorque

    1-2Nm

  • ElectricEndurance

    30000 cycles

  • InsulationVoltage

    440V

  • OperationalVoltage

    400V

  • RigidCableCrossSect

    1-10mm

  • CoilPowerDissipation

    1.5W

  • MechanicalOperations

    1000000

  • OperatingTemperature

    -10 to 50°C

  • FluorescentLampsPower

    810VA

  • IncandescentLampsPower

    1900W

  • ImpulseWithstandVoltage

    4kV

  • FlexibleConductorCrossSect

    1-6mm
