Photo is representative

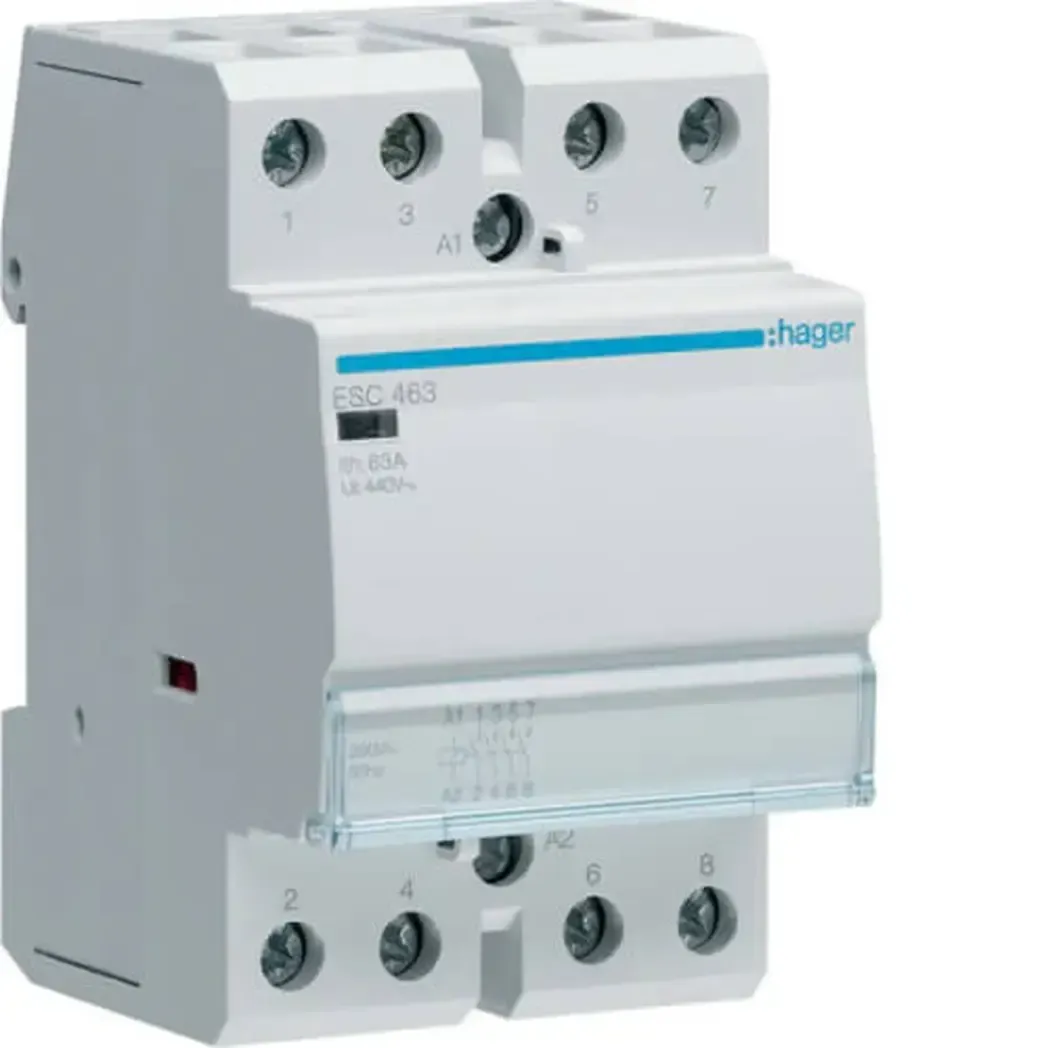

Hager Contactor 63A 4NC 230V ESC463
The Hager Contactor 63A 4NC 230V ESC463 is a reliable electrical contactor suitable for various applications. With rated operational voltage of 400V and insulation voltage of 440V, this contactor ensures safe and efficient electrical connections. It offers excellent power dissipation, endurance up to 30,000 cycles, and can handle different types of bulbs including fluorescent and incandescent lamps.
Stock Code:
ESC463
Online:
In stock
Price 114.66 £
incl. VAT, 20%
priced individually
Product Features
Safety | Protection Index IP2X, Protection Class: Class II |
---|---|
Endurance | 30,000 cycles |
Equipment | Can be Accessorized |
Standards | European Directive WEEE |
Connection | Flexible Conductor: 1.5/16mm, Rigid Cable: 1.5/25mm, Type: Screw |
Dimensions | 60 mm Depth, 85 mm Height, 54 mm Width |
Use Conditions | Operating Temperature: -10 to 50°C |
Total Power Loss | 21.5 W |
Type of Contacts | 4NO |
Number of Contacts | 4 |
Installation Mounting | Tightening Torque - Coil: 2.5 Nm, Power: 3.5 Nm |
Rated Insulation Voltage | 440 V |
Rated Operational Voltage | 400 V |
Number of Mechanical Operations | 1,000,000 |
Max. Power with Fluorescent Lamps | 2100 VA |
Max. Power with Incandescent Lamps | 6500 W |
