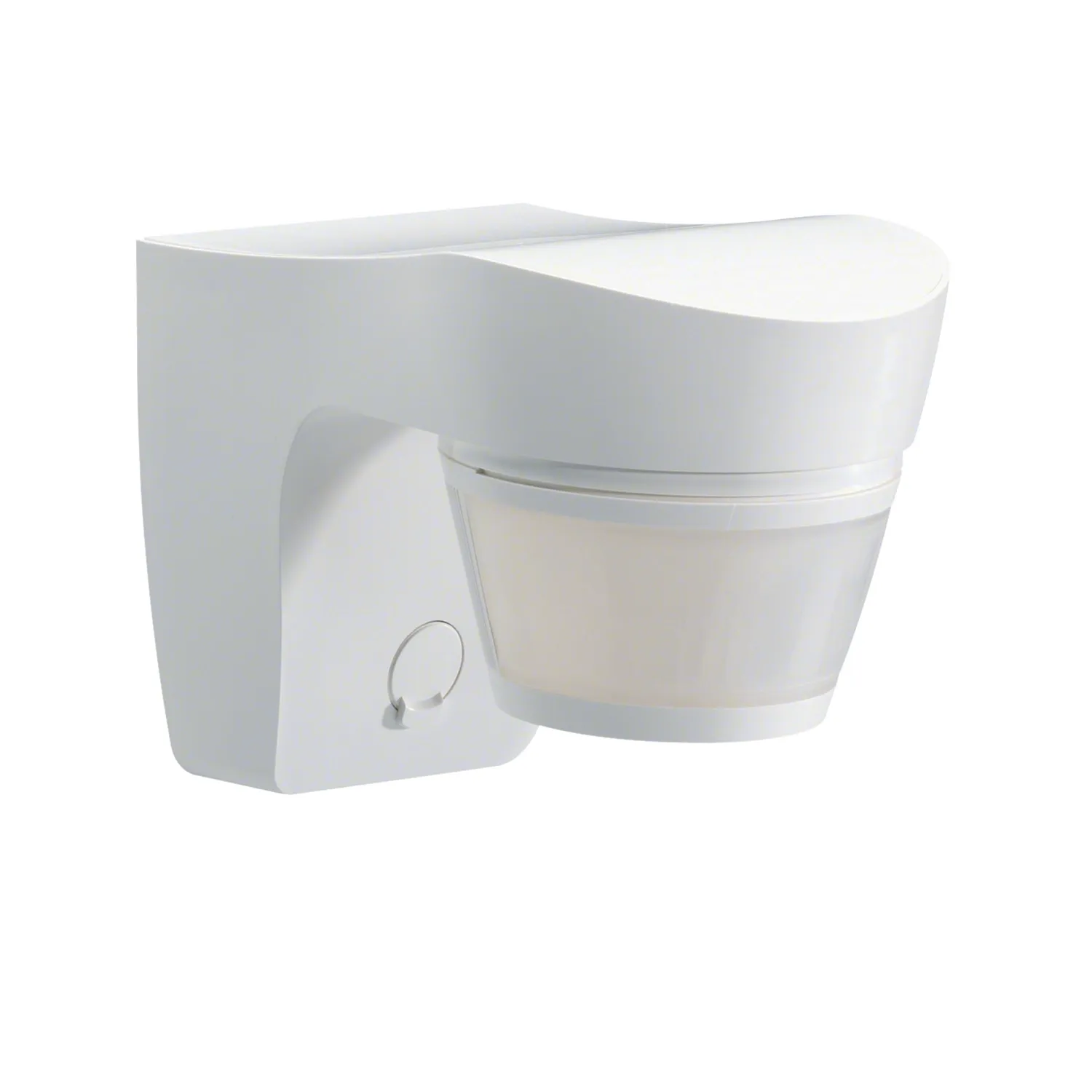

Hager EE830 200° Infrared Motion Detector IP55 Wall Mount White

Photo is representative

Hager EE830 200° Infrared Motion Detector IP55 Wall Mount White

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code EE830
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £52.83

Gross price

£63.39

Infrared motion detector for wall and ceiling mounting. Switches lighting on movement detection across a 200° arc. Plug-in terminal connection. Can run standalone, as main unit, or as extension.

  • 200° detection angle
  • Time delay adjustable 5s to 15 min
  • Brightness threshold 5–1000 lx
  • IP55, suitable for outdoor
  • Operating temp –20°C to 55°C
Specifications

Detection Angle

200°

Sensor Type

Infrared motion detector

Time Delay

5s to 15 min (adjustable)

Brightness Threshold

5–1000 lx (adjustable)

Frequency

50–60 Hz

IP Rating

IP55

Operating Temperature

–20°C to 55°C

Mounting Type

Surface mount (wall and ceiling)

Recommended Installation Height

2.50 m

Width

83 mm

Colour

White

Material

Plastic

Connection Type

Plug-in terminals

Outdoor Rated

Yes
