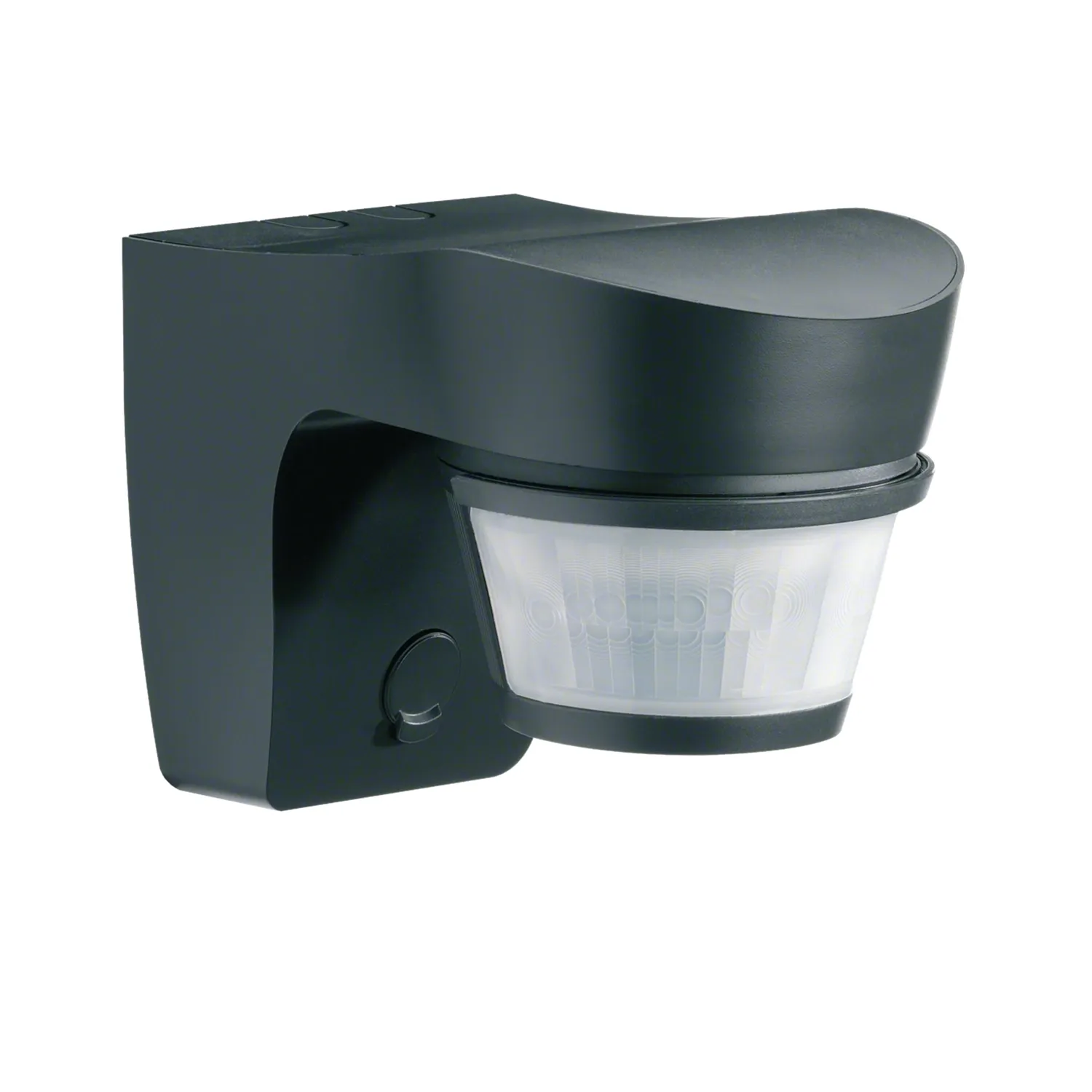

Hager EE831 Surface PIR 200° IP55 Motion Detector - Anthracite

Photo is representative

Hager EE831 Surface PIR 200° IP55 Motion Detector - Anthracite

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code EE831
GTIN
Stock status: 9 in stock

priced individually

More arriving soon

Net price: £47.41

Gross price

£56.89

Surface-mounted infrared PIR motion detector. Detects movement across 200° and triggers on adjustable brightness threshold. Plug-in terminal connections — no soldering. Works as standalone unit, main device, or extension in multi-sensor setups.

  • 200° detection angle, IP55 weatherproof
  • Adjustable lux sensitivity (5–1000 lx) and time delay (5s–15 min)
  • Wall or ceiling mount, corner installation with adapter
  • Operating range −20°C to 55°C, rated for outdoor use
Specifications

Product Code

EE831

Sensor Type

Infrared movement detector

Detection Angle

200°

IP Rating

IP55

Response Brightness Adjustable

5–1000 lx

Time Delay

5 s–15 min

Frequency

50–60 Hz

Width

83 mm

Recommended Installation Height

2.50 m

Operating Temperature

−20°C to 55°C

Colour

Anthracite

Material

Plastic

Mounting Type

Surface mounting (wall, ceiling, corner with adapter)

Connection

Plug-in terminals

Outdoor Rated

Yes
