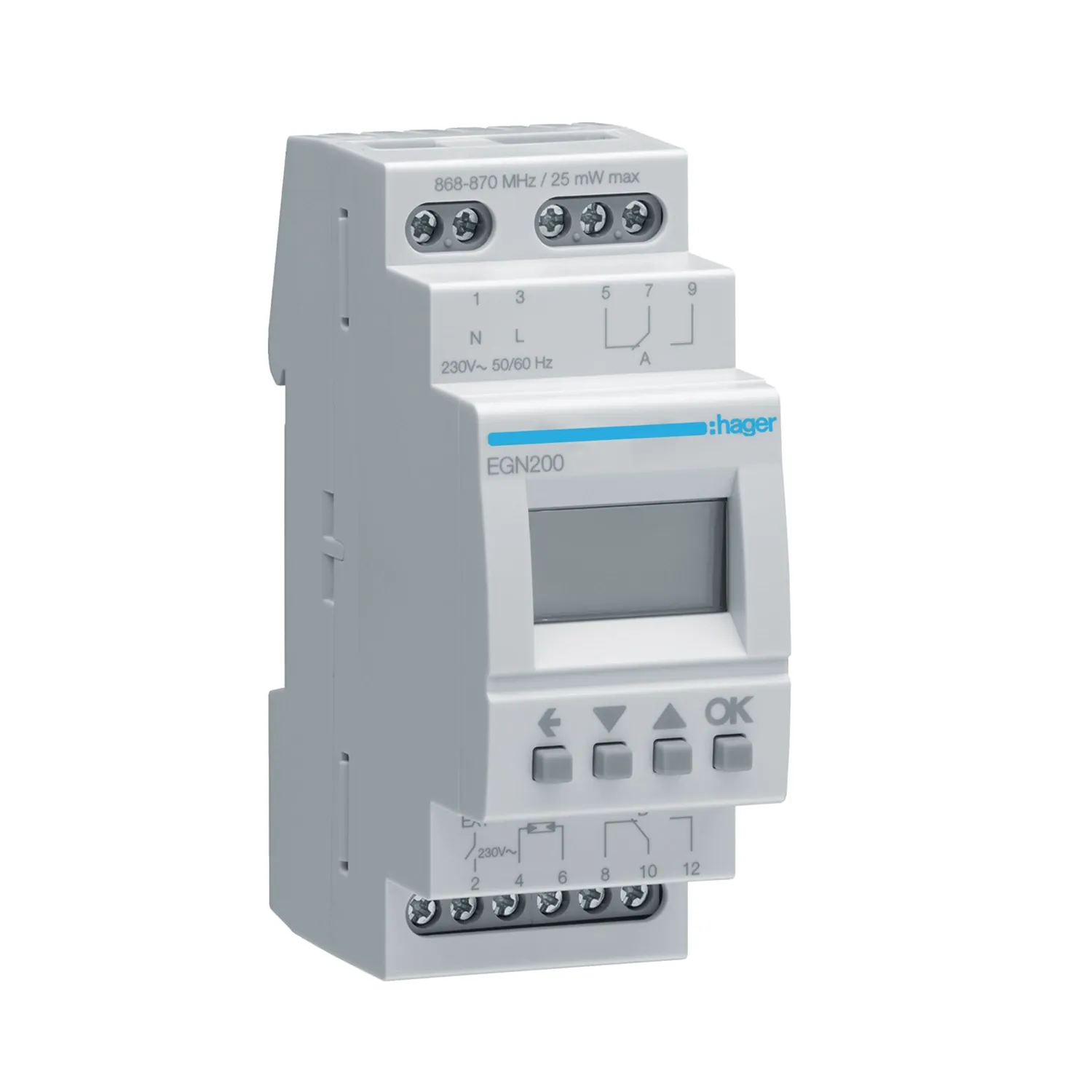

Hager EGN200 2-Channel Bluetooth Multifunction Time Switch - 230V DIN Rail

Photo is representative

Hager EGN200 2-Channel Bluetooth Multifunction Time Switch - 230V DIN Rail

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code EGN100
GTIN
Stock status: In stock

priced individually

Net price: £96.89

Gross price

£116.26

Hager EGN200 multifunction time switch for DIN rail. Two independent switching channels with changeover contacts, controlled via Bluetooth or manual override. Runs daily, weekly, and annual programmes—no network sync needed, just quartz accuracy.

Solid for domestic lighting control, heating, and pump circuits. Set it and forget it, or tweak schedules from your phone.

  • 230V rated, handles 2300W incandescent/halogen, 1000W fluorescent in series
  • Quartz-synchronised, 0.25s per day accuracy
  • 10-year battery backup, impulse programme support
  • Screw terminals accept 0.2–2.5mm² flexible or 0.2–4mm² rigid cable
Specifications

Voltage

230–240V AC

Frequency

50–60 Hz

Number of Channels

2

Contact Type

1× changeover per channel

Max Load (Incandescent/Halogen)

2300W

Max Load (Fluorescent Series)

1000W

Max Load (Fluorescent Parallel Compensated)

400VA

Time Synchronisation

Quartz

Accuracy

±0.25s per day

Programmes

Daily, weekly, annual

Power Reserve

10 years

Operating Temperature

-5°C to +45°C

Terminal Type

Screw

Cable Range

0.2–2.5mm² flexible, 0.2–4mm² rigid

Minimum Interval Between Switches

1 minute

Module Width

2 modules

Dimensions (H×W×D)

90 × 35.80 × 61.60 mm

RoHS Compliant

Yes

Documents
Hager
