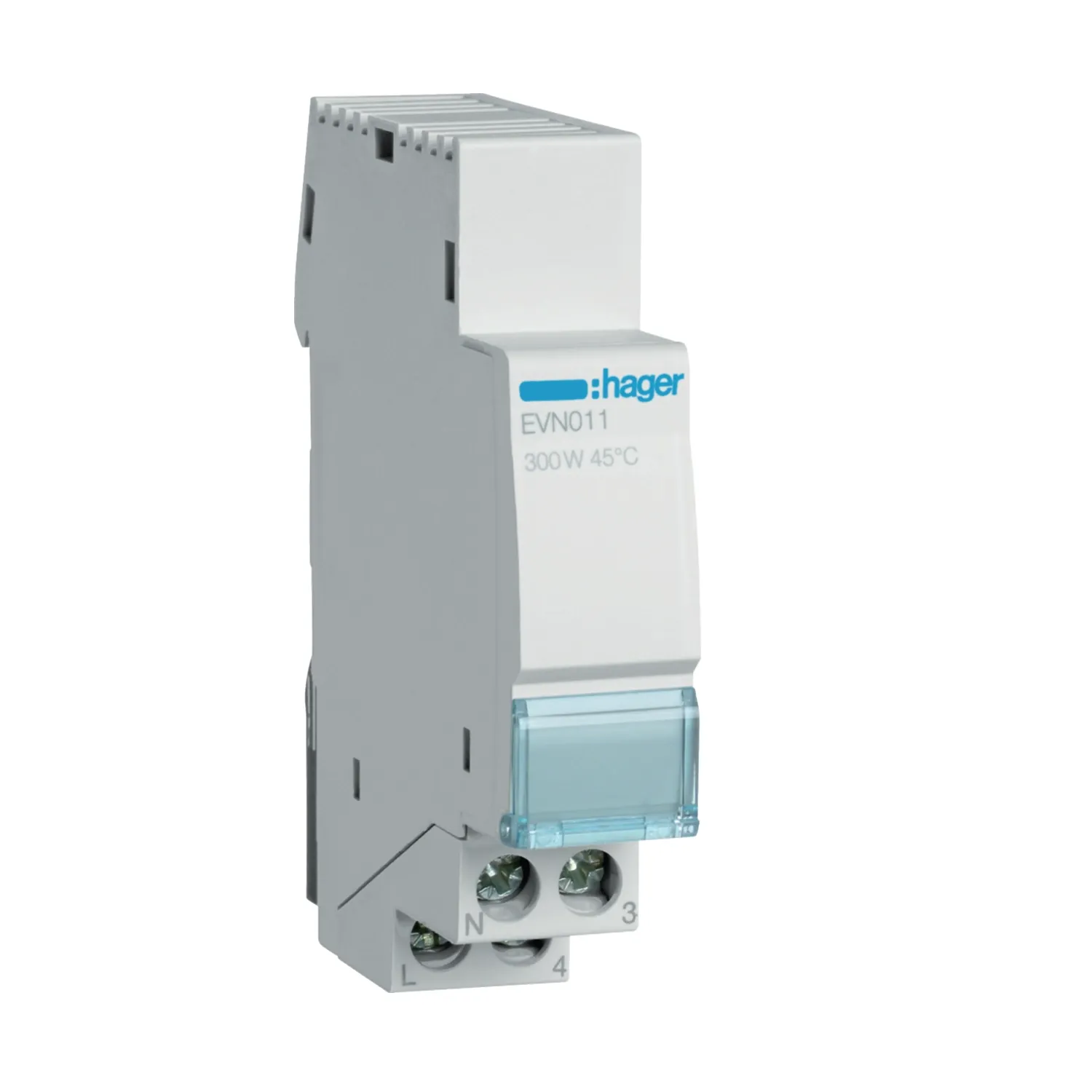

Hager EVN011 Remote Control Dimmer 300W DIN Rail Grey

Photo is representative

Hager EVN011 Remote Control Dimmer 300W DIN Rail Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code EVN011
GTIN
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £78.30

Gross price

£93.96

Hager EVN011 remote control dimmer for DIN rail installation. Handles up to 300W incandescent and halogen lamps, or 60W dimmable LED. Operates on 230V AC, 50–60 Hz. Single push button control with automatic load detection. Built-in electronic short-circuit and overload protection.

  • 300W incandescent/halogen or 60W LED capacity
  • 230V AC, 50–60 Hz
  • Single push button operation
  • Screw terminal connection: 1.5–6 mm² (rigid or flexible)
Specifications

Operating Voltage

230V AC

Frequency

50–60 Hz

Incandescent/Halogen Load

300W

Dimmable LED Load

60W

Control Element

Single push button

Dimming Principle

Automatic load detection

Terminal Connection

Screw terminals, 1.5–6 mm² (rigid or flexible)

Protection

Electronic short-circuit and overload protection

Operating Temperature

-10°C to +45°C

Mounting

DIN rail

Module Width

1 module (17.5mm)

Dimensions

90mm H × 17.5mm W × 65mm D

Colour

Grey (RAL 7035)

RoHS Compliant

Yes
