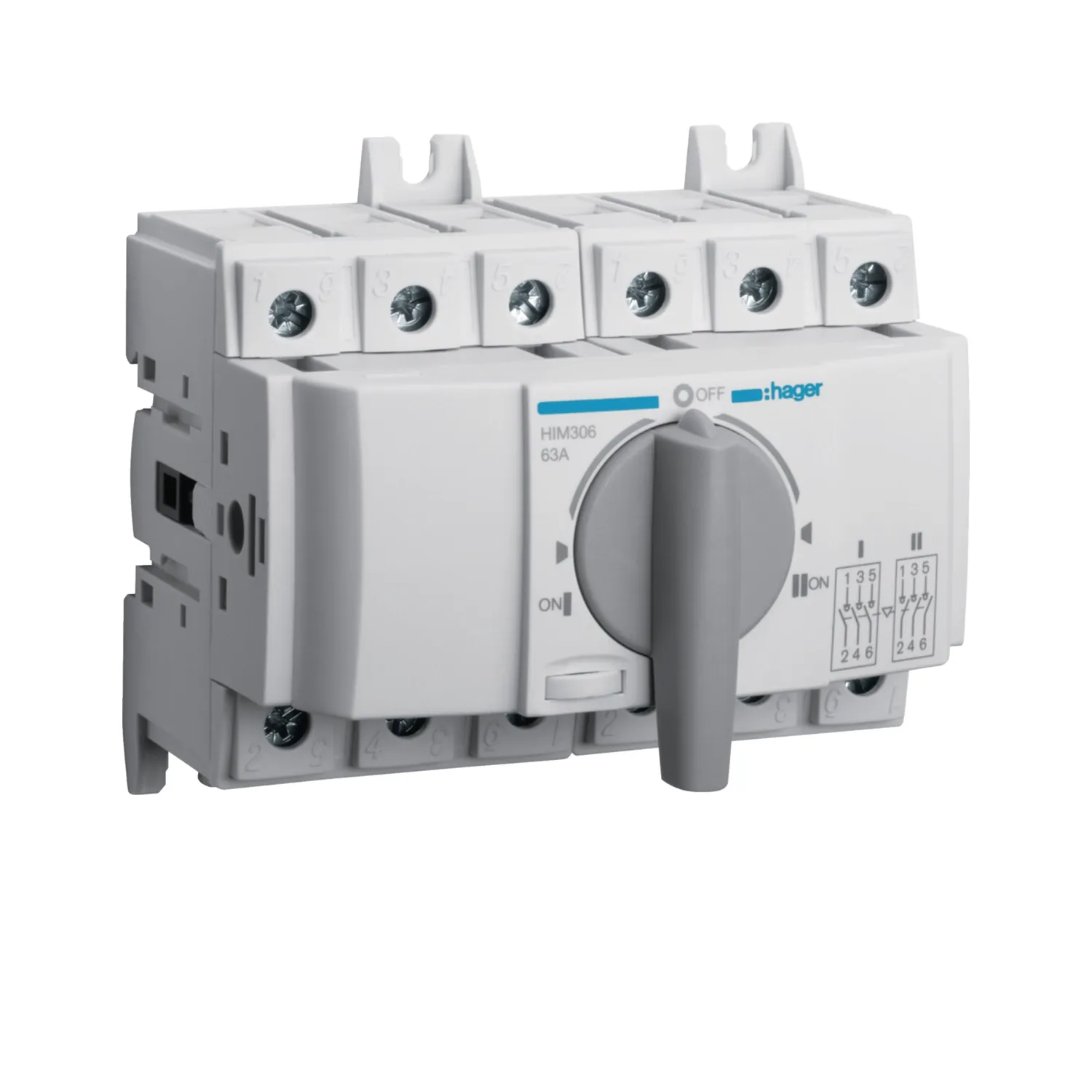

Hager HIM306 3P 63A Changeover Switch 380-415V IP20

Photo is representative

Hager HIM306 3P 63A Changeover Switch 380-415V IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code HIM306
GTIN
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £142.28

Gross price

£170.74

Hager HIM306 is a 3-pole modular changeover switch rated 63A. Sits on DIN rail, 6 modules wide. Operates on 380-415V AC, 50-60Hz. Short rotary handle, interlockable door.

  • Rated current: 63A
  • Conditional short-circuit current (with gL-gG fuses): 50kA
  • Operating voltage: 380-415V AC
  • IP20 ingress protection
  • Temperature range: -20°C to 70°C
Specifications

Rated Current

63A

Poles

3P

Rated Operational Voltage

380-415V AC

Rated Insulation Voltage

800V

Rated Impulse Withstand Voltage

8000V

Conditional Short-Circuit Current (gL-gG fuses)

50kA

Short-Time Withstand Current (Icw)

1.50kA (IEC 60947)

Rated Operational Power (AC1 @ 400V)

41000W

IP Rating

IP20

Frequency

50-60Hz

Operating Temperature

-20°C to 70°C

Module Width

6 modules

Dimensions (H × W × D)

93.5mm × 105mm × 110mm

Terminal Conductor Range

2.5-35mm² (flexible and rigid)
