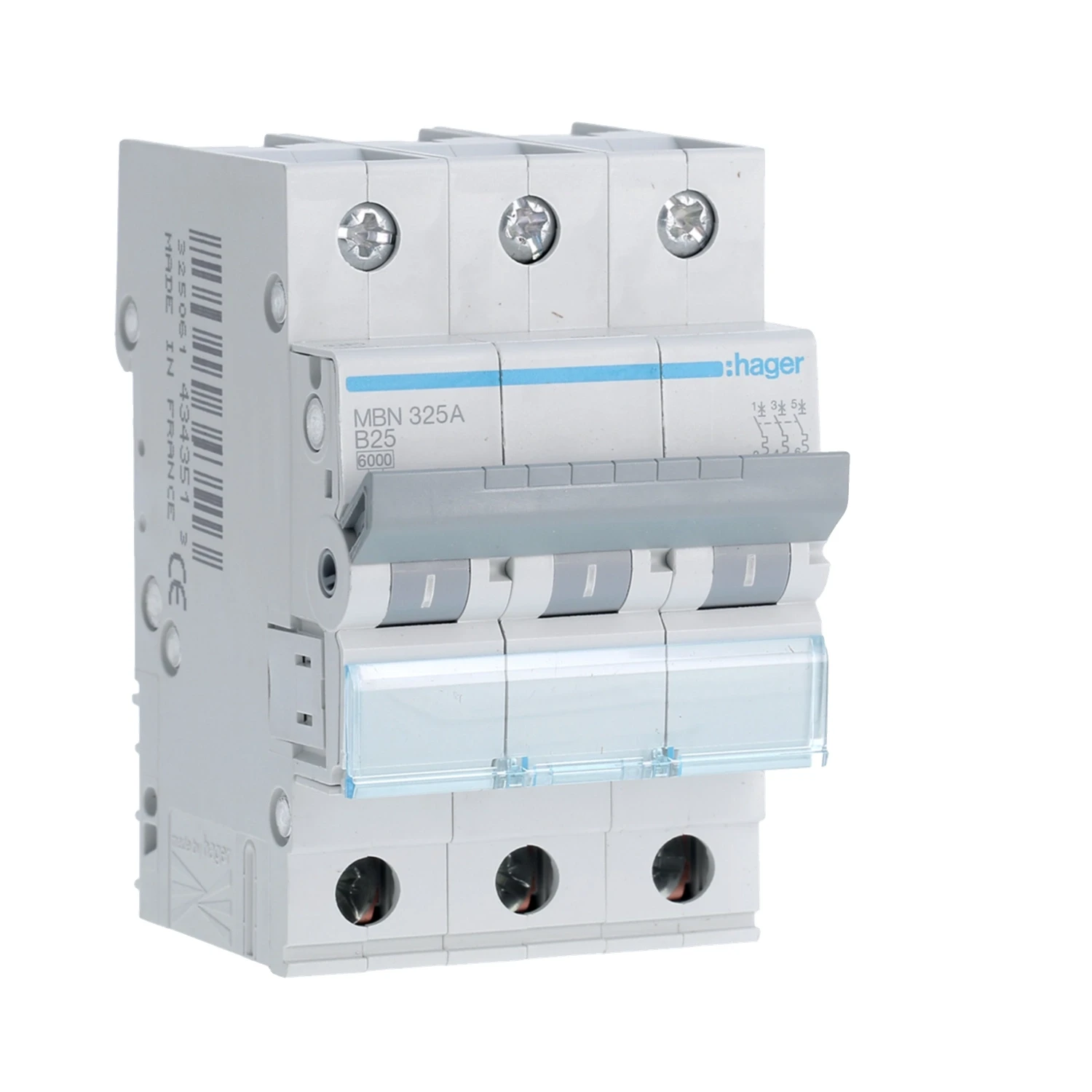

Hager MBN325A MCB 3P 25A B Curve 6kA 400V AC 3 Module

Photo is representative

Hager MBN325A MCB 3P 25A B Curve 6kA 400V AC 3 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MBN325A
GTIN 3250614343513
Stock status: 2 in stock

priced individually

Net price: £40.70

Gross price

£48.84

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Three-pole MCB for AC distribution and overcurrent protection in residential and commercial boards. Mounts on 35mm DIN rail, takes up 3 modules.

B-curve suits general final circuits with low inrush — lighting, heating, distribution sub-circuits. Terminal accepts rigid conductors up to 35mm² and flexible up to 25mm².

  • 25A In, B-curve, 3P
  • 6kA Icn at 400V AC (IEC 60898-1)
  • 10kA Icu at 400V AC (IEC 60947-2)
  • Operating temp: -25°C to +70°C
  • IP20, Pollution Degree 2
Specifications

Rated Current (In)

25 A

Trip Curve

B

Poles

3P

Rated Voltage (Ue)

230–400 V AC

Breaking Capacity Icn at 400V AC (IEC 60898-1)

6 kA

Breaking Capacity Icn at 230V AC (IEC 60898-1)

10 kA

Breaking Capacity Icu at 400V AC (IEC 60947-2)

10 kA

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

Frequency

50–60 Hz

Number of Modules

3

Terminal Capacity — Rigid Conductors

1–35 mm²

Terminal Capacity — Flexible Conductors

1–25 mm²

Tightening Torque

2.80 Nm

IP Rating

IP20

Pollution Degree

2

Energy Limitation Class (I²t)

3

Operating Temperature

-25°C to +70°C

Height

83 mm

Width

52.50 mm

Depth

70 mm

RoHS Compliant

Yes

Documents

datasheet Hager MBN325A Datasheet
