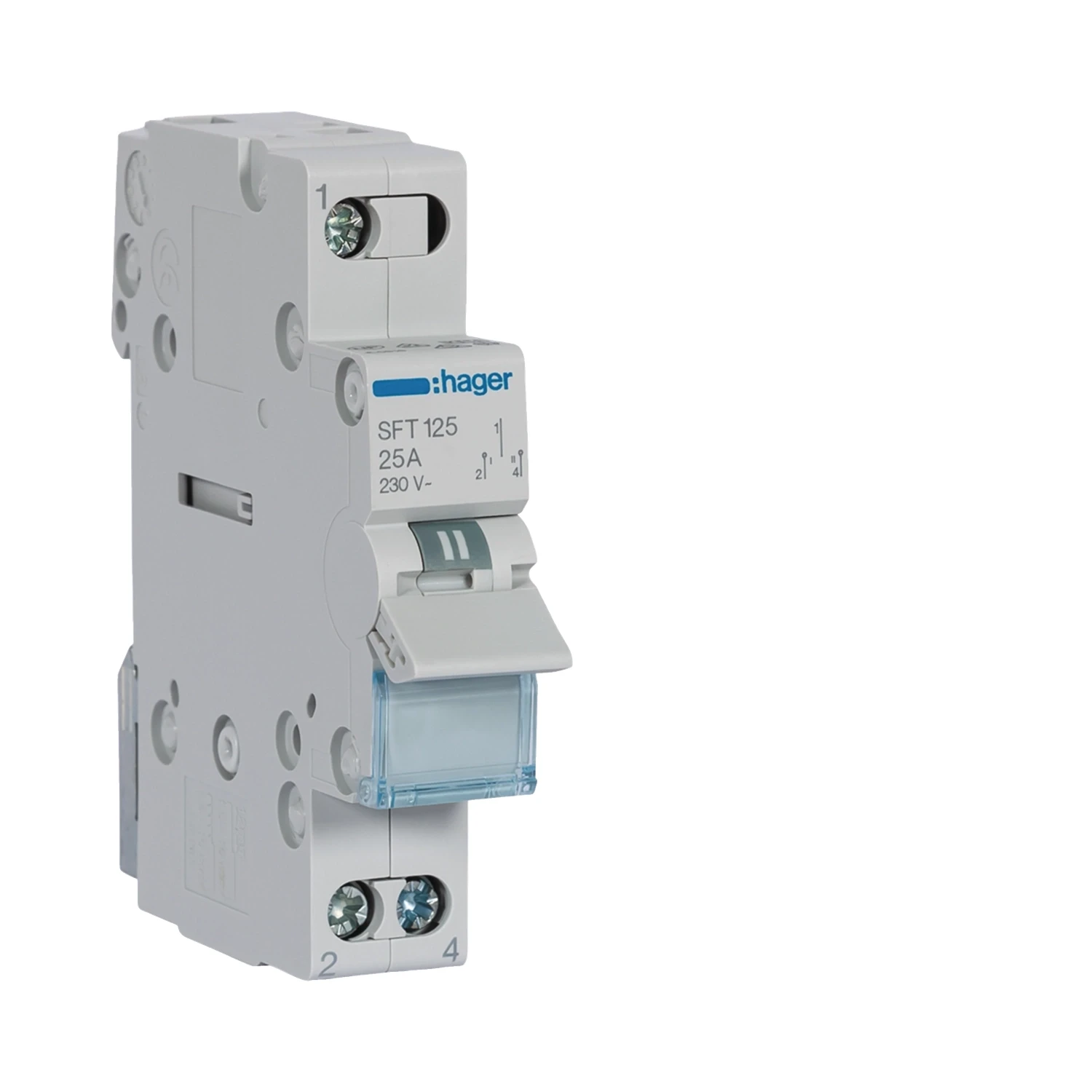

Hager SFT125 1P 25A 230V IP20 Modular Changeover Switch

Photo is representative

Hager SFT125 1P 25A 230V IP20 Modular Changeover Switch

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SFT125
GTIN —
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £15.73

Gross price

£18.88

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

1P modular changeover switch from Hager, rated 25A at 230V AC. Centre-off position, top common point. Single module — fits tight DB layouts. Screw terminals both ends, shifted alignment top and bottom.

  • Ue: 230V AC, In: 25A
  • Ui: 440V, Uimp: 4kV
  • Cable range: 1.5–10mm² flexible, 1.5–16mm² rigid
  • IP20, 1 module wide (17.5mm)
  • Operating temp: -20 to +50°C
Specifications

Poles

1P

Rated Current (In)

25 A

Rated Operational Voltage (Ue)

230 V AC

Rated Insulation Voltage (Ui)

440 V

Rated Impulse Withstand Voltage (Uimp)

4000 V

Frequency

50 - 60 Hz

Rated Conditional Short-Circuit Current (Icc)

0.37 kA

Rated Short-Circuit Making Capacity (Icm) at 240V AC

0.52 kA

Rated Short-Time Withstand Current (Icw) 1s

0.37 kA

Modules

1

Terminal Type

Screw terminal

Cable Range — Flexible

1.5 - 10 mm²

Cable Range — Rigid

1.5 - 16 mm²

Tightening Torque

1.80 Nm

IP Rating

IP20

Operating Temperature

-20 to +50 °C

Dimensions (H x W x D)

83 x 17.5 x 70 mm

Mechanical Durability

200,000 operations

Electrical Durability AC21/AC22

25,000 operating cycles

RoHS

Compliant
