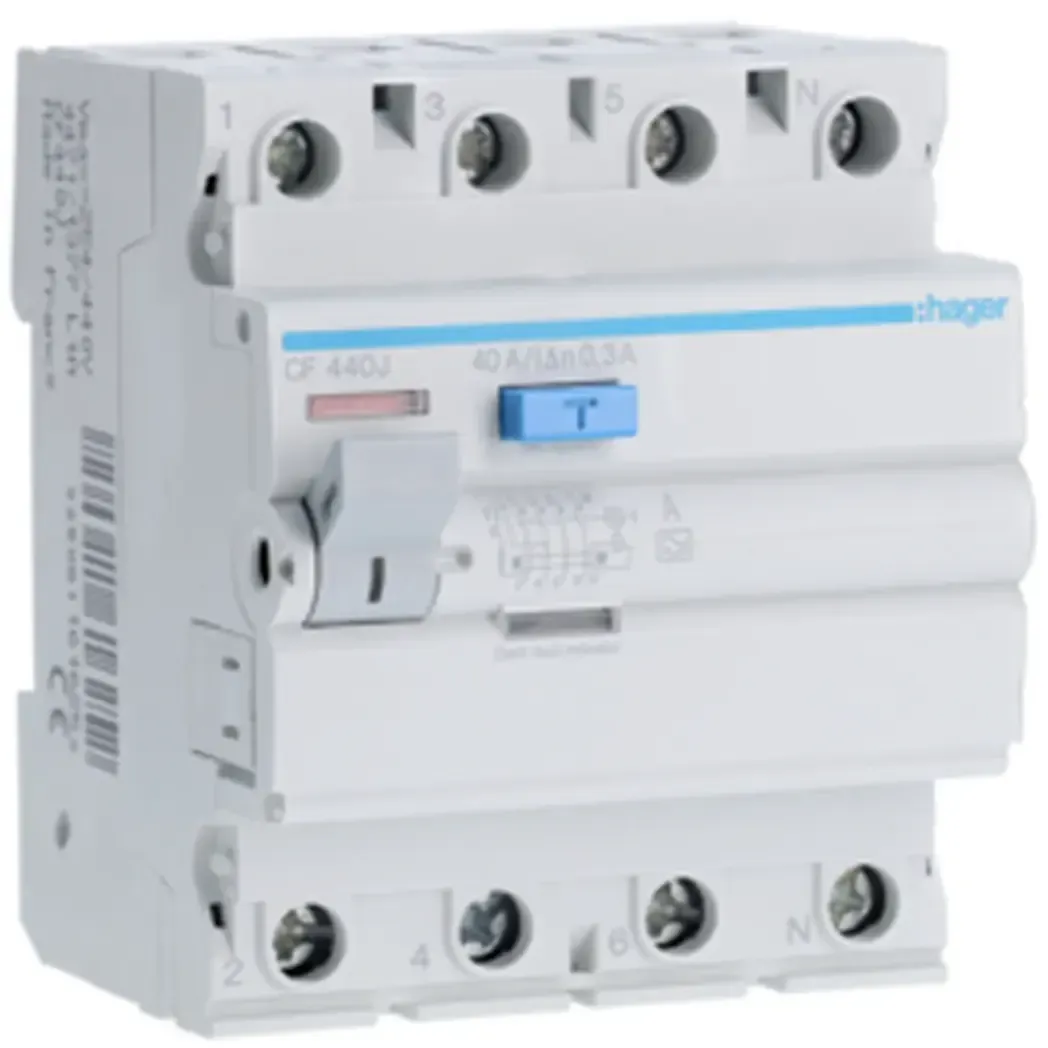

CF440J - Hager RCCB 4P 40A 300mA

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

Hager RCCB 4P 40A 300mA

The Hager RCCB 4P 40A 300mA is a reliable 4-pole residual current circuit breaker with a rated current of 40A and rated residual operating current of 300mA. It offers a breaking and opening capacity of 1.5 kA and is designed for standard installation in electrical panels.

Stock Code CF440J
Few in stock
Price 114.86 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    CF440J

  • Standard

    IEC 61008-1 EN 61008-1

  • Frequency

    50 Hz

  • Rated Current

    40A

  • Number of Poles

    4

  • Neutral Position

    Right

  • Number of Modules

    4

  • Operating Temperature

    -25 to 40 C

  • Residual Current Type

    A

  • Total Power Loss under IN

    8.1 W

  • Depth of Installed Product

    70 mm

  • Residual Current Trip Mode

    Undelayed

  • Width of Installed Product

    70 mm

  • Height of Installed Product

    83 mm

  • Breaking and Opening Capacity

    1.5 kA

  • Rated Residual Operating Current

    300mA

  • Rated Conditional Short-Circuit Current

    6 kA

Brand

Hager
