CE463J - Hager RCCB 4P 63A 100mA A Rated

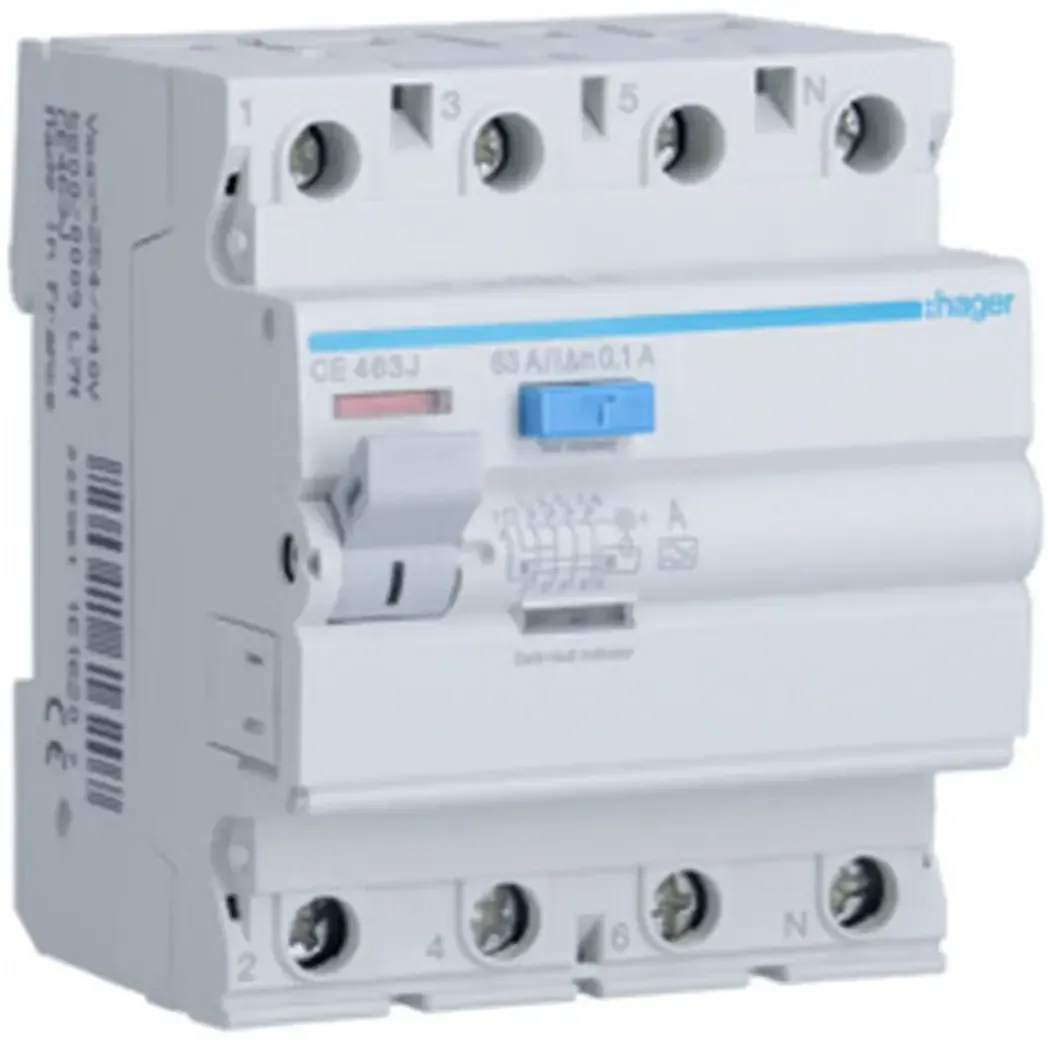

Photo is representative

Hager RCCB 4P 63A 100mA A Rated

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code CE463J
GTIN 3250611616207
Stock status: 5 in stock

priced individually

More arriving soon

Net price: £94.66

Gross price

£113.59

The Hager RCCB 4P 63A 100mA A Rated is a 4 pole residual current circuit breaker with a rated current of 63A and a rated residual operating current of 100mA. It has a breaking and opening capacity of 1.5kA and is designed for undelayed residual current trip mode. This RCCB is suitable for various electrical applications.

Specifications

Standard

IEC 61008-1 EN 61008-1

Frequency

50Hz

Rated Current

63A

Number of Poles

4P

Neutral Position

Right

Number of Modules

4

Operating Temperature

-25-40°C

Residual Current Type

A

Total Power Loss Under IN

19.7W

Depth of Installed Product

70mm

Residual Current Trip Mode

Undelayed

Width of Installed Product

70mm

Height of Installed Product

83mm

Short-Time Delayed Tripping

No

Breaking and Opening Capacity

1.5kA

Rated Residual Operating Current

100mA

Rated Conditional Short-Circuit Current

6kA

Hager
