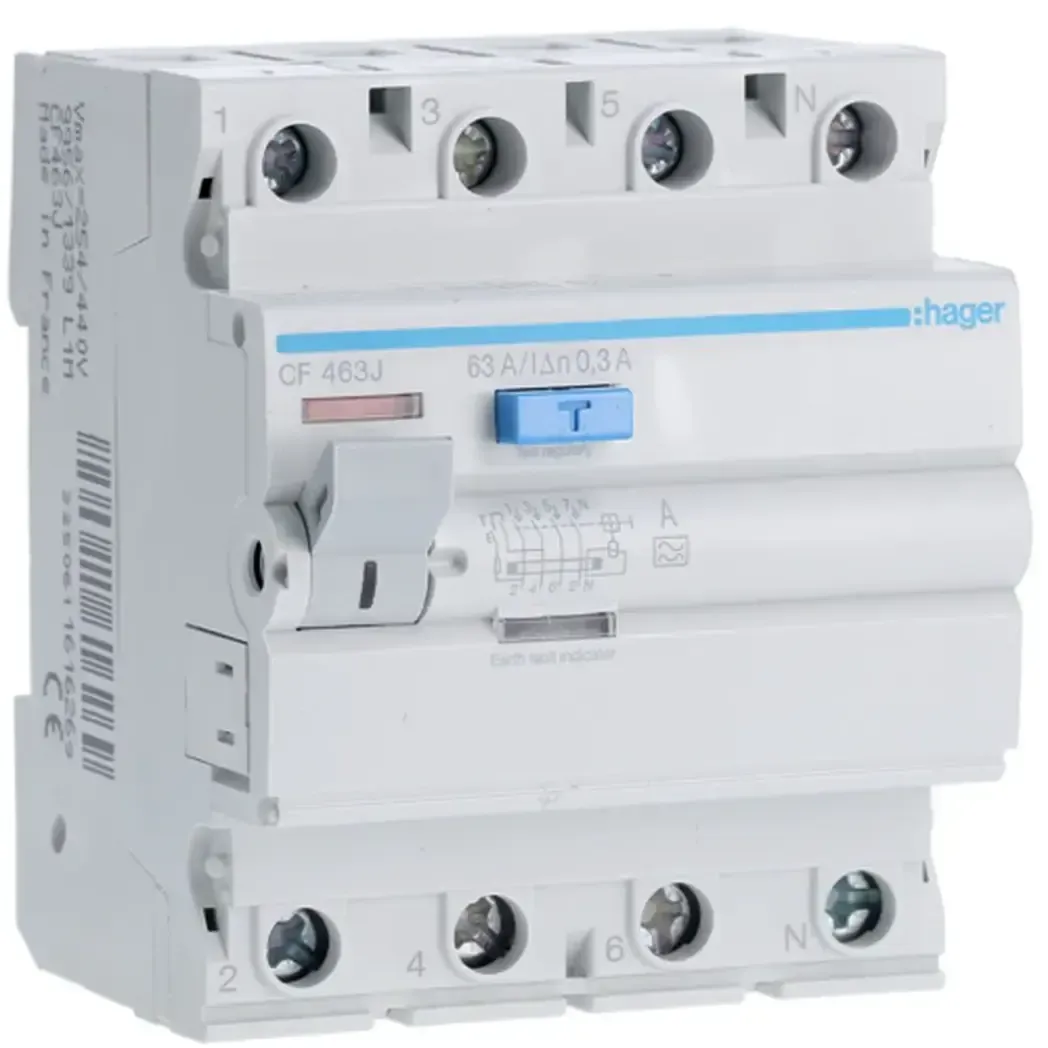

CF463J - Hager RCCB 4P 63A 300mA A Rated

Photo is representative

Hager RCCB 4P 63A 300mA A Rated

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code CF463J
GTIN 3250611616269
Stock status: In stock

priced individually

Net price: £117.10

Gross price

£140.52

The Hager RCCB 4P 63A 300mA A Rated is a reliable residual current circuit breaker designed for electrical safety. With a rated current of 63A and a residual operating current of 300mA, it ensures protection against electrical faults. The neutral position is on the right side with a 4-pole configuration and a compact design of 4 modules. It has a frequency of 50Hz and a breaking capacity of 1.5kA, meeting EN 61008-1 standards. Suitable for installations with a rated conditional short-circuit current of 6kA, it is compactly sized with dimensions of 70mm x 83mm x 70mm.

Specifications

Standard

IEC 61008-1 EN 61008-1

Frequency

50 Hz

Rated Current

63 A

Number of Poles

4 P

Neutral Position

Right

Breaking Capacity

1.5 kA

Number of Modules

4

Operating Temperature

-25 40 C

Residual Current Type

A

Total Power Loss Under IN

19.7 W

Depth of Installed Product

70 mm

Residual Current Trip Mode

Undelayed

Residual Operating Current

300 mA

Width of Installed Product

70 mm

Height of Installed Product

83 mm

Short-time Delayed Tripping

No

Rated Conditional Short-circuit Current

6 kA

Hager
