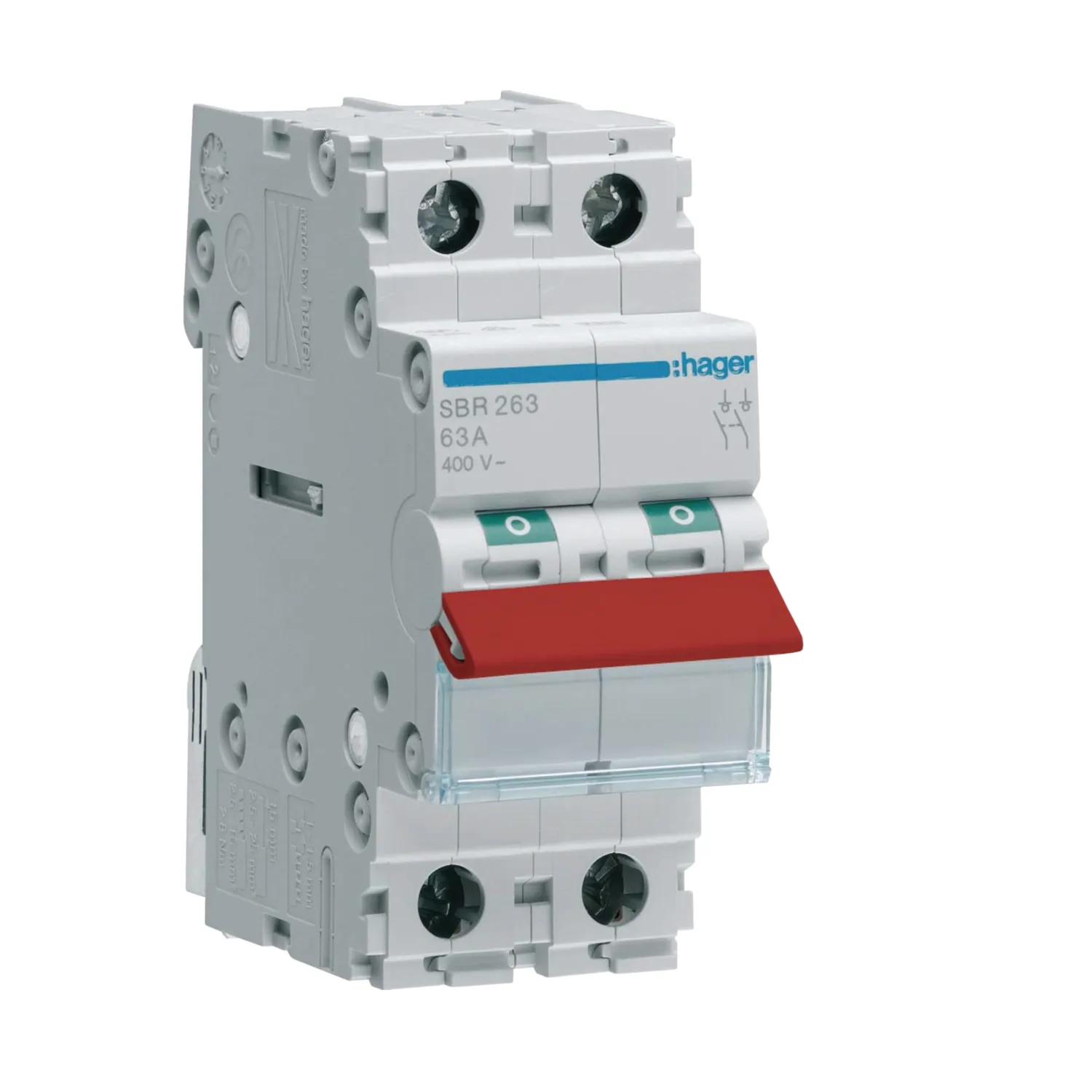

Hager SBR263 63A 2P Isolator Switch Red Toggle - 400V AC

Photo is representative

Hager SBR263 63A 2P Isolator Switch Red Toggle - 400V AC

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SBR263
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £35.93

Gross price

£43.12

Hager SBR263 is a 2-pole modular isolator switch for on/off control in residential, commercial and light industrial boards. Red toggle gives clear visual indication of switch status.

  • 63A rated current at 400V AC
  • 2-module width, DIN rail mount
  • Screw terminals: 2.5–25 mm² rigid, 2.5–16 mm² flexible
  • IP20 enclosure rating
  • 60,000 mechanical endurance cycles
Specifications

Poles

2 (without neutral)

Rated Current

63A

Rated Voltage

400V AC

Insulation Voltage

440V

Frequency

50–60 Hz

Short-Circuit Making Capacity

1.33 kA (415V AC)

Conditional Short-Circuit Current

6000A / 80A gG parallel 32A gG

Mounting Type

DIN rail (35mm)

Module Width

2 modules (35mm)

IP Rating

IP20

Terminal Type

Screw terminal

Cable Range

2.5–25 mm² rigid, 2.5–16 mm² flexible

Operating Temperature

-20°C to +70°C

Mechanical Endurance

60,000 operations
