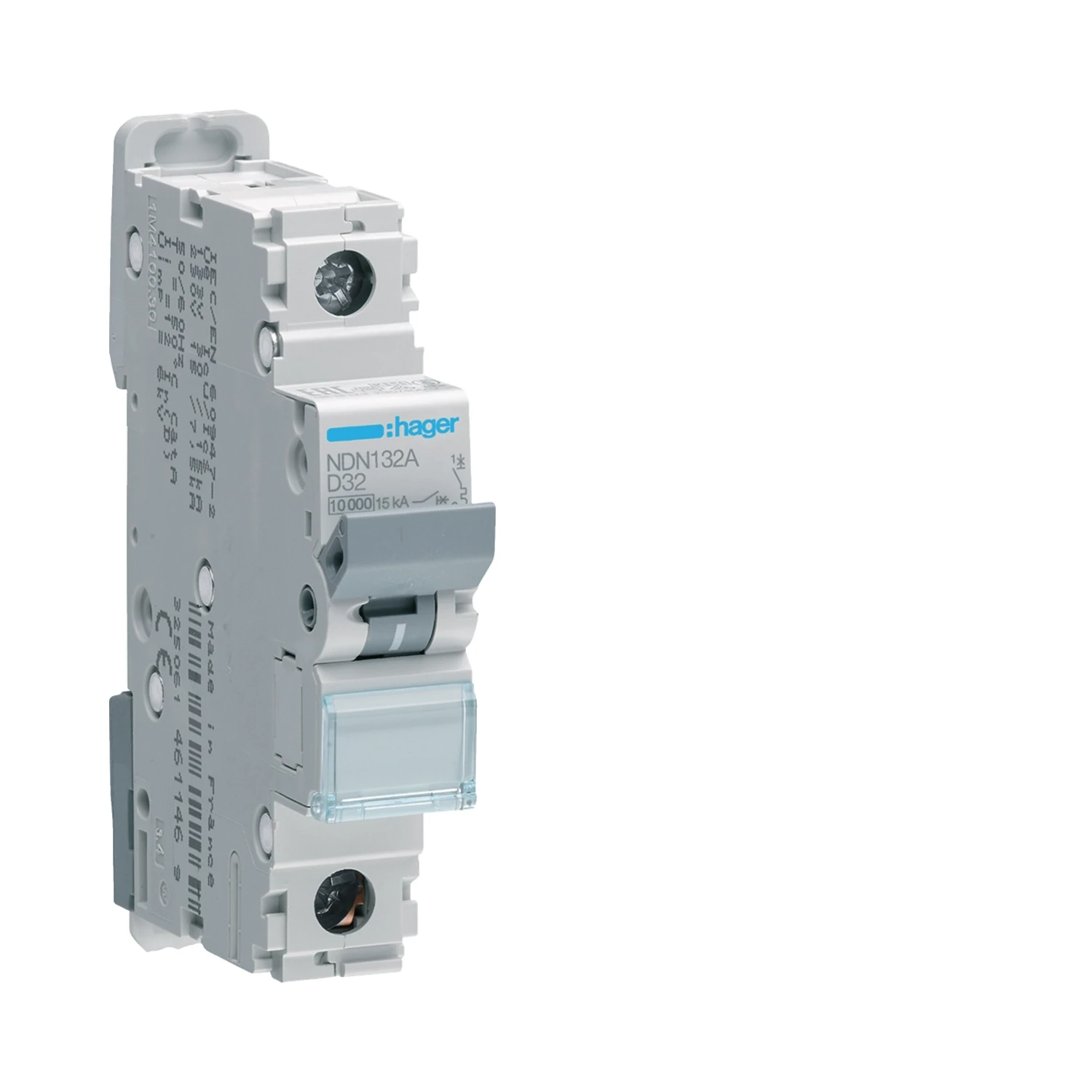

Hager NDN132A SP 32A D Curve 10kA MCB 230-400V 1 Module

Photo is representative

Hager NDN132A SP 32A D Curve 10kA MCB 230-400V 1 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NDN132A
GTIN —
Stock status: In stock

priced individually

Net price: £21.47

Gross price

£25.76

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SP MCB from Hager’s NDN range. 32A D-curve — suited to loads with high inrush currents where B and C curves would nuisance-trip.

Rated 230–400V AC, 10kA Icn / 15kA Icu at 230V. Single 17.5mm module, DIN rail mount. Bottom terminal is biconnect — takes screw or busbar connection without adapters.

  • Breaking capacity: 10kA Icn / 15kA Icu at 230V AC
  • Terminal cable range: 1–35mm² solid, 1–25mm² flexible
  • Operating temp: -25°C to +70°C
  • IP20, Pollution Degree 2
  • 360° mounting position
Specifications

Poles

1P

Rated Current (In)

32 A

Trip Curve

D

Rated Voltage (Ue)

230–400 V AC

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

6000 V

Breaking Capacity (Icn) at 230V AC

10 kA

Breaking Capacity (Icu) at 230V AC

15 kA

Frequency

50–60 Hz

Number of Modules

1

Module Width

17.50 mm

Height

83 mm

Depth

70 mm

IP Rating

IP20

Operating Temperature

-25°C to +70°C

Pollution Degree

2

Top Terminal

Screw terminal

Bottom Terminal

Biconnect

Terminal Tightening Torque

2.80 Nm

Cable Range (Solid)

1–35 mm²

Cable Range (Flexible)

1–25 mm²

360° Mounting

Yes

Mechanical Endurance

20000 operations

Electrical Endurance

4000 cycles

Power Loss at In

3.65 W

Documents

datasheet Hager NDN132A Datasheet
