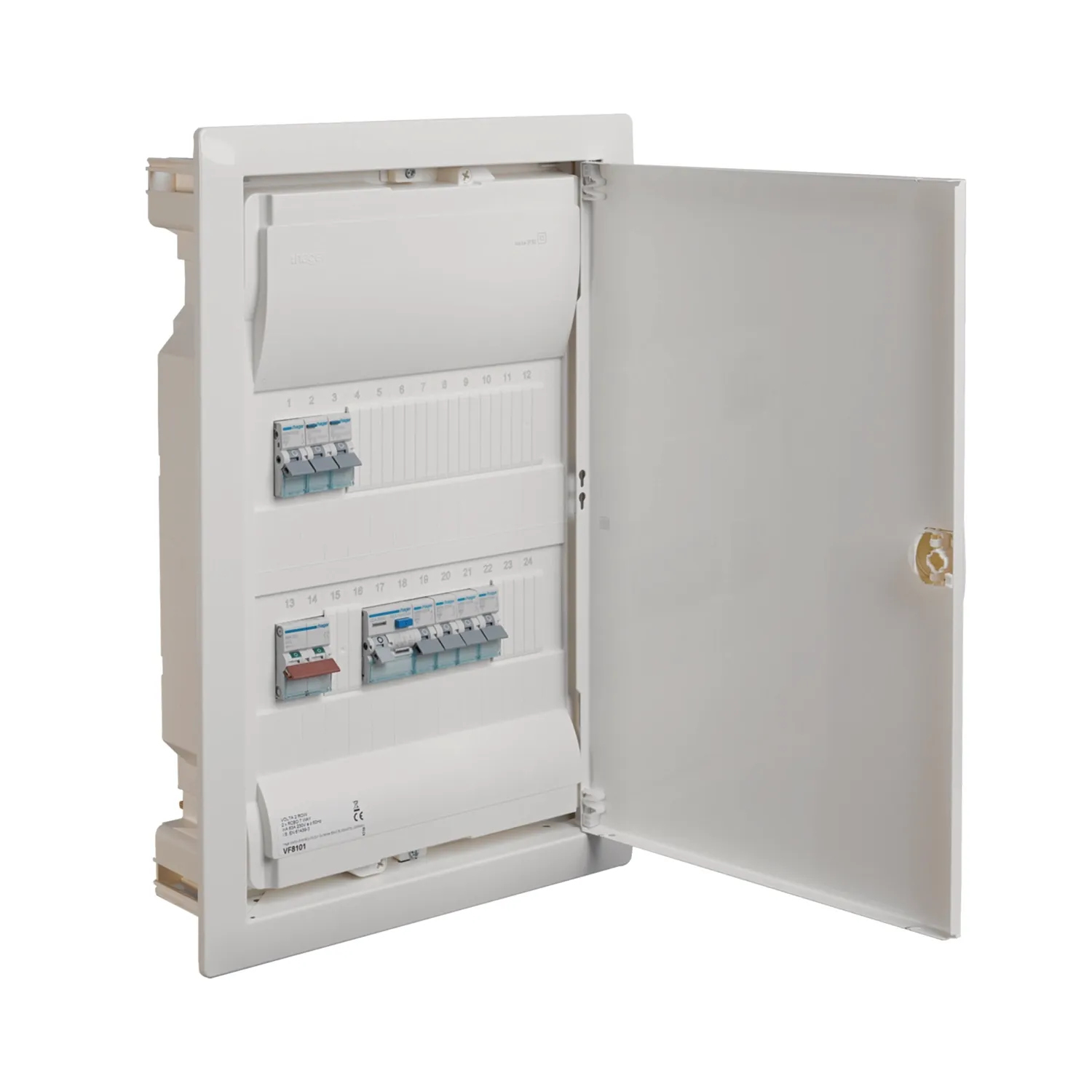

Hager VF8101 63A 2-Row 24-Module Recessed Fuse Board with RCBOs

Photo is representative

Hager VF8101 63A 2-Row 24-Module Recessed Fuse Board with RCBOs

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VF8101
GTIN —
Stock status: 2 in stock

priced individually

More arriving soon

Net price: £250.52

Gross price

£300.63

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager Volta 2-row recessed fuse board for domestic and light commercial installations. Comes complete with 1 RCD and 2×6A lighting RCBOs pre-installed. Rated 63A main with capacity for 24 modules across 2 rows on DIN rails.

  • 400V 1-phase rated
  • IP30 protection, IK07 impact resistance
  • Flush mounting, 505.5mm H × 348mm W × 94.5mm D
  • Neutral and earthing terminal blocks fitted
  • Snap-on door lock, non-transparent cover
Specifications

Voltage

400V AC

Rated Current

63A

Number of Rows

2

Number of Modules

24

Included Protection

1 RCD, 2×6A lighting RCBOs

Height

505.50mm

Width

348mm

Depth

94.50mm

Mounting Type

Flush mounting

IP Rating

IP30

Impact Resistance

IK07

Material

Plastic (RAL 9010 pure white)

Terminal Blocks

Neutral and earthing fitted

Door Lock

Snap-on lock, 0 keyed locks

Documents

datasheet Hager VF8101 Datasheet

Hager Electrical Distribution
