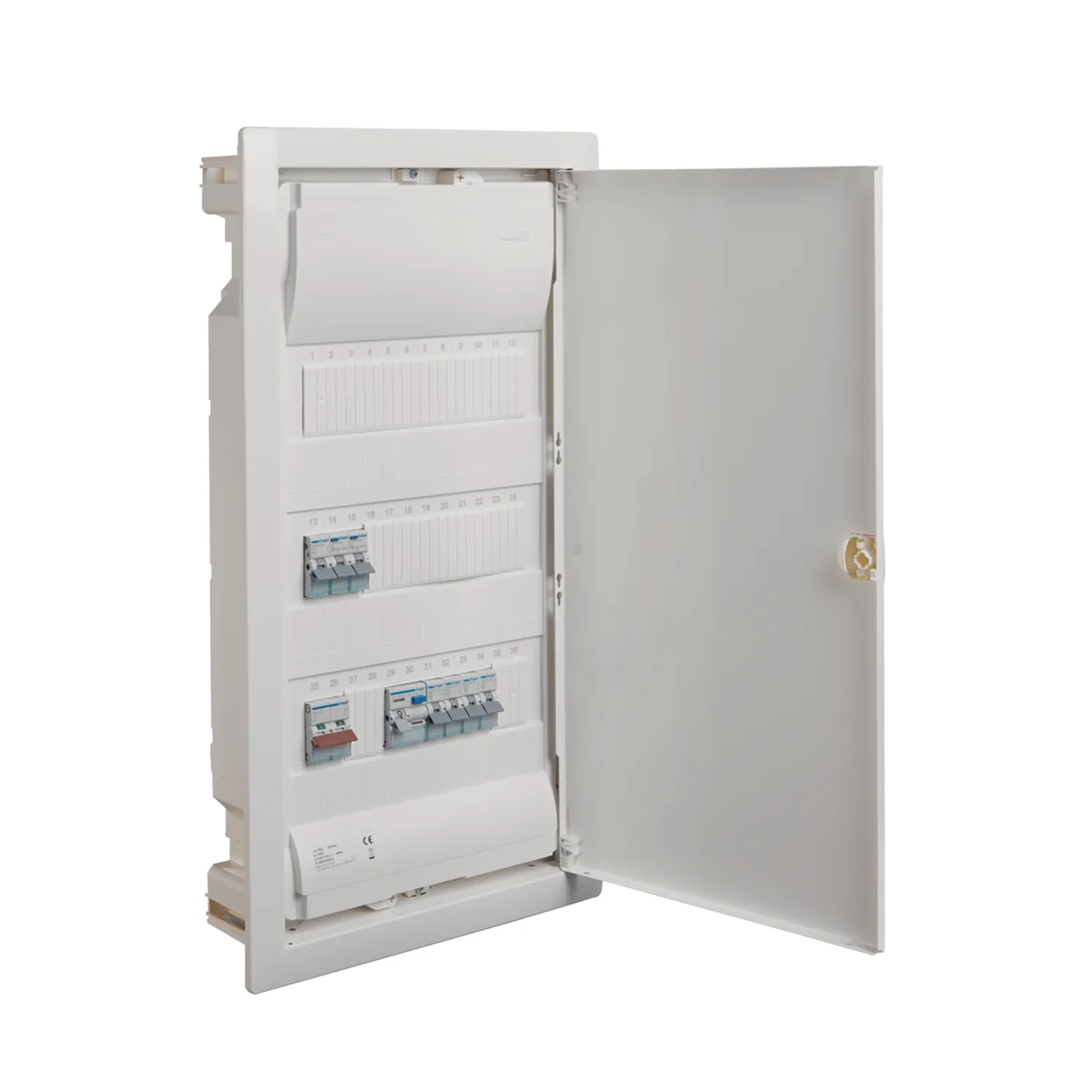

Hager VF9101 Volta 63A 3-Row 36-Module Consumer Unit with RCBOs and RCD

Photo is representative

Hager VF9101 Volta 63A 3-Row 36-Module Consumer Unit with RCBOs and RCD

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VF9101
GTIN
Stock status: Out of stock

priced individually

Net price: £234.73

Gross price

£281.67

Hager Volta 3-row consumer unit, pre-configured and ready to clip into the wall. 63A main isolator with 1 RCD, 2x6A lighting RCBOs, and 5 MCBs already fitted. 36 modules total spread across 3 rows gives you room to add extra circuits.

  • 400V AC, 63A main isolator
  • IP30, IK07 impact resistance
  • 36 modules, 3 rows, flush mount
  • Neutral and earthing terminal blocks included
  • Pure white plastic body, snap-on locking door
Specifications

Voltage

400V AC

Main Isolator Rating

63A

RCD Provision

1 RCD

RCBO Provision

2x 6A lighting RCBOs

MCB Provision

5 MCBs

Total Modules

36

Rows

3

Mounting Type

Flush mount

IP Rating

IP30

Impact Resistance

IK07

Height

630.50 mm

Width

348 mm

Depth

94.50 mm

Material

Plastic, pure white (RAL 9010)
